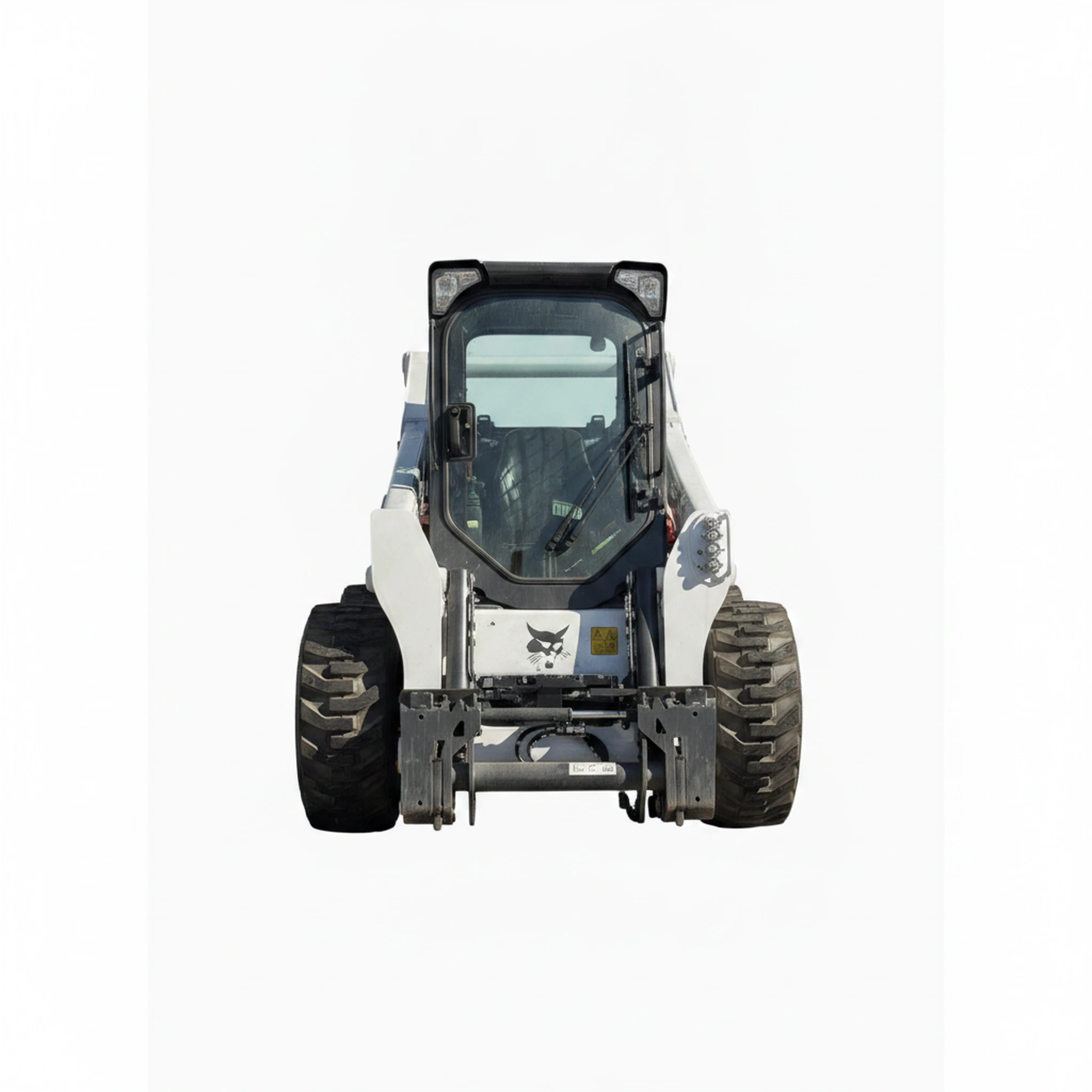

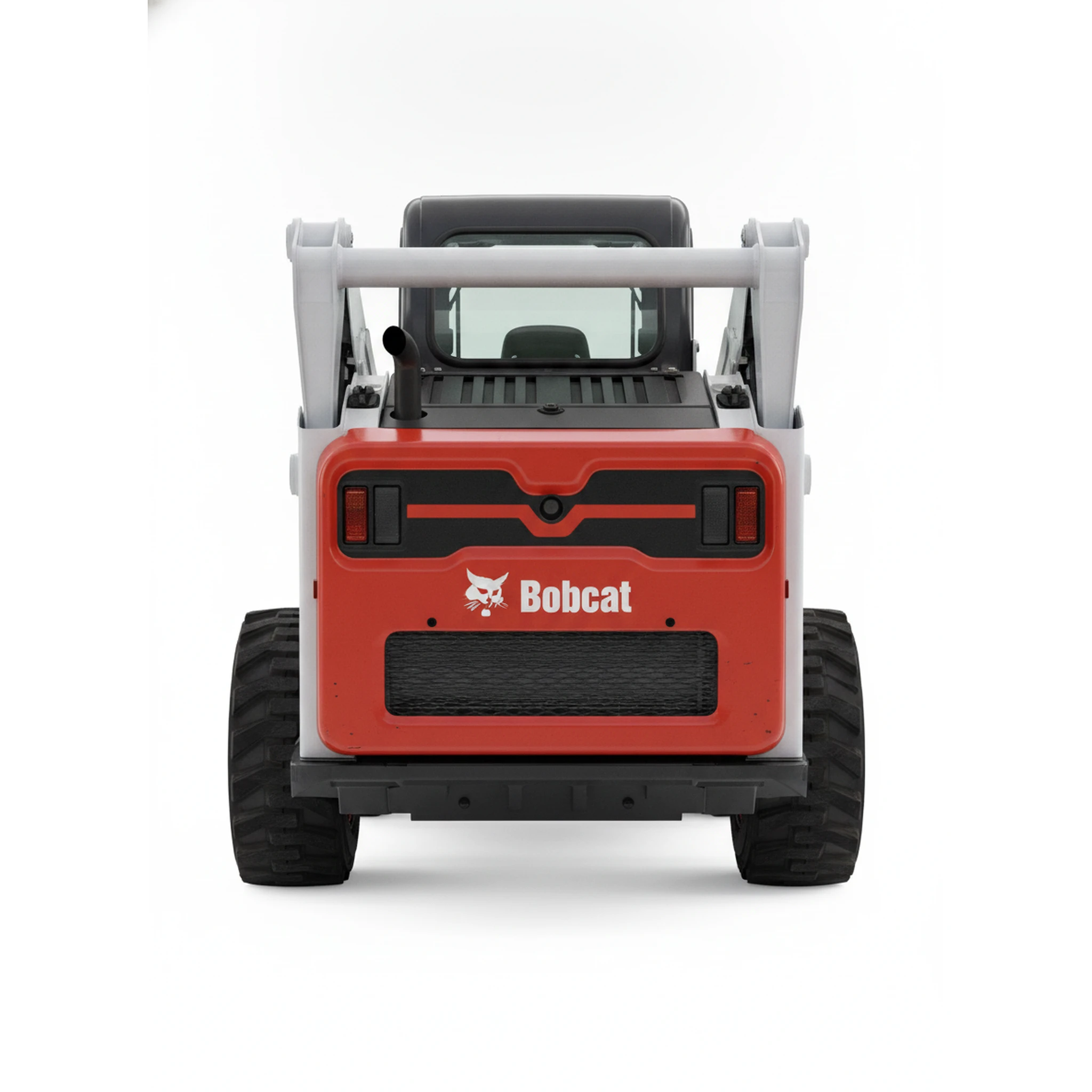

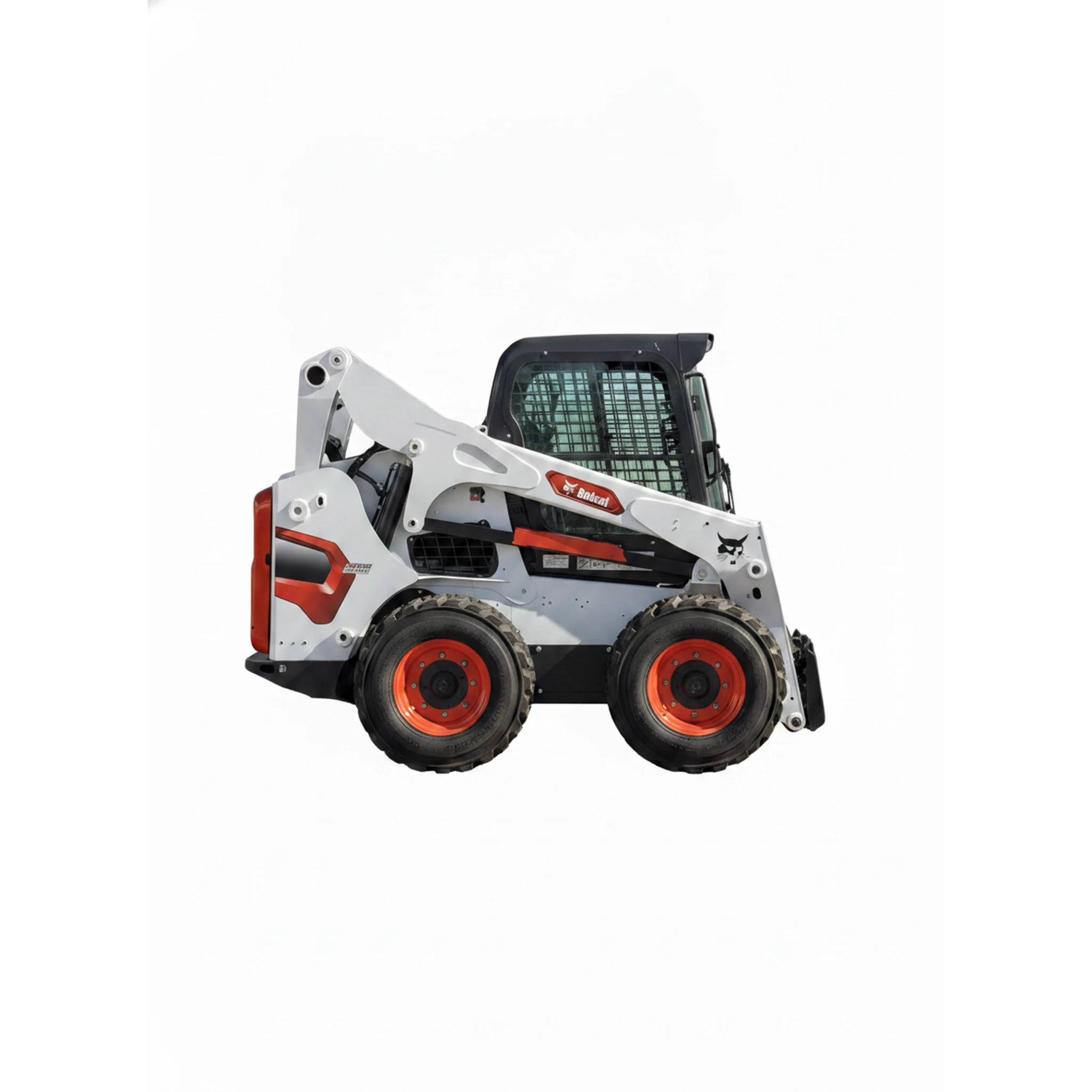

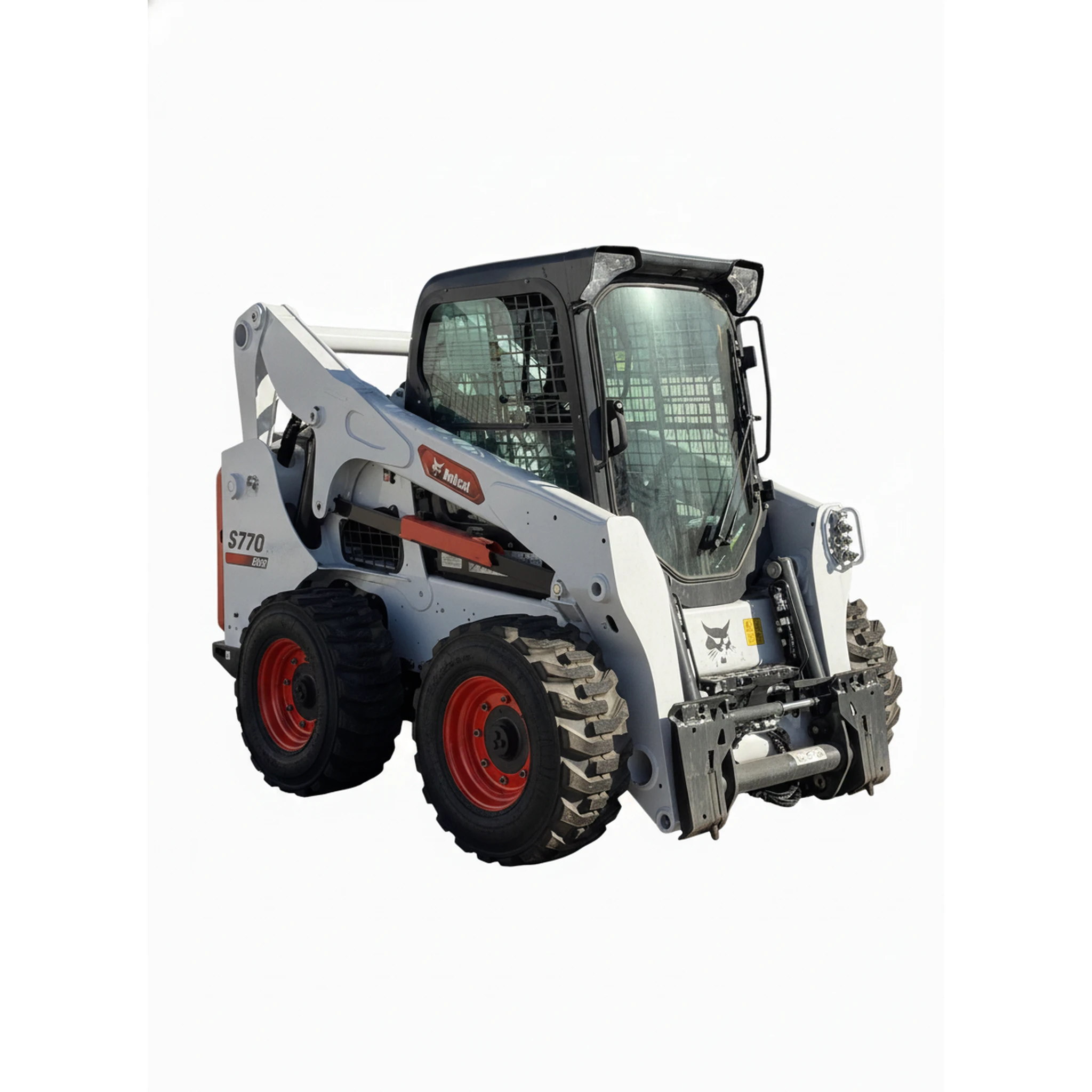

Bobcat
S770
9,315 lb (4,225 kg)
Peso operativo
Documentos
Especificaciones completas
| Bucket Width | 74 in. (1880 mm) | ↗ |
| Cab Height | 81.3 in. (2065 mm) | ↗ |
| Diesel Exhaust Fluid (DEF) | 4.6 gal. (17.4 L) | ↗ |
| Diesel Particulate Filter (DPF) Requirement | No | ↗ |
| Engine | Tier 4 | ↗ |
| Fuel Tank Capacity | 23.9 gal. (90.5 L) | ↗ |
| Height to Hinge Pin | 132 in. (3353 mm) | ↗ |
| Horsepower | 92 hp | ↗ |
| Hydraulic High Flow (optional) | 36.6 gpm (138.5 L/min.) | ↗ |
| Hydraulic Standard Flow | 23.0 gpm (87.1 L/min.) | ↗ |
| Hydraulic System Pressure | 3500 psi (241.3 MPa) | ↗ |
| Lift Arm Path | Vertical | ↗ |
| Loader Series | M2-Series | ↗ |
| Operating Weight | 9314 lb. (4225 kg) | ↗ |
| Rated Operating Capacity (ROC) | 3350 lb. (1520 kg) | ↗ |
| Tipping Load | 6700 lb. (3039 kg) | ↗ |
| Travel Speed – High Range (optional 2-Speed travel) | 12.3 mph (19.8 km/hr.) | ↗ |
| Travel Speed – Low Range | 7.1 mph (11.4 km/hr.) | ↗ |
| Type | Turbo Diesel | ↗ |
Cada valor se rastrea hasta los datos publicados por el fabricante. ↗ abre la fuente.
