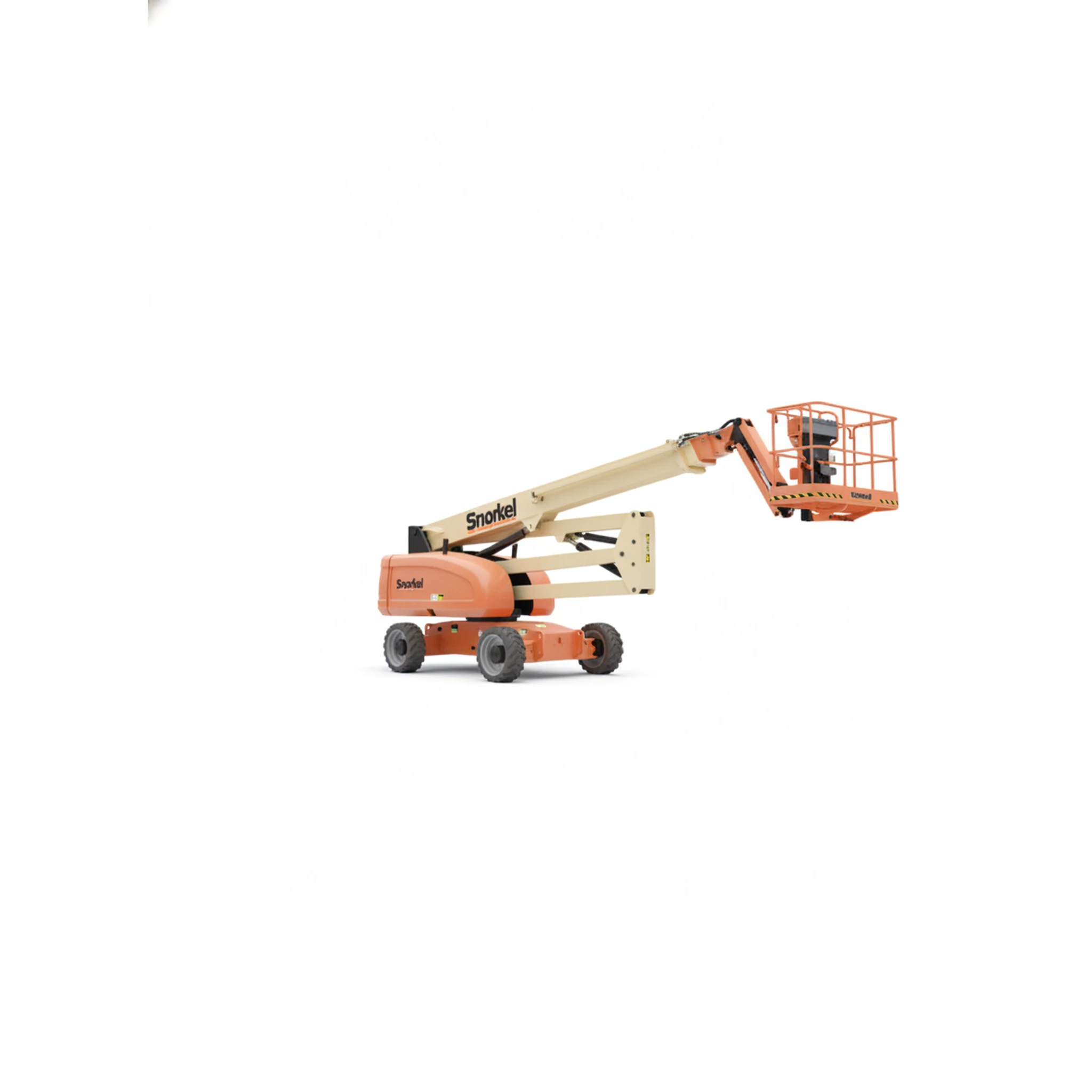

Snorkel
TB120
65 hp
Potencia del motor
62 ft (18.9 m)
Alcance máx
39,500 lb (17,917 kg)
Peso operativo
500 lb (227 kg)
Capacidad de plataforma
4 wheel drive
drive type
30%
gradeability
Equivalentes entre marcas
Comparar lado a lado →Máquinas comparables de otros fabricantes, evaluadas sobre especificaciones normalizadas de los fabricantes.
| Modelo | Coincidencia | Potencia del motor | Alcance máx | Peso operativo |
|---|---|---|---|---|
| Genie S-105 | 92% | 83 hp | - | 40,001 lb (18,144 kg) |
| Genie SX-105 | 92% | 83 hp | - | 40,001 lb (18,144 kg) |
| Genie S-80 XC | 91% | 74 hp | - | 37,000 lb (16,783 kg) |
| Skyjack SJ66 T+ | 91% | 65 hp | 57.1 ft (17.4 m) | 28,903 lb (13,110 kg) |
| Genie S-85 XC | 90% | 74 hp | 74.5 ft (22.7 m) | 39,500 lb (17,917 kg) |
| Haulotte HT28 RTJ O | 90% | 74 hp | - | 39,463 lb (17,900 kg) |
Documentos
Especificaciones completas
| Gradeability | 30% | ↗ |
| Ground clearance | 13 in (33.0 cm) | ↗ |
| Inside turning radius | 19 ft (5.8 m) | ↗ |
| Max. drive height | 120 ft (36.6 m) | ↗ |
| Max. drive speed (elevated) | 0.15 mph | ↗ |
| Max. drive speed (stowed) | 2.9 mph | ↗ |
| Max. horizontal reach | 62 ft (18.9 m) | ↗ |
| Max. platform height | 120 ft (36.6 m) | ↗ |
| Max. wind speed | 28 mph | ↗ |
| Max. working height | 126 ft (38.4 m) | ↗ |
| Outside turning radius | 33 ft (10.1 m) | ↗ |
| Overall length | 42 ft 3 in | ↗ |
| Overall width | 8 ft 6 in | ↗ |
| Overall width (extended) | 12 ft 9 in | ↗ |
| Platform capacity (SWL) | 500 lbs (227 kg) | ↗ |
| Platform rotation | 150° | ↗ |
| Platform size | 8 ft x 3 ft | ↗ |
| Raise / lower time | 208 / 215 seconds | ↗ |
| Stowed height | 9 ft 10 in | ↗ |
| Stowed length | 42 ft 3 in | ↗ |
| Superstructure rotation | 360° continuous | ↗ |
| Tailswing (axles extended) | 54.2 in (138 cm) | ↗ |
| Tailswing (axles retracted) | 80.5 in (204 cm) | ↗ |
| Weight | 39,500 lbs (17,917 kg) | ↗ |
Cada valor se rastrea hasta los datos publicados por el fabricante. ↗ abre la fuente.
