Dragon Products

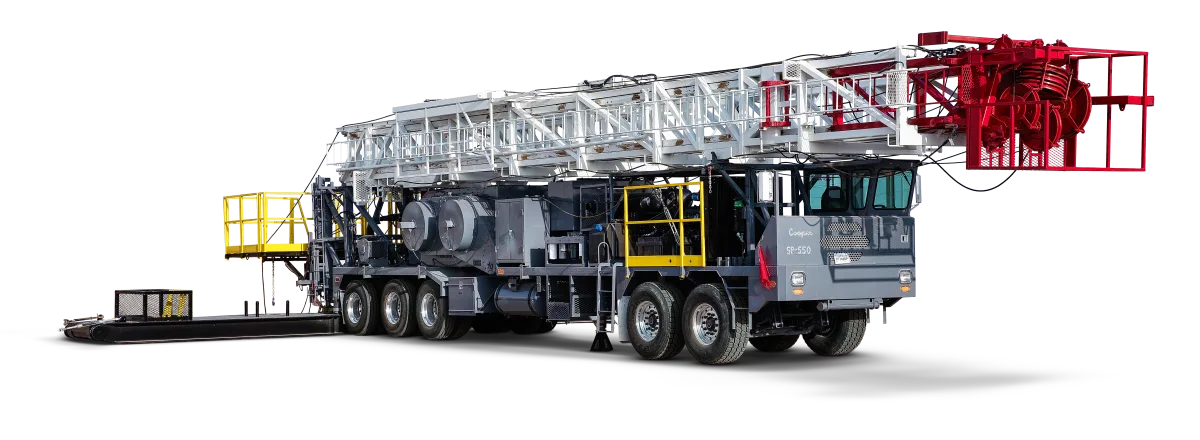

Cooper SP550
Spécifications complètes
| Assist Brake—[three options] | Air cooled disc brake. [shaft mounted] | ↗ |
| Carrier | 5 axle, 2 steer axles, 2 drive axles, one tag axle | ↗ |
| Certification | API 4F, 5th Edition | ↗ |
| Certifications | API 4F | ↗ |
| Clear height | 105' | ↗ |
| Drawworks brake system | Conventional band brakes. | ↗ |
| Drawworks brake system cooling | Open circuit splash or optional water circulating system. | ↗ |
| Drillers console positions | Deck level to 30' | ↗ |
| Engine HP rating | 550 | ↗ |
| Fuel Capacity | 180 gallons | ↗ |
| Main Drum | 42" dia x 12" wide x 1" grooving with PO324 clutch | ↗ |
| Main drum to hydromatic [if equipped] | 100-3 chain | ↗ |
| Mast capacity | 250,000 lbs [8-lines] | ↗ |
| Mast height | 105' | ↗ |
| Maximum travel speed | 55 mph | ↗ |
| Maximum wind rate | 57 knots (66 mph) | ↗ |
| RAD gear box to sand drum | 140-2 chain | ↗ |
| Sand Drum | 42" dia x 8" wide with PO224 clutch | ↗ |
| Sand Drum Capacity | 16,000' of 9/16" cable | ↗ |
| Sand drum to main drum | 140-2 chain | ↗ |
| Service Winch | 12,000 lb capacity | ↗ |
| Specification | Power Flow | ↗ |
| Trans to RAD gear box | 1810 Spicer drive shaft | ↗ |
| Trans to rear drive axles | 1810 Spice drive shaft | ↗ |
| Tubing/rods | Double tubing/triple rods | ↗ |
| Workfloor | Hydraulic fold and unfold. | ↗ |
Chaque valeur est retracée jusqu’aux données publiées par le fabricant. ↗ ouvre la source.
