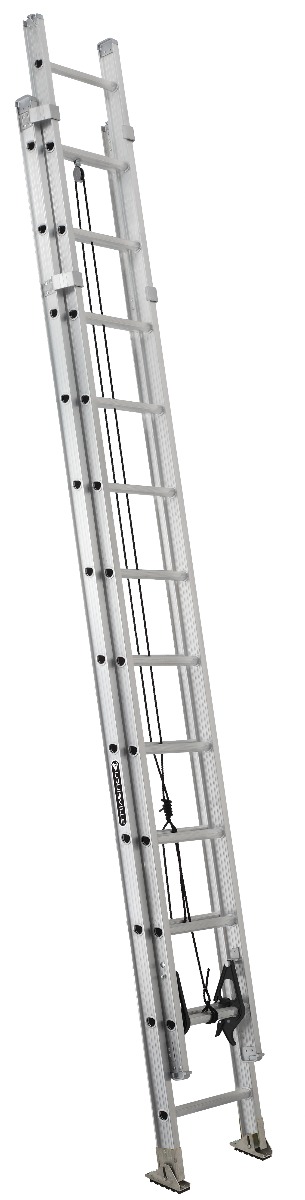

Louisville Ladder
AE1224HD
827 lb (375 kg)
Capacité de charge
21 ft (6.4 m)
Hauteur max
Documents
Spécifications complètes
| Certified | ANSI | ↗ |
| Closed Depth | 6.5 | ↗ |
| Closed Height | 149.5 | ↗ |
| Closed Volume (cu. ft.) | 11.107 | ↗ |
| Closed Width (in) | 19.75 | ↗ |
| Duty Rating | Type IAA | ↗ |
| Inside Width Base (in) | 16.438 | ↗ |
| Inside Width Fly (in) | 14.313 | ↗ |
| Load Capacity (lbs) | 375 | ↗ |
| Material | Aluminum | ↗ |
| Max. Extended Length (ft) | 21 | ↗ |
| Maximum Standing Height (in) | 21’ | ↗ |
| Number of Steps | 24 | ↗ |
| Outside Width Base (in) | 19.063 | ↗ |
| Outside Width Fly (in) | 16.938 | ↗ |
| Rail Depth (in) | 3 | ↗ |
| Rung Type | D-rung | ↗ |
| SKU | AE1224HD | ↗ |
| Section Length (ft) | 12 | ↗ |
| Size | 24 | ↗ |
| Step Depth | 1.5 | ↗ |
| Style | Standard | ↗ |
| Total Length (ft) | 24 | ↗ |
| Weight | 52 | ↗ |
Chaque valeur est retracée jusqu’aux données publiées par le fabricant. ↗ ouvre la source.
