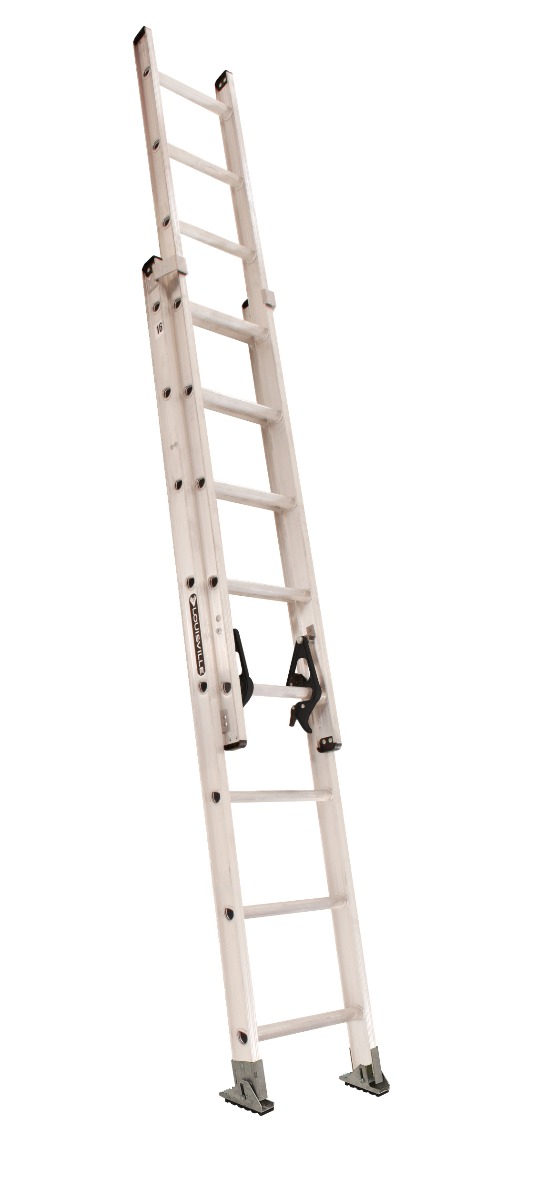

Louisville Ladder
AE2216
661 lb (300 kg)
Capacité de charge
13 ft (4.0 m)
Hauteur max
Documents
Spécifications complètes
| ANSI | Certified | ↗ |
| Certified | OSHA | ↗ |
| Closed Depth | 6.625 | ↗ |
| Closed Height | 100.875 | ↗ |
| Closed Volume (cu. ft.) | 7.517 | ↗ |
| Closed Width (in) | 19.438 | ↗ |
| Duty Rating | Type IA | ↗ |
| Inside Width Base (in) | 15.563 | ↗ |
| Inside Width Fly (in) | 13.063 | ↗ |
| Load Capacity (lbs) | 300 | ↗ |
| Material | Aluminum | ↗ |
| Max. Extended Length (ft) | 13 | ↗ |
| Maximum Standing Height (in) | 13’ | ↗ |
| Number of Steps | 16 | ↗ |
| Outside Width Base (in) | 17.813 | ↗ |
| Outside Width Fly (in) | 15.313 | ↗ |
| Rail Depth (in) | 3 | ↗ |
| Rung Type | D-rung | ↗ |
| SKU | AE2216 | ↗ |
| Section Length (ft) | 8 | ↗ |
| Size | 16 | ↗ |
| Step Depth | 1.5 | ↗ |
| Style | Standard | ↗ |
| Total Length (ft) | 16 | ↗ |
| Weight | 30 | ↗ |
Chaque valeur est retracée jusqu’aux données publiées par le fabricant. ↗ ouvre la source.
