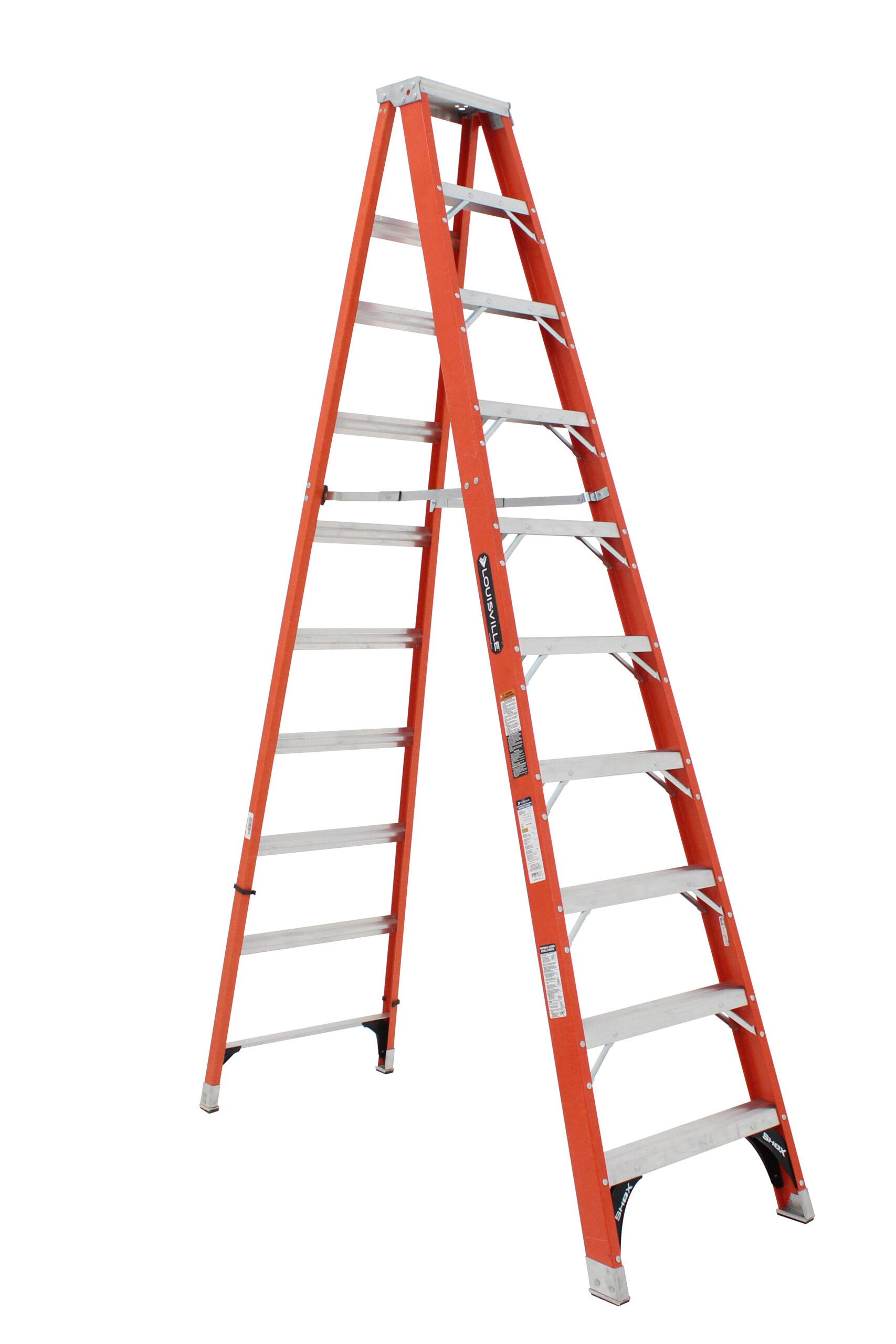

Louisville Ladder
FS1310HD
827 lb (375 kg)
Capacité de charge
10 ft (3.0 m)
Hauteur max
Documents
Spécifications complètes
| ANSI | Certified | ↗ |
| Certified | OSHA | ↗ |
| Closed Depth | 7 | ↗ |
| Closed Height | 121.7 | ↗ |
| Closed Volume (cu. ft.) | 13.368 | ↗ |
| Closed Width (in) | 28.4 | ↗ |
| Duty Rating | Type IAA | ↗ |
| Load Capacity (lbs) | 375 | ↗ |
| Material | Fiberglass | ↗ |
| Maximum Reach (in) | 170 | ↗ |
| Maximum Standing Height (in) | 91 | ↗ |
| Number of Steps | 9 | ↗ |
| Open Depth (in) | 64.79 | ↗ |
| Open Height (in) | 113.892 | ↗ |
| Open Volume (cu. ft.) | 9.84 | ↗ |
| Open Volume (cu. m.) | 3.43 | ↗ |
| Open Width (in) | 28.375 | ↗ |
| Rung Type | Standard Step | ↗ |
| SKU | FS1310HD | ↗ |
| Size | 10 | ↗ |
| Step Depth | 3 | ↗ |
| Style | Standard | ↗ |
| Top Width Closed (in) | 13.4 | ↗ |
| Weight | 40 | ↗ |
Chaque valeur est retracée jusqu’aux données publiées par le fabricant. ↗ ouvre la source.
