Catalog / Storage Containers, Site Support, and Mobile Offices / Storage Containers / Storage Container
Seacube

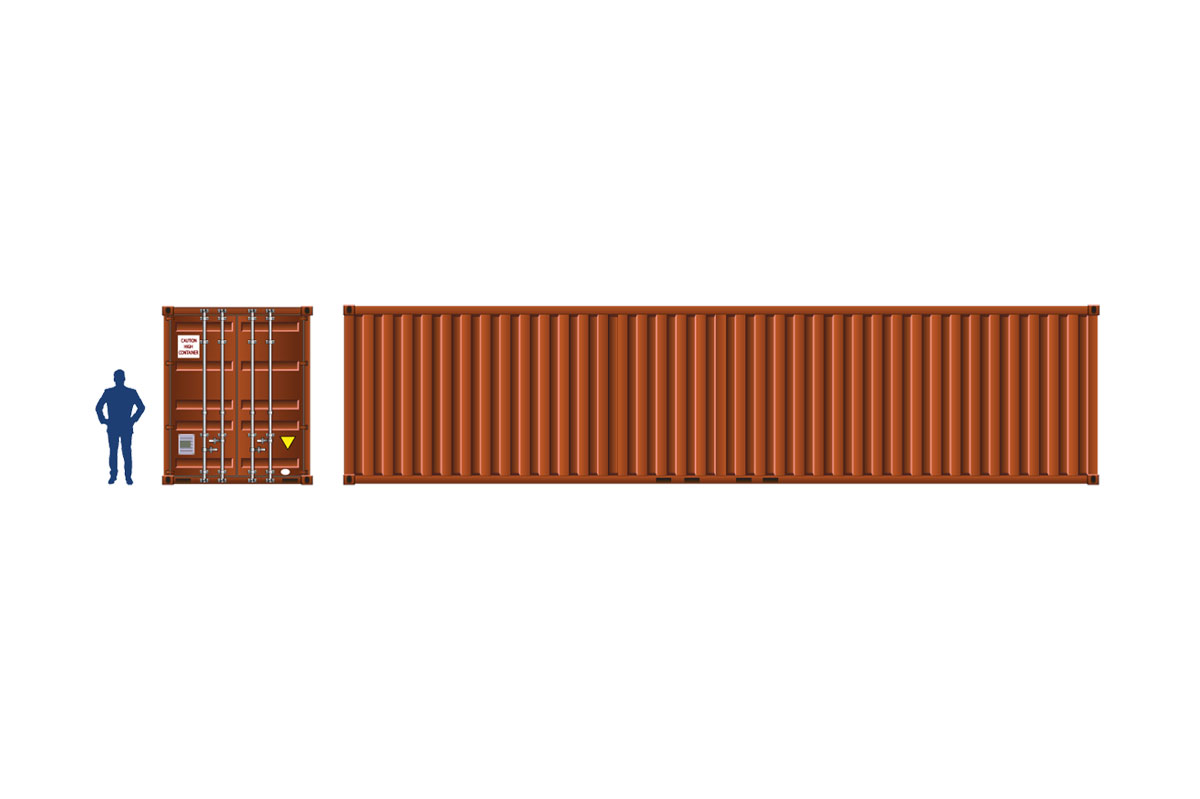

40 Foot High Cube Dry
40 ft (12.2 m)
Hauteur max
Documents
Spécifications complètes
| Cubic Capacity | 76.4 m³ | ↗ |
| Door Opening Height | 102 in (2,585 mm) | ↗ |
| Door Opening Width | 92.1 in (2,340 mm) | ↗ |
| External Height | 114 in (2,896 mm) | ↗ |
| External Length | 480 in (12,192 mm) | ↗ |
| External Width | 96.0 in (2,438 mm) | ↗ |
| Gooseneck Tunnel Center Distance | 131 in (3,315 mm) | ↗ |
| Gooseneck Tunnel Height | 4.7 in (120 mm) | ↗ |
| Gooseneck Tunnel Width | 40.5 in (1,029 mm) | ↗ |
| Internal Height | 106 in (2,698 mm) | ↗ |
| Internal Length | 474 in (12,032 mm) | ↗ |
| Internal Width | 92.6 in (2,352 mm) | ↗ |
| Maximum Gross Weight (MGW) | 71,650 lb (32,500 kg) | ↗ |
| Payload Capacity | 63,383 lb (28,750 kg) | ↗ |
| Tare Weight | 8,267 lb (3,750 kg) | ↗ |
Chaque valeur est retracée jusqu’aux données publiées par le fabricant. ↗ ouvre la source.
