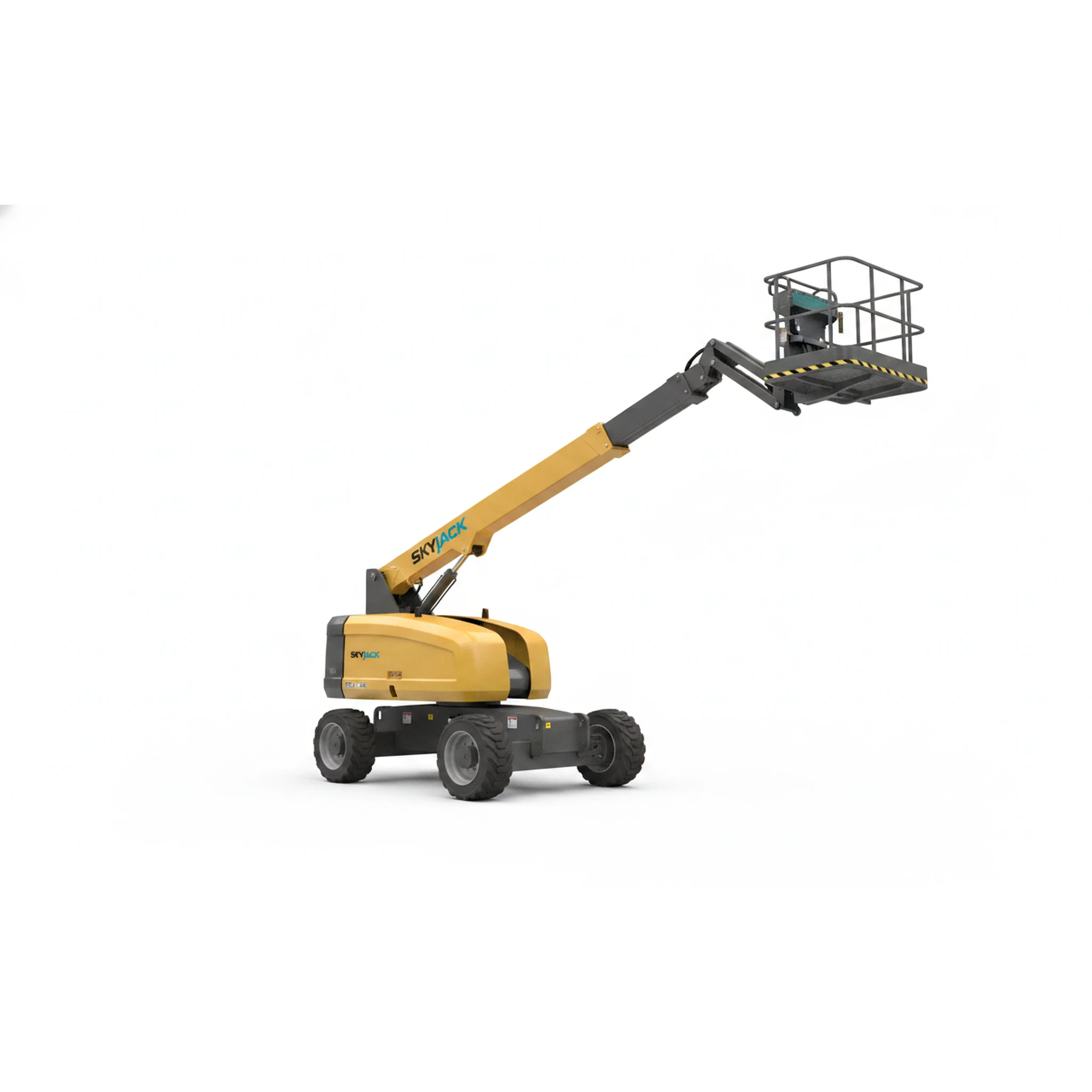

Skyjack
SJ85 AJ
74 hp
Puissance moteur
56 ft (17.1 m)
Portée max
37,401 lb (16,965 kg)
Poids en service
91.6 ft (27.9 m)
Hauteur de travail
4 x4
drive type
115 l
fuel tank capacity
Équivalents entre marques
Comparer côte à côte →Machines comparables d’autres fabricants, évaluées sur des spécifications normalisées provenant des fabricants.
| Modèle | Correspondance | Puissance moteur | Portée max | Poids en service |
|---|---|---|---|---|
| Dingli BA28RT | 95% | 74 hp | 61.7 ft (18.8 m) | 40,345 lb (18,300 kg) |
| Genie ALC-1000 | 95% | 74 hp | 60 ft (18.3 m) | 35,900 lb (16,284 kg) |
| Dingli BA28HRT | 94% | - | 63.6 ft (19.4 m) | 40,565 lb (18,400 kg) |
| Genie Z-80/60 Articulated Boom Lift | 94% | 78 hp | 60 ft (18.3 m) | 35,900 lb (16,284 kg) |
| Genie Z-80 | 94% | 74 hp | 60 ft (18.3 m) | 35,924 lb (16,295 kg) |
| Genie Z8060 | 94% | 74 hp | 60 ft (18.3 m) | 35,924 lb (16,295 kg) |
Documents
Spécifications complètes
| Capacity | 500 / 750 lbs | ↗ |
| Diesel Engine | 74 HP | ↗ |
| Drive Speed (High speed) | 3 mph | ↗ |
| Dual Fuel Engine | 87 HP | ↗ |
| Fuel Tank | 30.4 gal. | ↗ |
| Gradeability | 45 % | ↗ |
| Horizontal Reach | 56' ft | ↗ |
| Hydraulic Reservoir | 45 gal. | ↗ |
| Jib Range | +65° / -60° | ↗ |
| Local Floor Load (With Rated Load) | 171 psi | ↗ |
| Maximum # of Persons | 2 / 3 | ↗ |
| Overall Floor Load (With Rated Load) | 355 psf | ↗ |
| Platform Height | 85' ft | ↗ |
| Platform Rotation | 170 ° | ↗ |
| Rotation | 360 ° | ↗ |
| Stowed Height | 8' 9" ft | ↗ |
| Tailswing | 2' 10" ft | ↗ |
| Tire Size | 18-625 | ↗ |
| Tire Type | Grip lug foam-filled | ↗ |
| Transportation Height | 8' 9" ft | ↗ |
| Transportation Length | 32.9 ft (10.0 m) | ↗ |
| Up and Over Height | 34' ft | ↗ |
| Weight | 37,400 lbs (16,964 kg) | ↗ |
| Work Height | 91' ft | ↗ |
Chaque valeur est retracée jusqu’aux données publiées par le fabricant. ↗ ouvre la source.
