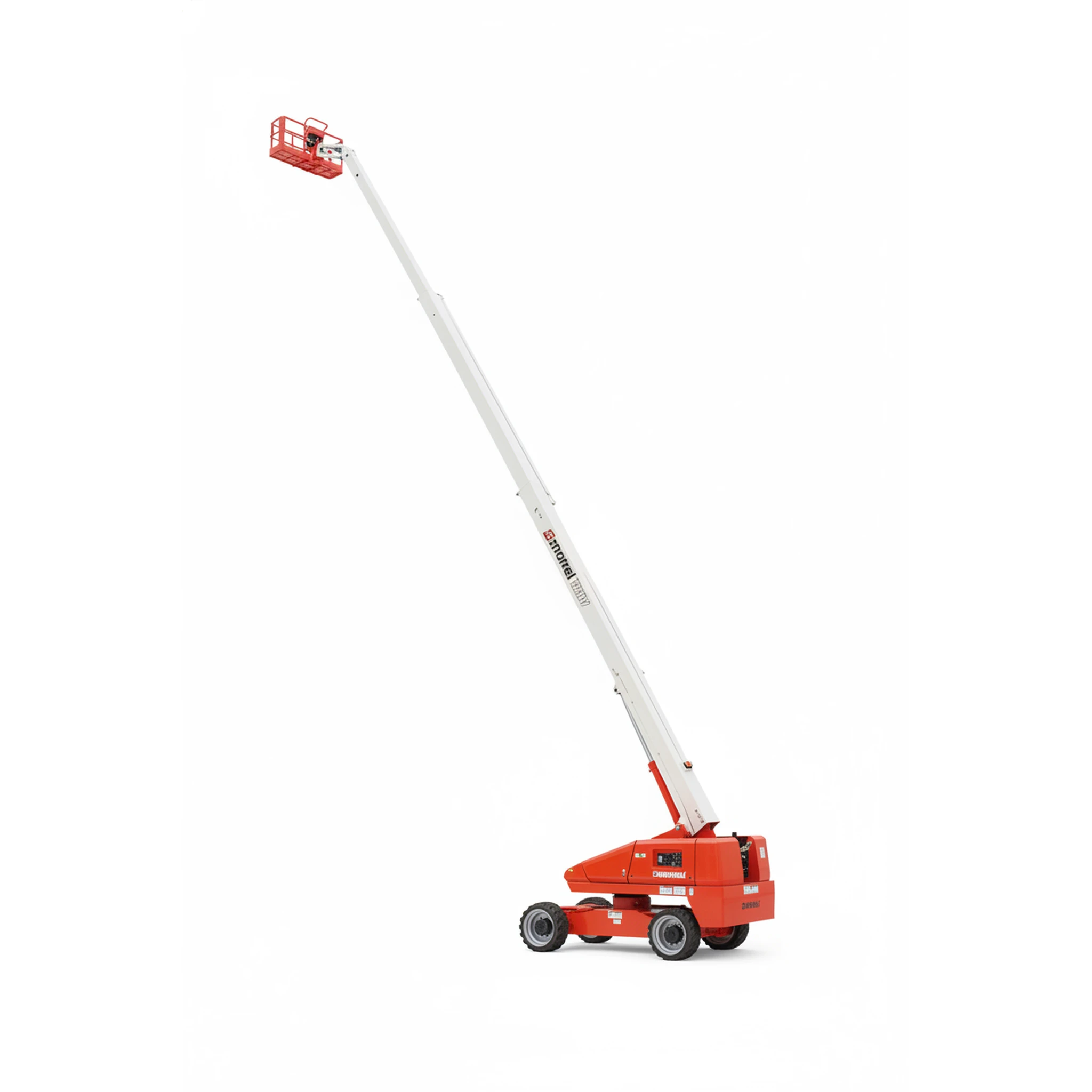

Snorkel
TB80
64 hp
Puissance moteur
71.2 ft (21.7 m)
Portée max
36,332 lb (16,480 kg)
Poids en service
86.6 ft (26.4 m)
Hauteur de travail
4 wheel drive
drive type
500 lb (227 kg)
lift capacity
Équivalents entre marques
Comparer côte à côte →Machines comparables d’autres fabricants, évaluées sur des spécifications normalisées provenant des fabricants.
| Modèle | Correspondance | Puissance moteur | Portée max | Poids en service |
|---|---|---|---|---|
| JLG 800S | 97% | 62 hp | - | 34,738 lb (15,757 kg) |
| Genie S-80-HF | 94% | 58 hp | 68.5 ft (20.9 m) | 35,501 lb (16,103 kg) |
| Skyjack SJ86 | 94% | 74 hp | - | 38,691 lb (17,550 kg) |
| Haulotte HT28 RTJ O | 93% | 74 hp | - | 39,463 lb (17,900 kg) |
| Haulotte HT28 RTJ PRO | 93% | 74 hp | 78.2 ft (23.8 m) | 39,904 lb (18,100 kg) |
| Genie S-85-HF | 93% | - | 72.5 ft (22.1 m) | 38,001 lb (17,237 kg) |
Documents
Spécifications complètes
| Drive system | 4-wheel drive | ↗ |
| Gradeability | 40% | ↗ |
| Ground clearance | 13 in (33.0 cm) | ↗ |
| Inside turning radius | 7 ft 10 in | ↗ |
| Max. drive height | 80 ft (24.4 m) | ↗ |
| Max. drive speed (elevated) | 0.6 mph | ↗ |
| Max. drive speed (stowed) | 3.0 mph | ↗ |
| Max. horizontal reach | 71 ft 2 in | ↗ |
| Max. platform height | 80 ft (24.4 m) | ↗ |
| Max. wind speed | 28 mph | ↗ |
| Max. working height | 86 ft (26.2 m) | ↗ |
| Outside turning radius | 15 ft 6 in | ↗ |
| Overall length | 38 ft 8 in | ↗ |
| Overall width | 8 ft 6 in | ↗ |
| Platform rotation | 170° | ↗ |
| Platform size | 8 ft x 3 ft | ↗ |
| Raise / lower time | 70/65 sec | ↗ |
| Stowed height | 9 ft 6 in | ↗ |
| Superstructure rotation | 360° continuous | ↗ |
| Tailswing | 78.5 in (199 cm) | ↗ |
| Tires | 15 x 625 foam-filled | ↗ |
| Weight | 36,332 lbs (16,480 kg) | ↗ |
Chaque valeur est retracée jusqu’aux données publiées par le fabricant. ↗ ouvre la source.
