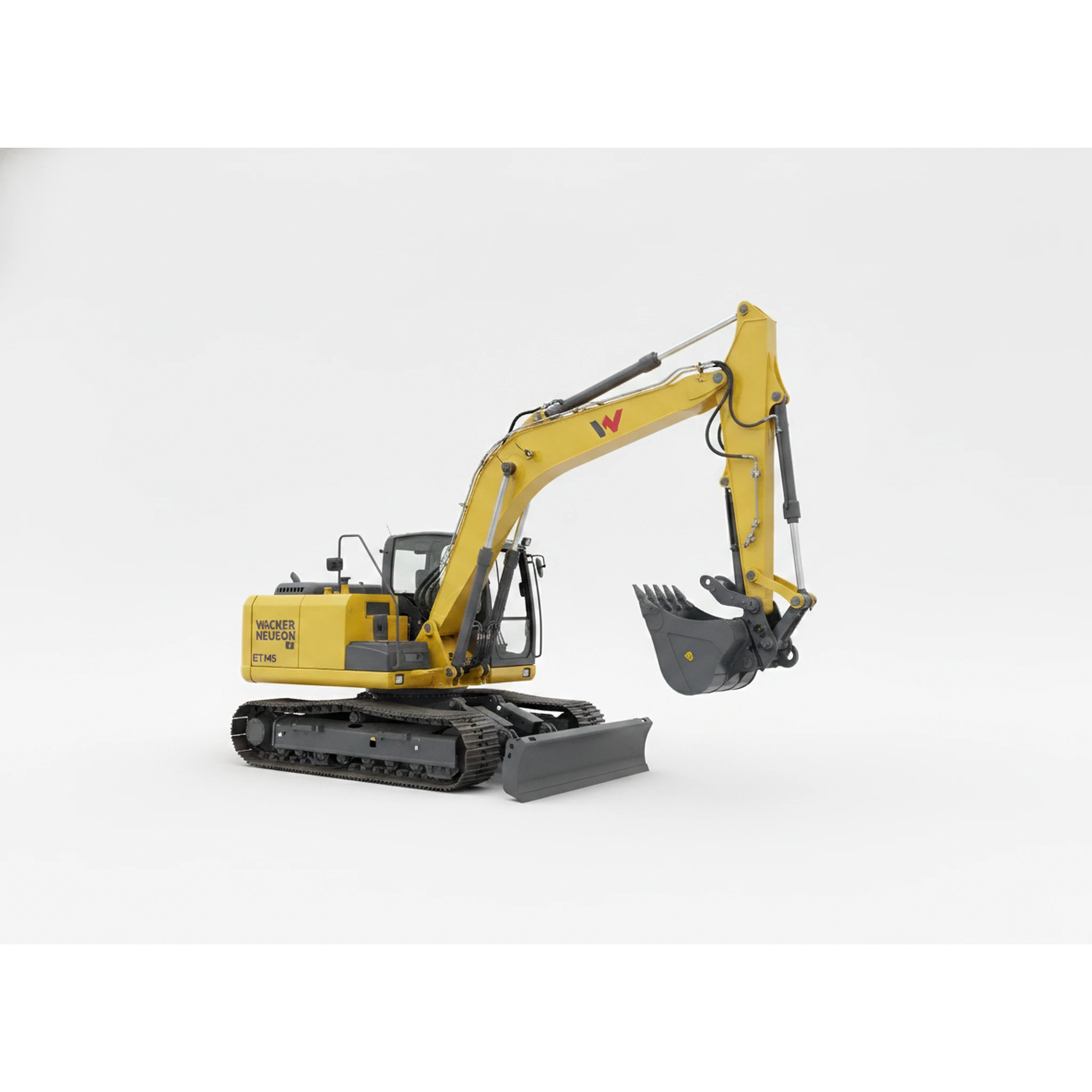

Wacker Neuson
ET145
17.9 ft (5.5 m)
Profondeur d’excavation max
38,085 lb (17,275 kg)
Poids en service
Équivalents entre marques
Comparer côte à côte →Machines comparables d’autres fabricants, évaluées sur des spécifications normalisées provenant des fabricants.
| Modèle | Correspondance | Profondeur d’excavation max | Poids en service |
|---|---|---|---|
| Volvo ECR145 | 98% | 18 ft (5.5 m) | 36,811 lb (16,697 kg) |
| Volvo ECR145E | 98% | 18 ft (5.5 m) | 36,791 lb (16,688 kg) |
| Kobelco ED160BR-7 Blade Runner | 96% | 19 ft (5.8 m) | 37,000 lb (16,783 kg) |
| Volvo EC140E | 96% | 18 ft (5.5 m) | 35,620 lb (16,157 kg) |
| Develon DX170LC-7 | 94% | 20.2 ft (6.2 m) | 38,360 lb (17,400 kg) |
| Hitachi ZX135US-7B | 94% | 19.6 ft (6.0 m) | 36,597 lb (16,600 kg) |
Documents
Spécifications complètes
| Battery capacity | 120 Ah | ↗ |
| Break Out Force Lift Arm | 69 kN | ↗ |
| Breakout force | 91 kN | ↗ |
| Cylinder | 4 Cylinder | ↗ |
| Cylinder capacity | 3,621 cm³ | ↗ |
| Digging depth | 214 in (5,442 mm) | ↗ |
| Effective power | 55 KW | ↗ |
| Engine Designation | 904J-E36TA | ↗ |
| Engine Manufacturer | Perkins | ↗ |
| Engine type | Diesel engine | ↗ |
| Flow rate max. | 305 l/min | ↗ |
| Height | 110 in (2,786 mm) | ↗ |
| Length | 307 in (7,788 mm) | ↗ |
| Nominal Engine speed | 2,050 1/min | ↗ |
| Operating pressure | 240 bar | ↗ |
| Operating pressure hydraulics | 320 bar | ↗ |
| Operating pressure slewing gear | 320 bar | ↗ |
| Operating weight | 34,284–38,085 lb (15,551–17,275 kg) | ↗ |
| Shipping weight | 32,886 lb (14,917 kg) | ↗ |
| Superstructure turning speed | 11.6 1/min | ↗ |
| Tank capacity | 110 l | ↗ |
| Travel speed | 5.1 km/h | ↗ |
| Width | 98.0 in (2,490 mm) | ↗ |
Chaque valeur est retracée jusqu’aux données publiées par le fabricant. ↗ ouvre la source.
