Aftercooler / Dryer / Separator

An aftercooler / dryer / separator is air treatment equipment installed downstream of a compressor to cool compressed air, remove moisture, and filter contaminants before delivery to pneumatic tools or processes. These units prevent water and oil carryover that can damage tools, ruin finishes, and compromise air-powered equipment. The equipment class encompasses integrated or standalone systems that condition compressed air to industry-acceptable quality standards.

Models

100–1,500 cfm typical range

Flow Capacity (cfm)

Brands

How it works

Compressed air exits the compressor at elevated temperatures (often 200-300°F) carrying water vapor, oil mist, and particulates. The aftercooler stage uses ambient air or water circulation to reduce air temperature, causing moisture to condense. Separators then use centrifugal force, baffles, or coalescing filters to remove liquid droplets and aerosols. Dryer stages—typically desiccant or refrigerant types—further reduce dewpoint by adsorbing or condensing remaining moisture, with automatic or manual drain valves purging accumulated liquids. Integrated units combine these functions in a single package matched to compressor output. Desiccant dryers use dual towers with moisture-absorbing media that regenerates on timed cycles, achieving very low dewpoints for critical applications. Refrigerant dryers chill air to condense moisture before reheating to prevent downstream condensation, suitable for general industrial use where moderate dewpoints suffice.

Types & variants

Aftercooler Only: Heat exchanger that cools compressed air and removes bulk moisture through condensation, typically the first stage in air treatment.

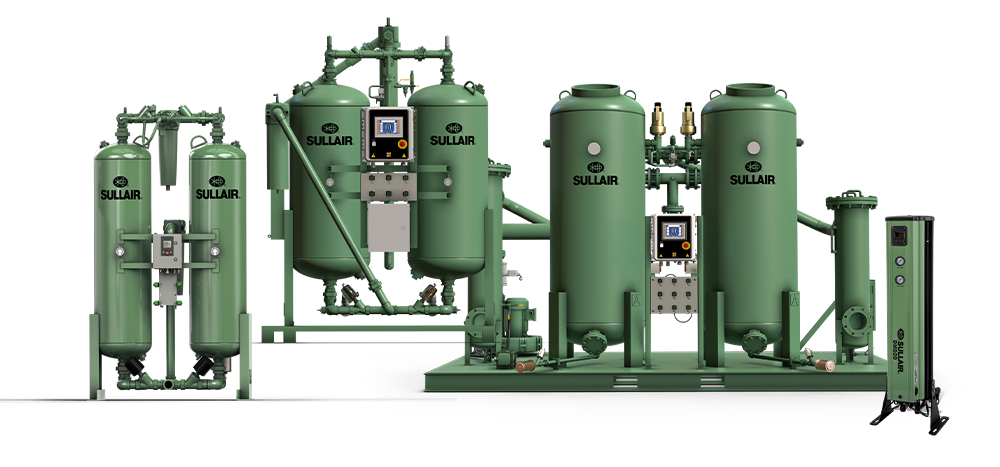

Desiccant Dryer: Uses moisture-absorbing media in twin towers with regeneration cycles to achieve very low dewpoints, essential for instrument air and critical processes.

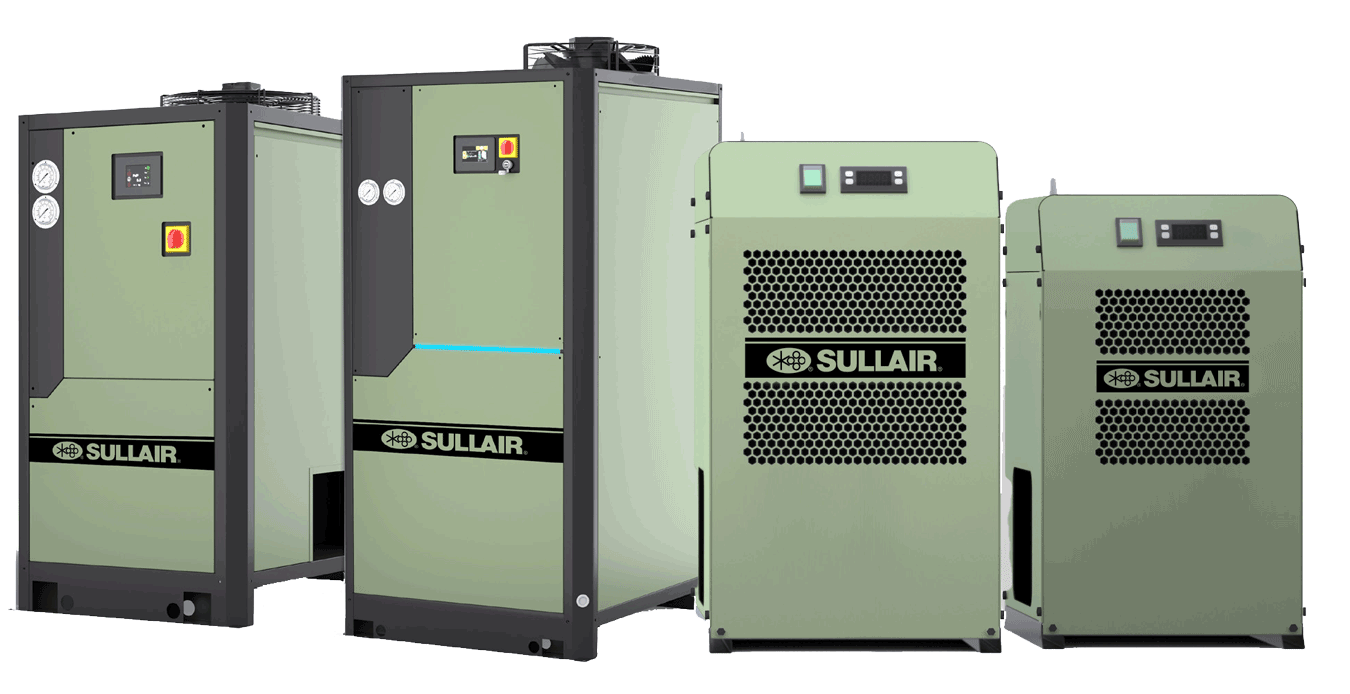

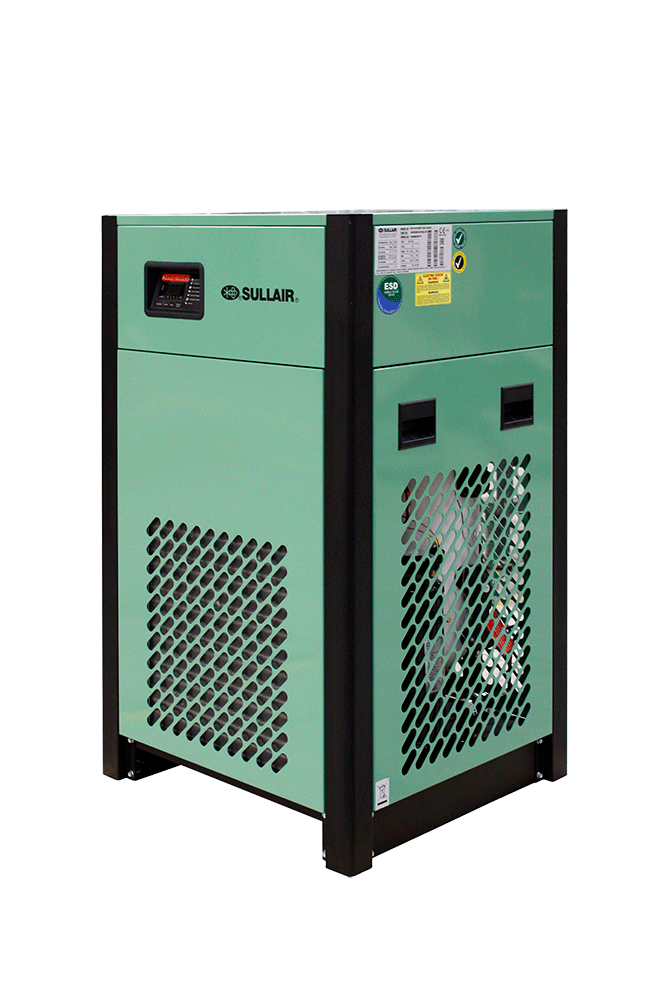

Refrigerant Dryer: Chills compressed air to condense moisture, then reheats it; achieves moderate dewpoints suitable for general shop and construction air.
Moisture Separator: Mechanical device using centrifugal or coalescing filtration to remove liquid water and oil droplets without active drying.
Integrated Dryer Package: Complete air treatment system combining aftercooling, separation, drying, and filtration in a single skid-mounted or cabinet unit.

Key specifications

Specification	Typical range	What it means
Flow Capacity (cfm)	100–1,500 cfm typical range	Volumetric airflow the unit can treat; must match or exceed compressor output at rated pressure.
Maximum Pressure	75–230 psi	Operating pressure range the vessel and components are rated to handle safely.
Dewpoint	-40°F to +38°F depending on type	Temperature to which air can be cooled before moisture condenses; lower values indicate drier air.
Pressure Drop	3–10 psi across unit	Pressure loss through the treatment stages; affects downstream tool performance and compressor sizing.
Power Requirement	115V–460V, varies by dryer type	Electrical supply needed for refrigerant compressors, heaters, controls, and regeneration blowers.

How the industry sizes it

Aftercoolers, dryers, and separators are sized by cfm capacity, matched to the compressor output at operating pressure. The industry selects units based on required air quality (dewpoint), flow rate, and application sensitivity to moisture. Small units (up to ~400 cfm) serve portable compressors for blasting and painting where moisture degrades work quality. Mid-range units (400–900 cfm) pair with towable or skid compressors on job sites. Large systems (900–1,800 cfm and above) handle industrial and pipeline compressors where continuous, dry air is critical. Pressure rating, ambient conditions, and duty cycle further refine selection.

Applications

Abrasive blasting operations requiring dry air to prevent media clumping and surface contamination
Spray painting and coating applications where moisture causes finish defects and adhesion failures
Pneumatic tool operation in humid environments to prevent rust and extend equipment life
Instrument air supply for control systems and pneumatic actuators requiring low dewpoints
Pipeline and industrial construction with large compressors needing continuous air treatment
Sandblasting and surface preparation where moisture compromises abrasive effectiveness

Safety & operation

Drain condensate regularly to prevent overflow and water carryover; automatic drains reduce manual intervention but require monitoring
Ensure pressure ratings exceed maximum compressor output; inspect relief valves and pressure gauges before operation
Allow adequate ventilation around refrigerant dryers to dissipate heat; obstructed airflow causes overheating and shutdowns
Handle desiccant media as directed; some types generate heat during regeneration and require cool-down before servicing
Monitor pressure drop across filters and separators; excessive restriction indicates clogging and necessitates element replacement

Standards & certifications

ASME · Section VIII: Pressure vessel code governing design and fabrication of dryer and separator pressure vessels.
ISO · 8573: Defines compressed air quality classes for particulates, water, and oil content used in specifying treatment requirements.
OSHA · 1910.169: Air receiver regulations applicable to integrated dryer packages with pressure vessels requiring inspection and relief devices.
CGA · G-7.1: Compressed Gas Association standard for commodity specification of air, relevant to high-purity applications.

Frequently asked

What dewpoint is required for blasting and painting applications?

Abrasive blasting typically requires dewpoints of 20–35°F below ambient to prevent media caking; spray painting needs -20°F to -40°F dewpoints to avoid finish defects and ensure proper coating adhesion.

How is an aftercooler different from a dryer?

An aftercooler reduces air temperature through heat exchange, causing bulk moisture to condense for removal; a dryer actively reduces dewpoint through refrigeration or desiccant adsorption to achieve lower moisture levels than cooling alone.

Why do desiccant dryers have two towers?

One tower actively dries compressed air while the other regenerates (purges moisture from saturated desiccant using heat or dry air); the towers switch roles on timed cycles to provide continuous dry air output.

Can a moisture separator replace a dryer?

Separators remove liquid water and oil droplets but do not lower dewpoint; they work well for bulk moisture removal in moderate climates but cannot achieve the low dewpoints required for blasting, painting, or instrument air without an active dryer stage.
