Ariens

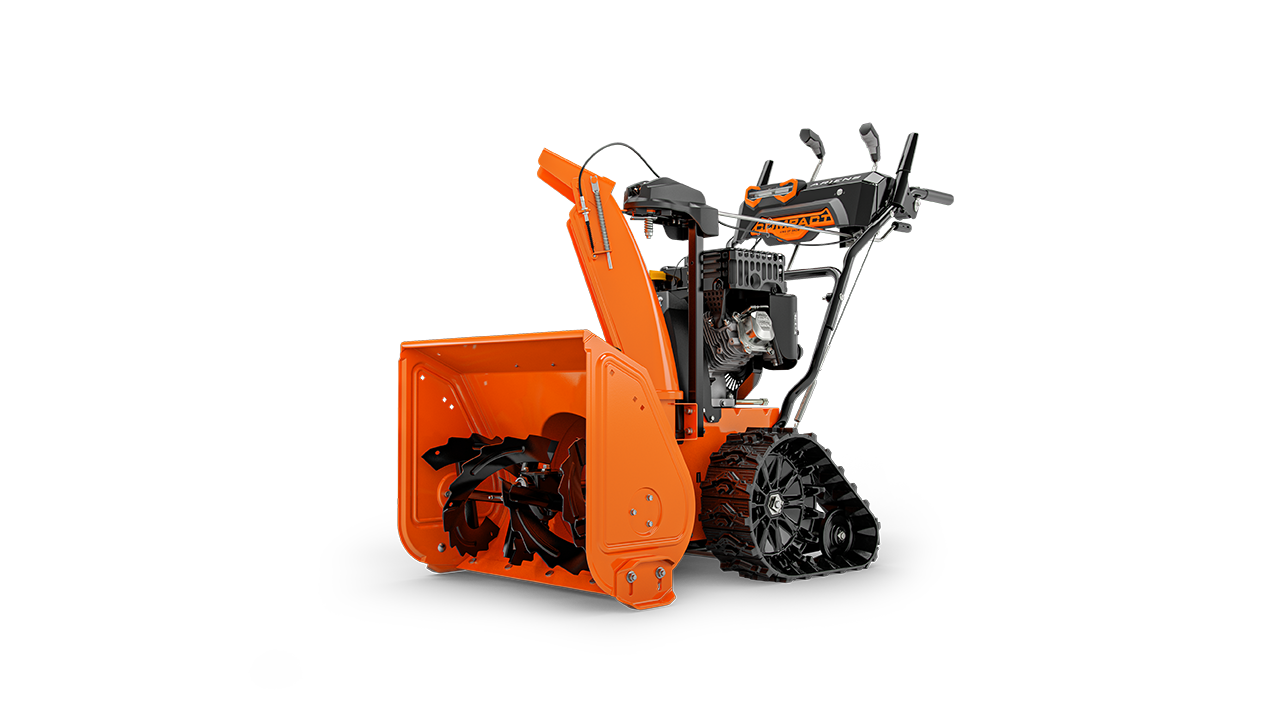

Compact 24 RapidTrak
24 in (61.0 cm)
clearing width
Documents
Full specifications
| Auger Diameter | 11 In / 27.9cm | ↗ |
| Auger Type | Steel Serrated | ↗ |
| Axle Control | Auto-Turn | ↗ |
| Chute Rotation | 205 degrees | ↗ |
| Chute Rotation Control | 2.5x Quick Turn | ↗ |
| Clearing Width | 24 In / 61cm | ↗ |
| Deflector Control Type | In-Dash Lever | ↗ |
| Drive System | Disc-O-matic | ↗ |
| Engine | Ariens AX® | ↗ |
| Engine Displacement | 223 cc | ↗ |
| Engine Torque | 10 Lb / 13.6Nm | ↗ |
| Gear Case | Cast Iron | ↗ |
| Gear Case Warranty | 5 Year Consumer, 1 Year Commercial | ↗ |
| Hand Warmers | Optional | ↗ |
| Height | 44 In / 111.8cm | ↗ |
| Impeller Diameter | 12 In / 30.5cm | ↗ |
| Impeller Profile | Steel 3 Blade | ↗ |
| Intake Height (Housing Height) | 20 In / 50.8cm | ↗ |
| Length | 53.3 In / 135.4cm | ↗ |
| Model Number | 920032 | ↗ |
| Scraper Bar | Steel Adjustable | ↗ |
| Skid Shoes | Steel Reversible | ↗ |
| Speeds | 6 Forward/2 Reverse | ↗ |
| Stage Type | Two Stage | ↗ |
| Starter Type | 120v / Electric | ↗ |
| Starting Price | 1999.00 USD | ↗ |
| Throwing Distance | 3 ft - 40 ft | ↗ |
| Tire Type | Directional Snow Track | ↗ |
| Warranty | 3 years residential use. 90 days commercial use | ↗ |
| Weight | 220 lb (99.8 kg) | ↗ |
| Width | 26.4 In / 67.1cm | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
