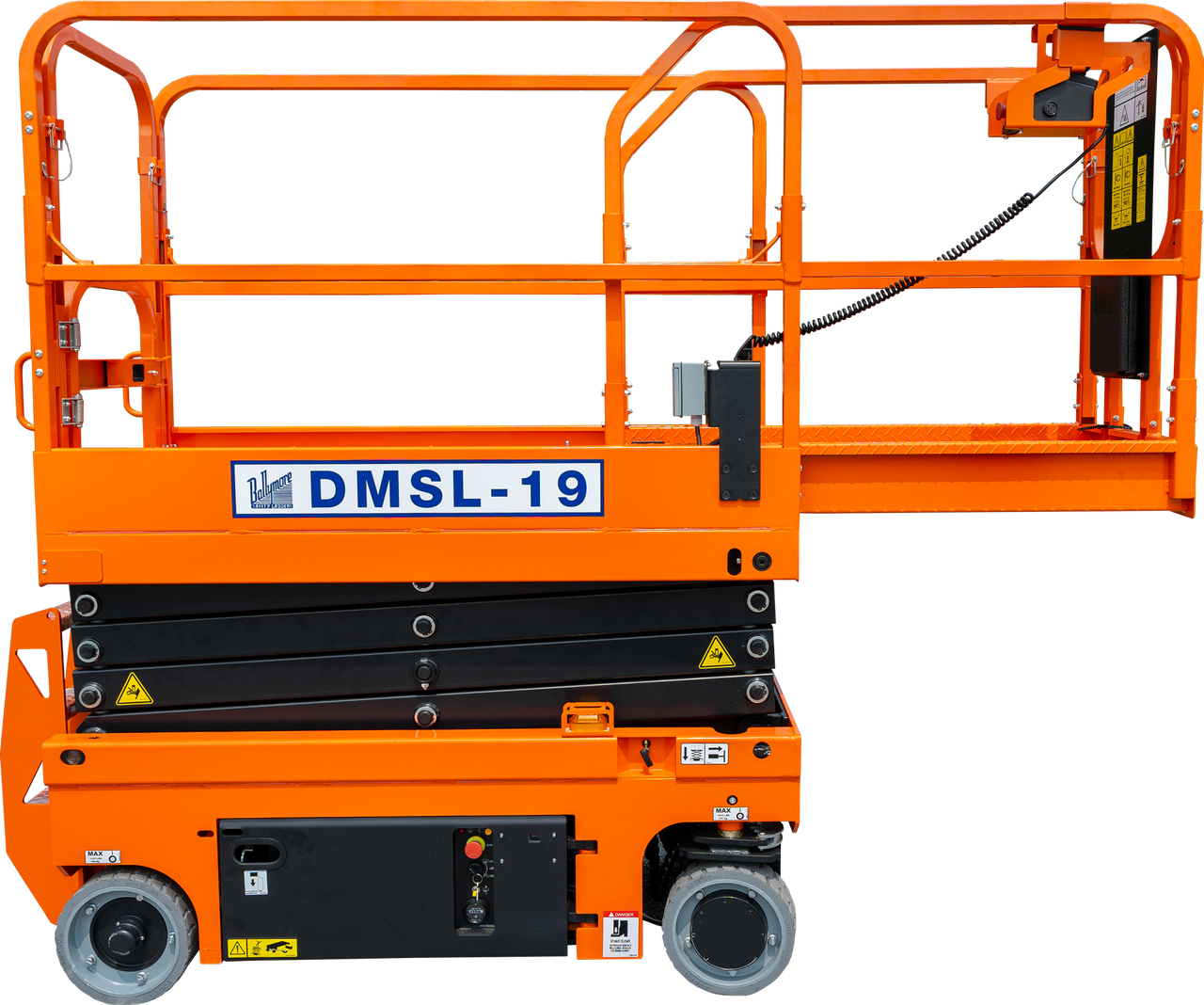

Ballymore
DMSL-19
3,164 lb (1,435 kg)
Operating weight
500 lbs (227 kg)
lift capacity
86 in (218 cm)
overall height
36 in (91.4 cm)
platform extension
19 ft (5.8 m)
platform height
66 in (168 cm)
platform length
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Operating weight | lift capacity | overall height |
|---|---|---|---|---|
| MEC Micro 19 | 98% | - | 500 lbs (227 kg) | - |
| JLG 1930ES | 93% | 2,709 lb (1,229 kg) | 500 lbs (227 kg) | - |
| MEC Micro 13-XD | 84% | - | 500 lbs (227 kg) | - |
| MEC 1330SE Micro | 83% | 2,050 lb (930 kg) | 500 lbs (227 kg) | - |
| JLG 2032ES | 75% | 3,609 lb (1,637 kg) | 800 lbs (363 kg) | - |
| Custom Equipment PS-1030 | 67% | 1,499 lb (680 kg) | 800 lbs (363 kg) | - |
Documents
Full specifications
| Base Length | 74 in (188 cm) | ↗ |
| Base Width | 30 in (76.2 cm) | ↗ |
| Drive Type | Drivable | ↗ |
| Overall Height Lowered | 86 in (218 cm) | ↗ |
| Platform Extension | 36 in (91.4 cm) | ↗ |
| Platform Height | 19 ft (5.8 m) | ↗ |
| Power | 4 - 6V batteries | ↗ |
| Voltage | 24V | ↗ |
| Weight | 3,164 lb (1,435 kg) | ↗ |
| Weight Capacity | 500 lb (227 kg) | ↗ |
| Working Height | 25 ft (7.6 m) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
