Barreto

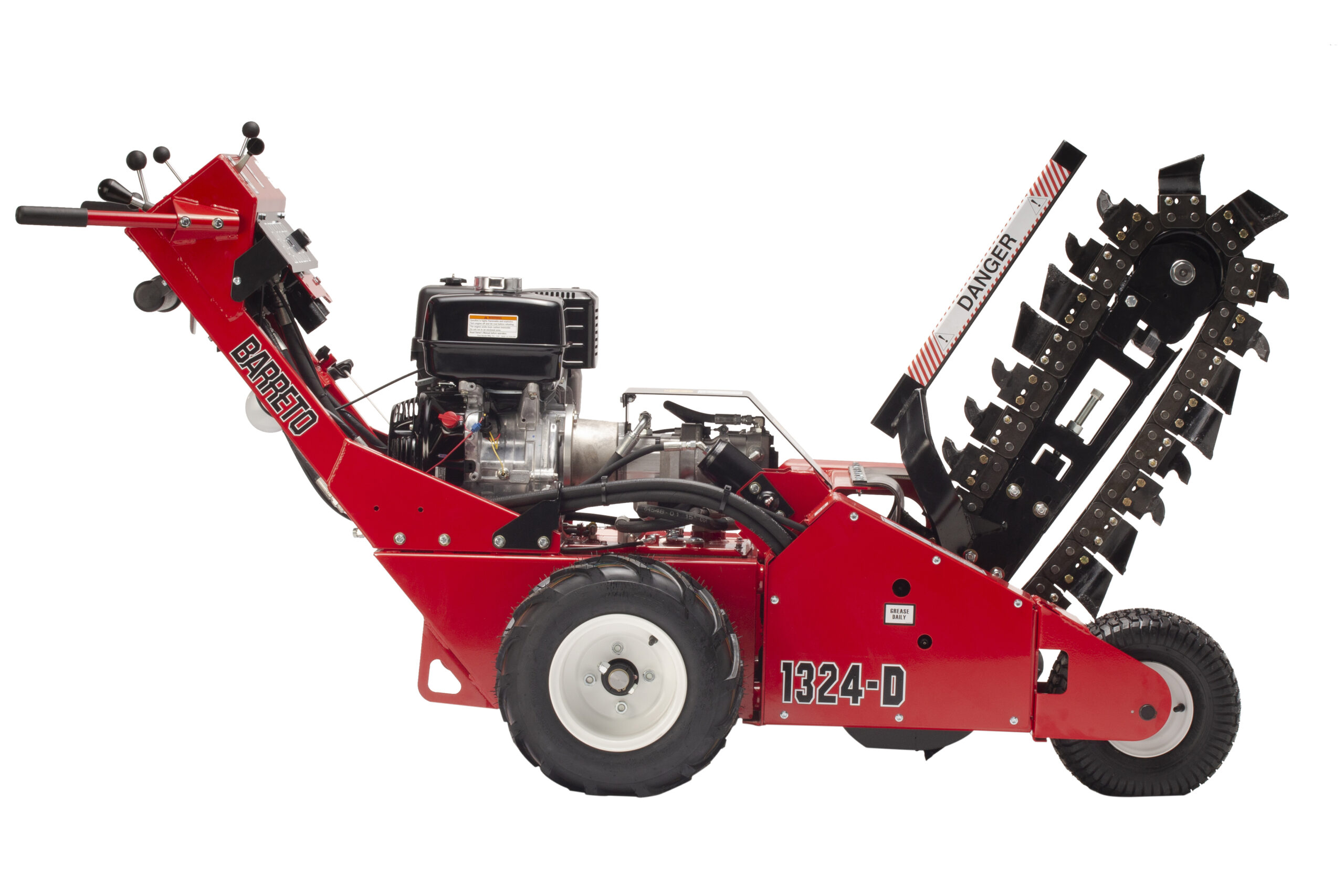

1324D/1624D Standard Trencher
2 ft (0.6 m)
Max dig depth
Documents
Full specifications
| Boom Depth Options | 24, 30, or 36 in | ↗ |
| Boom End to Handlebar | 83 in (211 cm) | ↗ |
| Chain Width Options | 4 or 6 in | ↗ |
| Digging Chain Speed | 260 ft/min | ↗ |
| Engine (1324D) | Honda GX390 | ↗ |
| Engine (1624D) | Briggs & Stratton Vanguard V-Twin 16hp | ↗ |
| Front Wheel to Handlebar | 71 in (180 cm) | ↗ |
| Ground Drive Forward | 180 ft/min | ↗ |
| Ground Drive Reverse | 90 ft/min | ↗ |
| Hydraulic Reservoir | 14 gal | ↗ |
| Transport Height | 46 in (117 cm) | ↗ |
| Transport Width | 35 in (88.9 cm) | ↗ |
| Weight | 900 lbs (408 kg) | ↗ |
| Wheelbase | 35 in (88.9 cm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
