Barreto

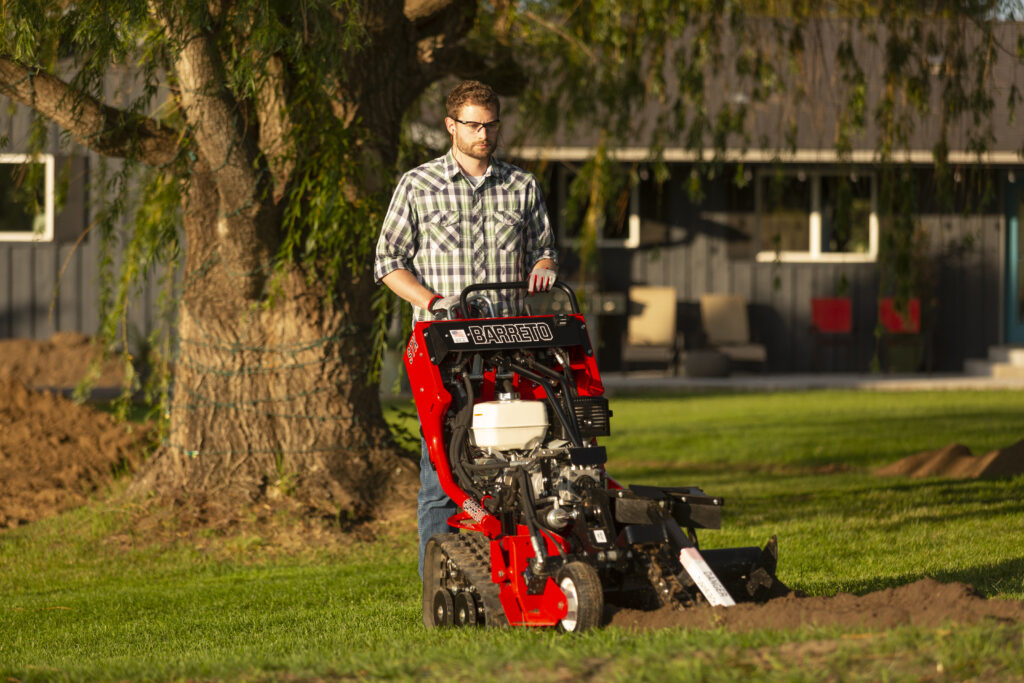

13STKH/16STKB Track Trencher
2 ft (0.6 m)
Max dig depth
Documents
Full specifications
| Boom Depth Options | 24 or 30 in | ↗ |
| Chain Width Options | 4 or 6 in | ↗ |
| Digging Chain Speed | 260 ft/min | ↗ |
| Engine (13STKH) | Honda GX390 | ↗ |
| Engine (16STKB) | Briggs & Stratton Vanguard V-Twin 16hp | ↗ |
| Ground Drive Forward | 210 ft/min | ↗ |
| Ground Drive Reverse | 100 ft/min | ↗ |
| Height | 52.5 in (133 cm) | ↗ |
| Hydraulic Reservoir | 8.13 gal | ↗ |
| Length | 84 in (213 cm) | ↗ |
| Total Ground Contact | 262 sq in | ↗ |
| Track Width | 7.1 in (18.1 cm) | ↗ |
| Weight | 1,085 lbs (492 kg) | ↗ |
| Width | 33.2 in (84.5 cm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
