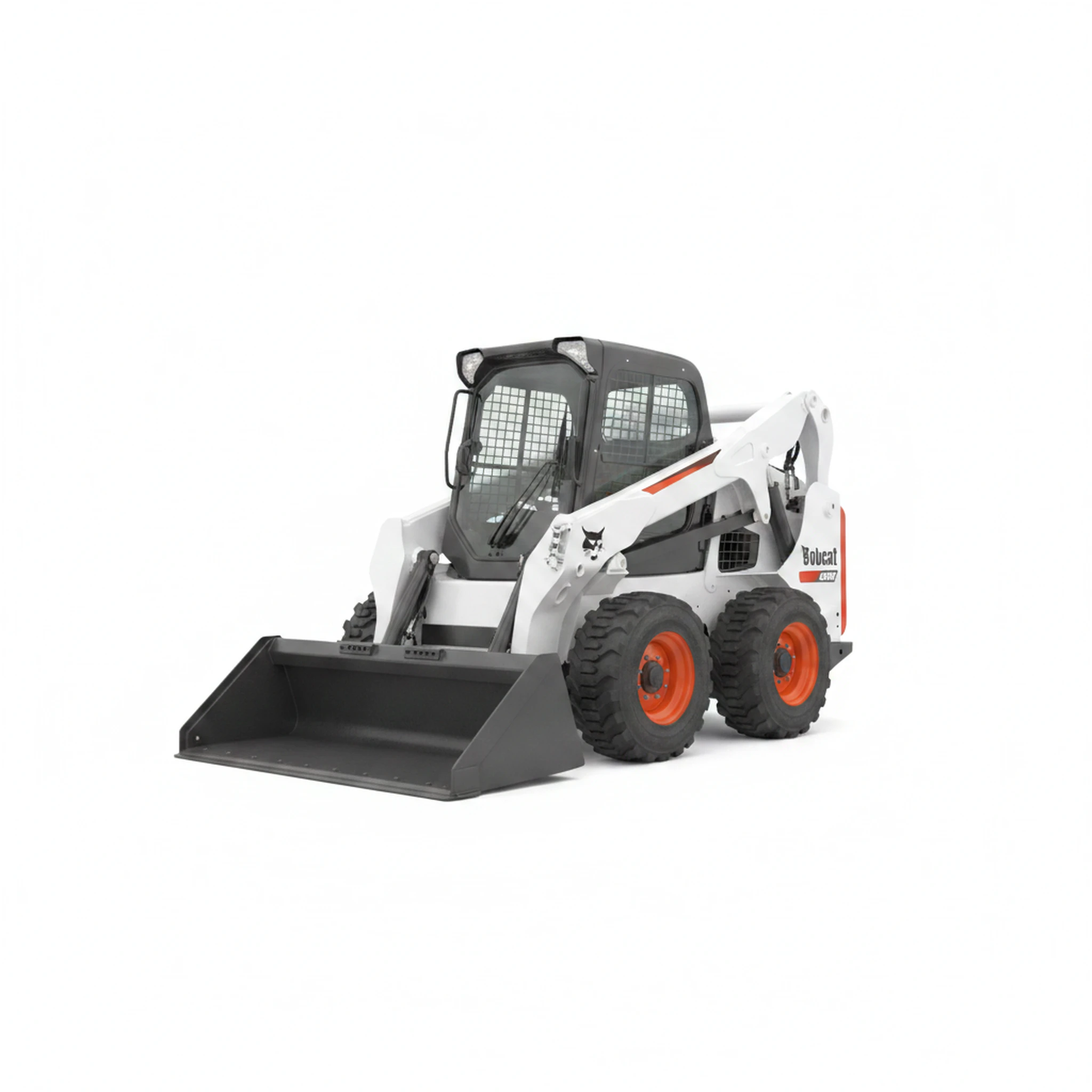

Bobcat
S630
7,610 lb (3,452 kg)
Operating weight
Documents
Full specifications
| Bucket Width | 74 in. (1880 mm) | ↗ |
| Cab Height | 81.3 in. (2065 mm) | ↗ |
| Diesel Exhaust Fluid (DEF) | No | ↗ |
| Diesel Particulate Filter (DPF) Requirement | No | ↗ |
| Engine | Tier 4 | ↗ |
| Fuel Tank Capacity | 23.9 gal. (90.5 L) | ↗ |
| Height to Hinge Pin | 121 in. (3073 mm) | ↗ |
| Horsepower | 74 hp | ↗ |
| Hydraulic High Flow (optional) | 30.5 gpm (115.5 L/min.) | ↗ |
| Hydraulic Standard Flow | 23.0 gpm (87.1 L/min.) | ↗ |
| Hydraulic System Pressure | 3500 psi (241.3 MPa) | ↗ |
| Loader Series | M2-Series | ↗ |
| Operating Weight | 7610 lb. (3452 kg) | ↗ |
| Rated Operating Capacity (ROC) | 2180 lb. (988 kg) | ↗ |
| Tipping Load | 4360 lb. (1978 kg) | ↗ |
| Travel Speed – High Range (optional 2-Speed travel) | 12.3 mph (19.8 km/hr.) | ↗ |
| Travel Speed – Low Range | 7.1 mph (11.4 km/hr.) | ↗ |
| Type | Turbo Diesel | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
