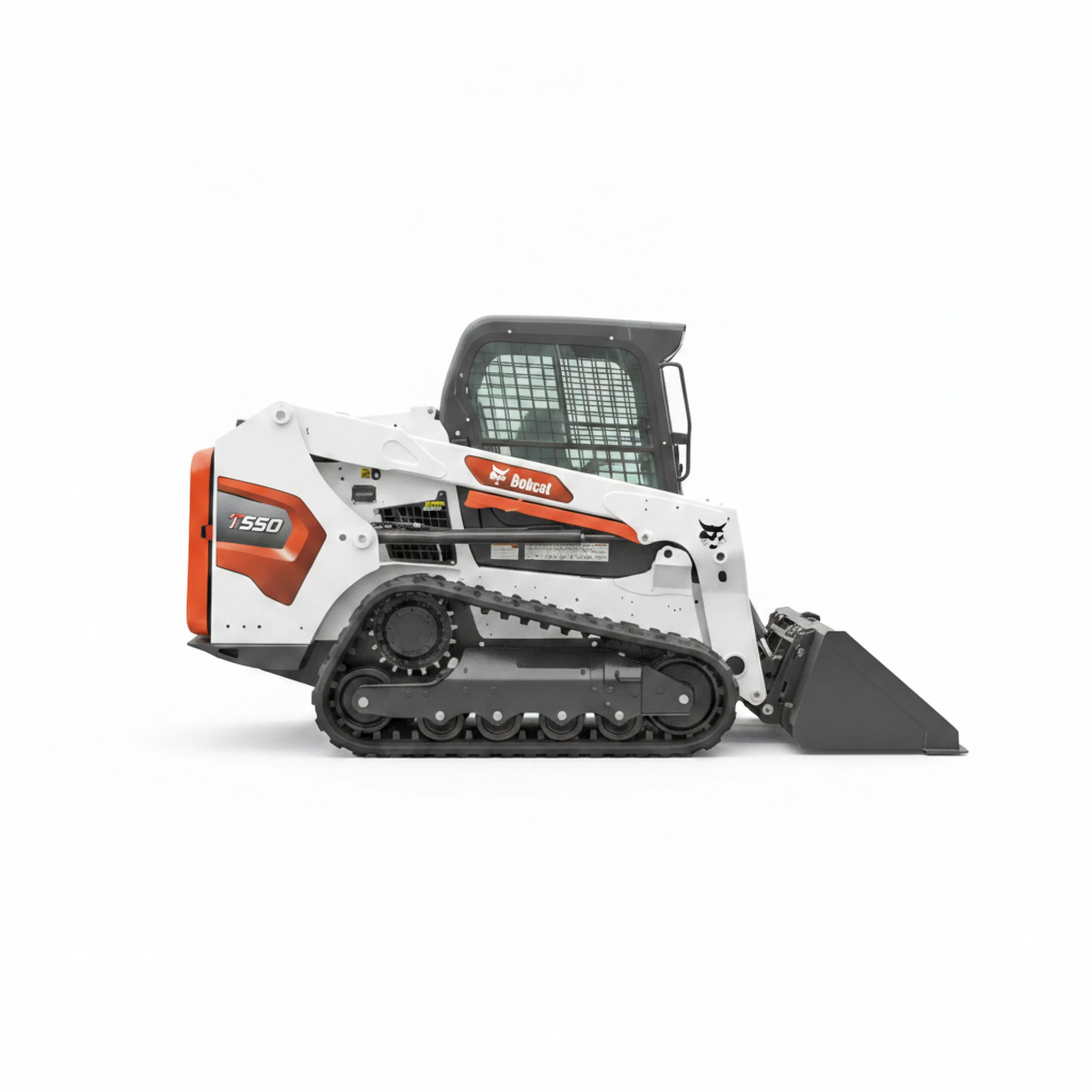

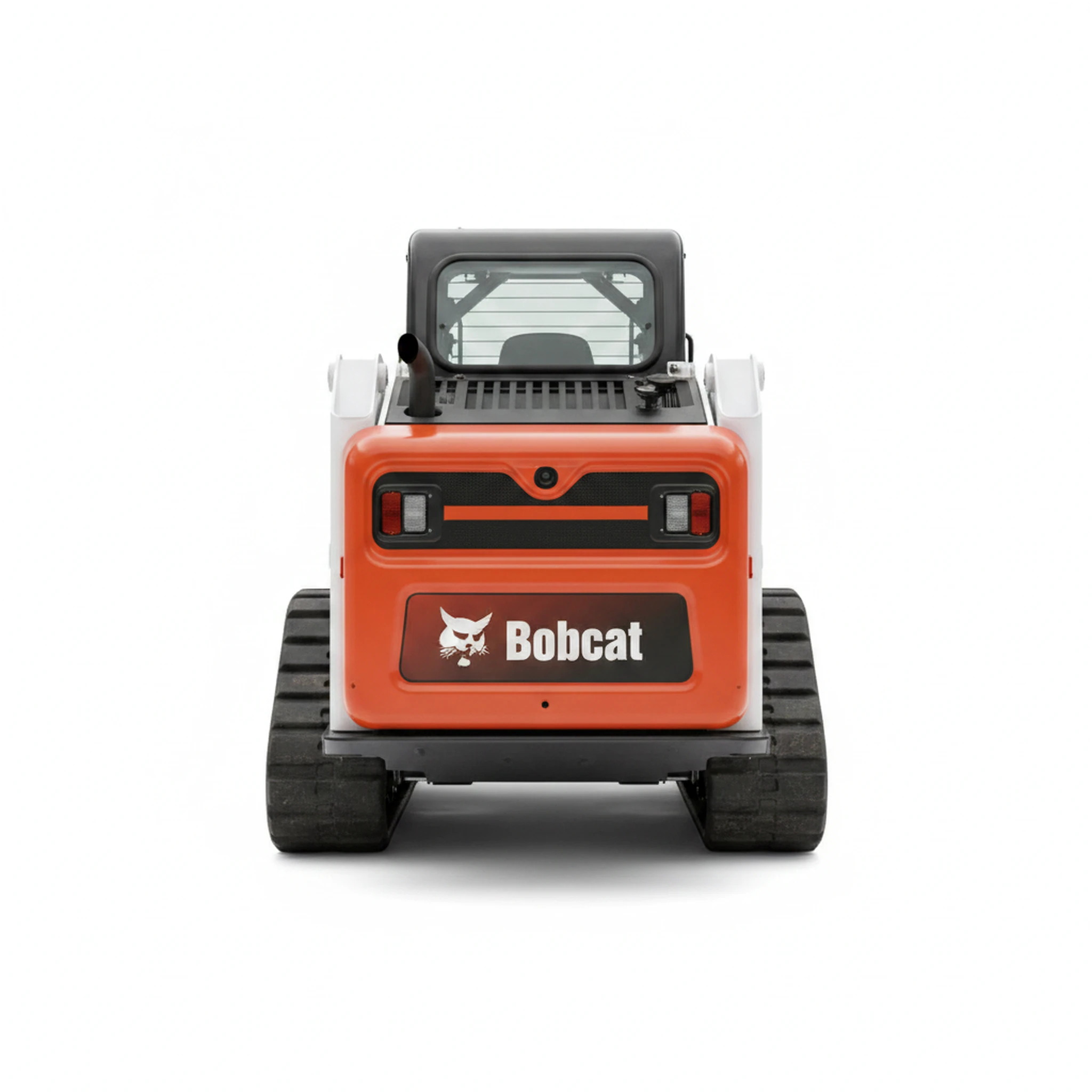

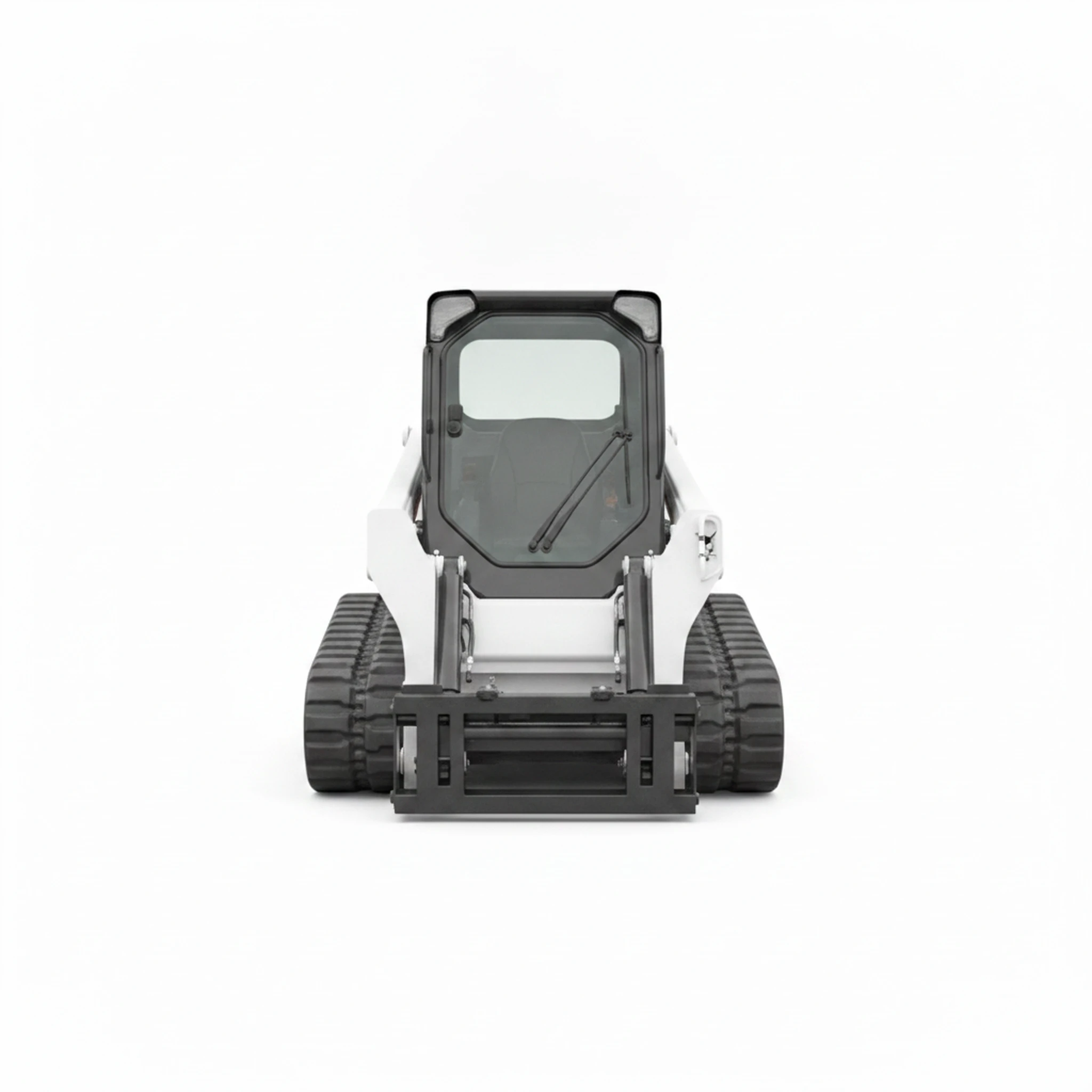

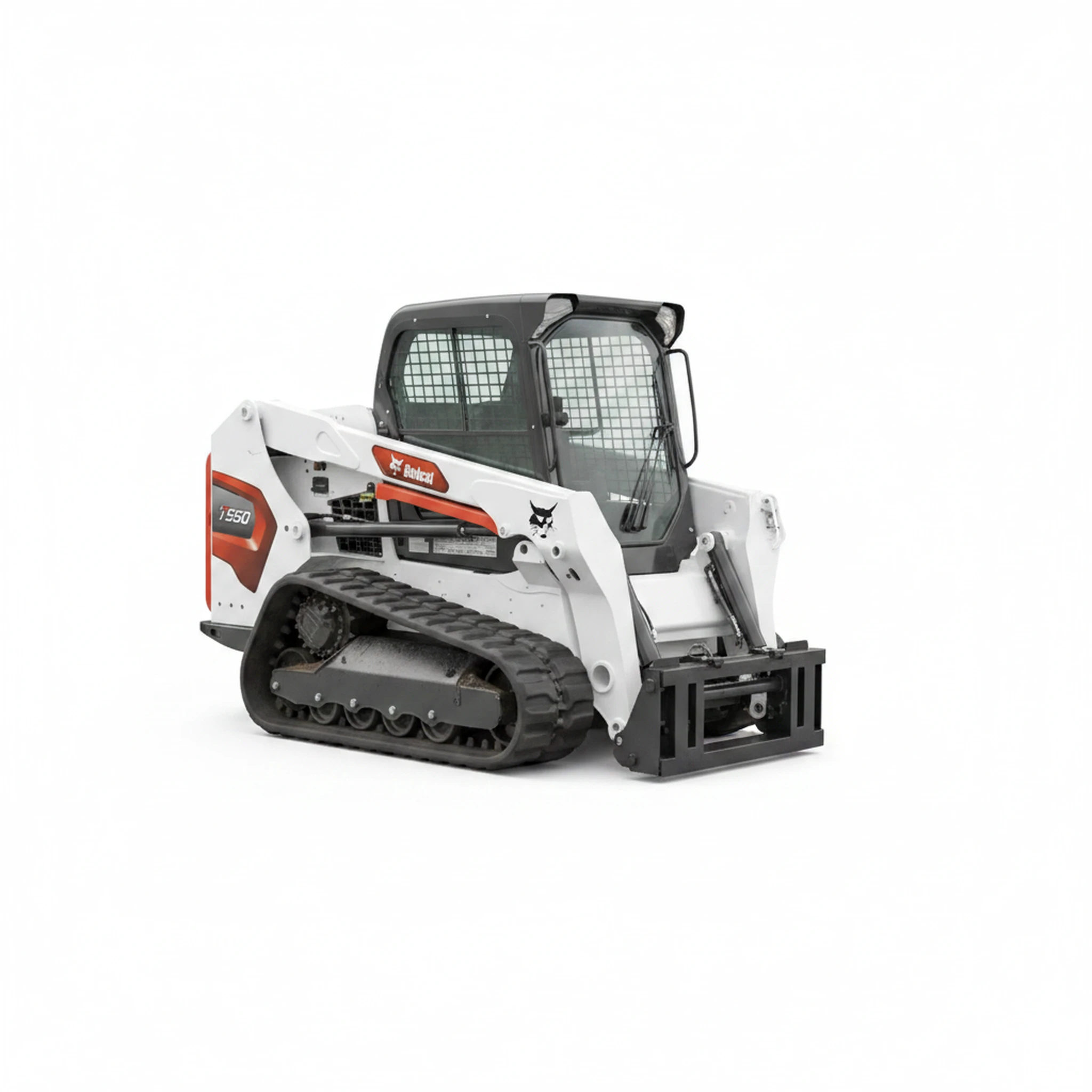

Bobcat
T550
25 hp
Engine power
26,520 N
digging force bucket
28,949 N
drawbar pull
34.4 L
fuel reservoir
26.2 kPa
ground pressure
94.3 L/min
hydraulic capacity
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | digging force bucket | drawbar pull |
|---|---|---|---|---|
| Takeuchi TL12V2 | 51% | 111 hp | - | - |
| Caterpillar 299D3 | 49% | 95 hp | - | - |
| Caterpillar 259D3 | 48% | 72 hp | - | - |
| Case TV620B | 42% | 114 hp | - | - |
| Takeuchi TL11R3 | 33% | 107 hp | - | - |
Documents
Full specifications
| Bucket Width | 68 in. (1727 mm) | ↗ |
| Cab Height | 77.8 in. (1976 mm) | ↗ |
| Diesel Exhaust Fluid (DEF) | No | ↗ |
| Diesel Particulate Filter (DPF) Requirement | No | ↗ |
| Engine | Tier 4 | ↗ |
| Fuel Tank Capacity | 36.5 gal. (138.2 L) | ↗ |
| Ground Pressure (with optional tracks) | 4.0 psi (0.027 MPa) | ↗ |
| Ground Pressure (with standard tracks) | 4.9 psi (0.034 MPa) | ↗ |
| Height to Hinge Pin | 114.5 in. (2908 mm) | ↗ |
| Horsepower | 66 hp | ↗ |
| Hydraulic High Flow (optional) | 26.7 gpm (101.1 L/min.) | ↗ |
| Hydraulic Standard Flow | 17.1 gpm (64.7 L/min.) | ↗ |
| Hydraulic System Pressure | 3500 psi (24.3 MPa) | ↗ |
| Length of Track on Ground | 54.1 in. (1374 mm) | ↗ |
| Loader Series | M2-Series | ↗ |
| Operating Capacity (50% of tipping load) | 2850 lb. (1293 kg) | ↗ |
| Operating Weight | 7557 lb. (3428 kg) | ↗ |
| ROC with Optional Roller Suspension | 1895 lb. (860 kg) | ↗ |
| Rated Operating Capacity (ROC) | 1995 lb. (905 kg) | ↗ |
| Tipping Load | 5700 lb. (2585 kg) | ↗ |
| Track Width: Optional | 15.75 in. (400 mm) | ↗ |
| Track Width: Standard | 12.6 in. (320 mm) | ↗ |
| Travel Speed: High Range | 10.4 mph (16.7 km/hr.) | ↗ |
| Travel Speed: Single Speed | 7.1 mph (11.4 km/hr.) | ↗ |
| Type | Turbo Diesel | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
