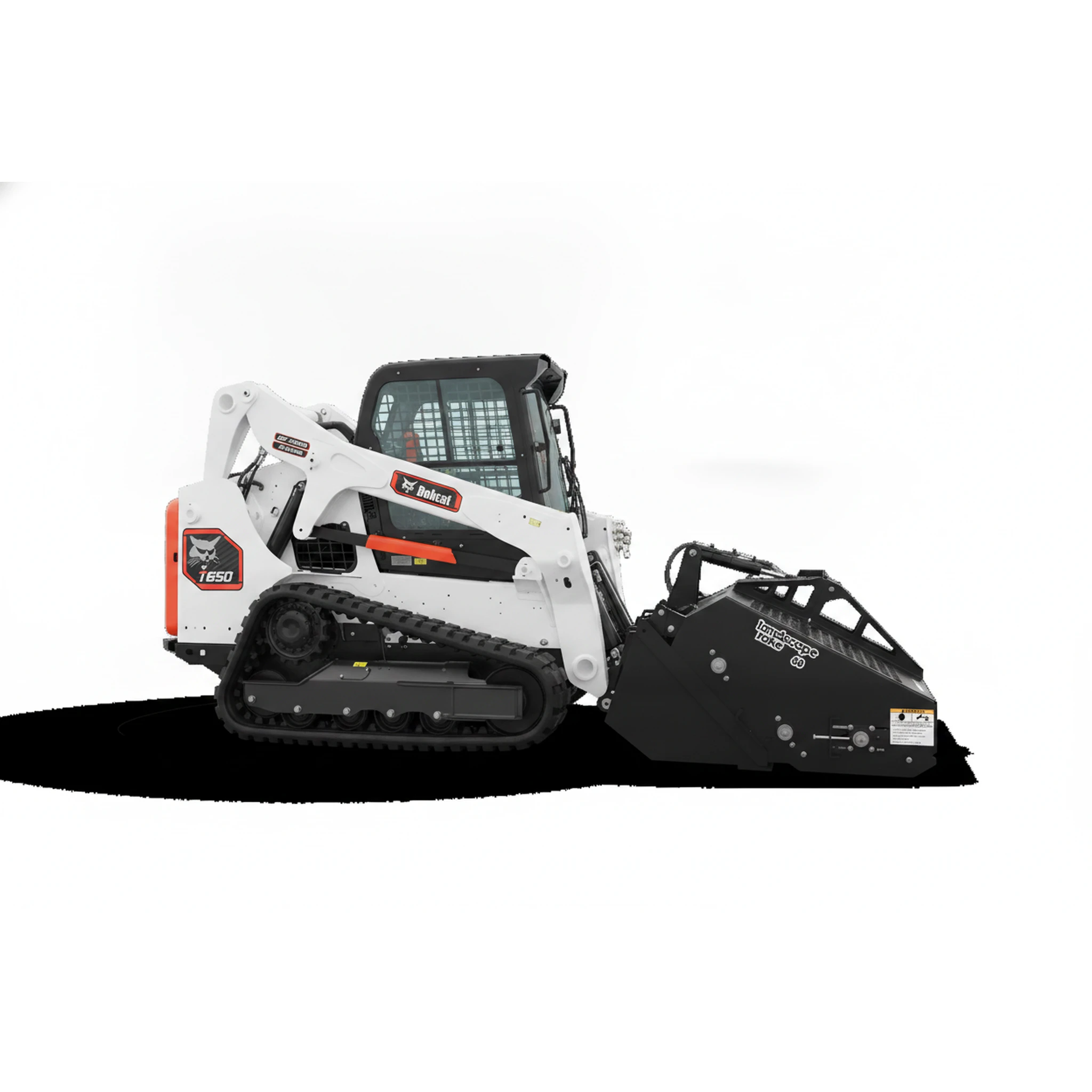

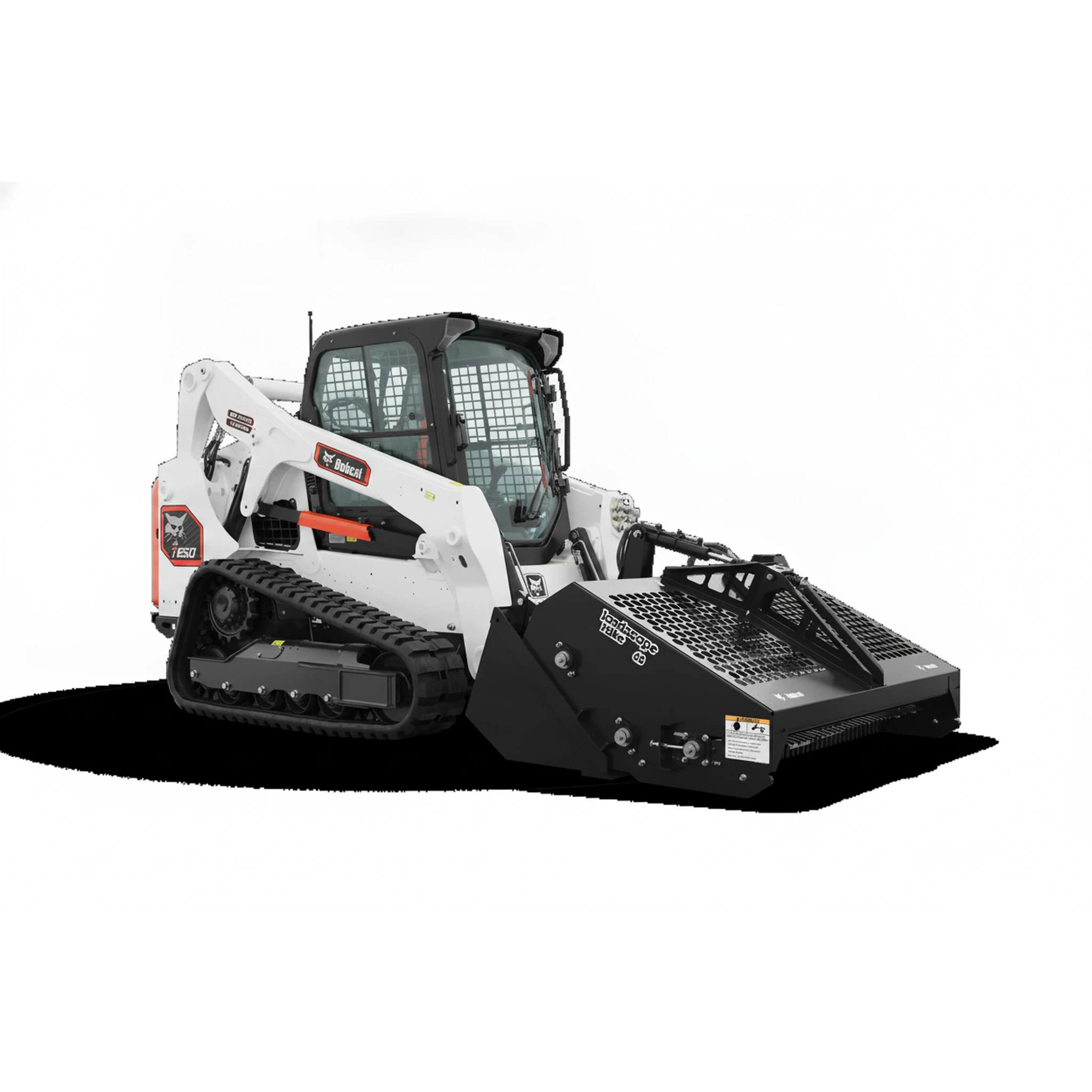

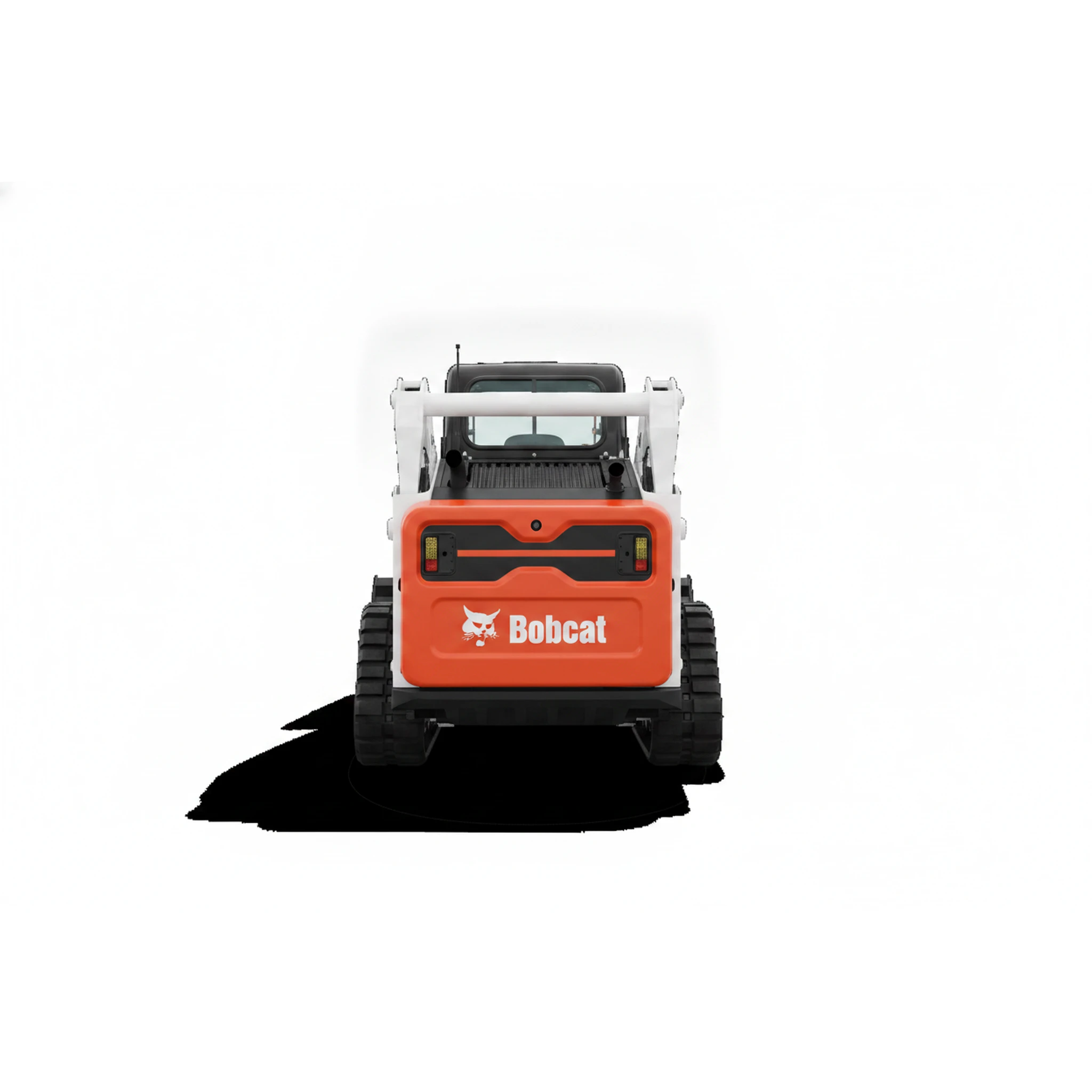

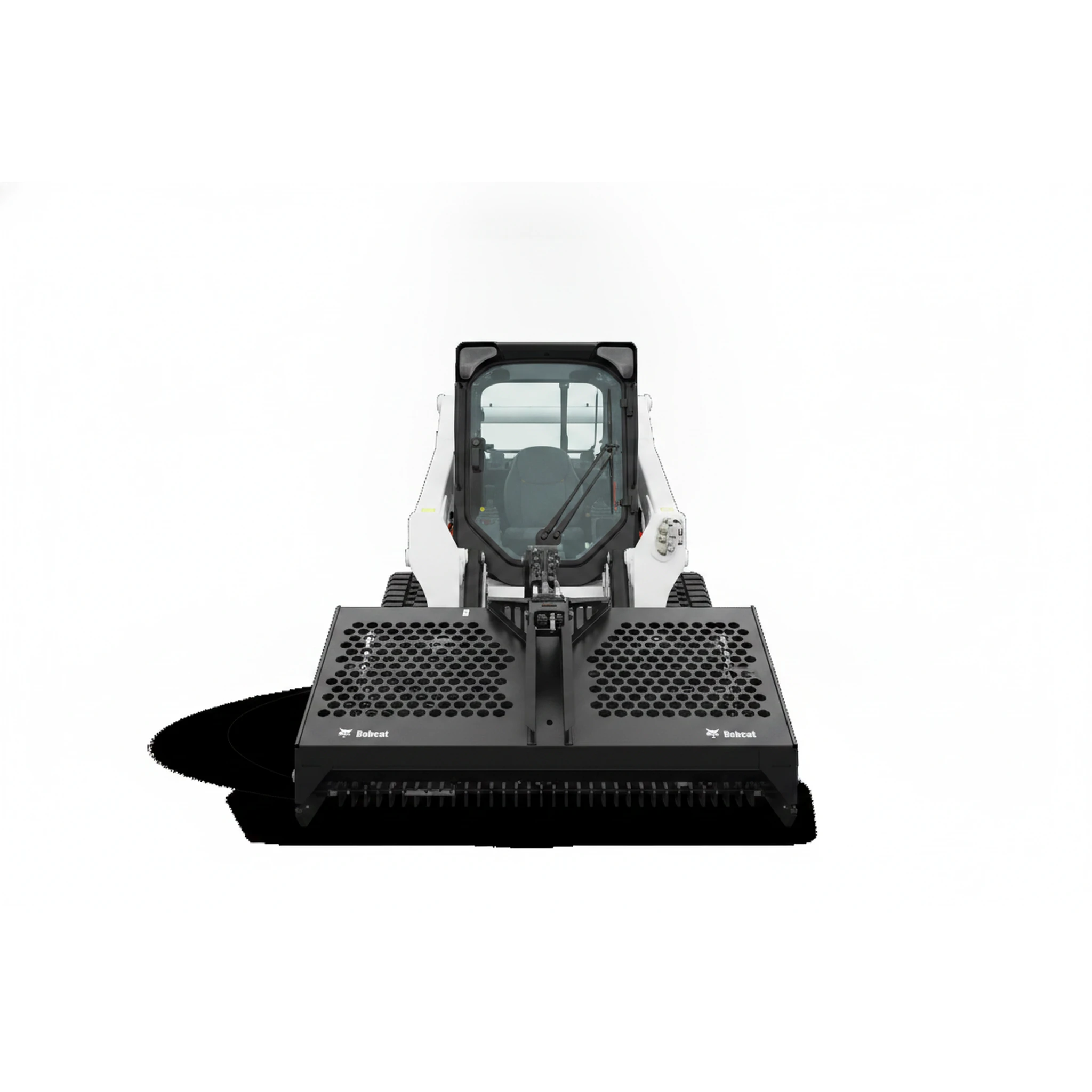

Bobcat
T650
9,112 lb (4,133 kg)
Operating weight
Documents
Full specifications
| Bucket Width | 74.0 in. (1880 mm) | ↗ |
| Cab Height | 81.3 in. (2065 mm) | ↗ |
| Diesel Exhaust Fluid (DEF) | No | ↗ |
| Diesel Particulate Filter (DPF) Requirement | No | ↗ |
| Engine | Tier 4 | ↗ |
| Fuel Tank Capacity | 43.9 gal. (166.4 L) | ↗ |
| Ground Pressure (with optional tracks) | 4.2 psi (0.028 MPa) | ↗ |
| Ground Pressure (with standard tracks) | 5.7 psi (0.039 MPa) | ↗ |
| Height to Hinge Pin | 124.0 in. (3149 mm) | ↗ |
| Horsepower | 74 hp | ↗ |
| Hydraulic High Flow (optional) | 30.5 gpm (115.5 L/min.) | ↗ |
| Hydraulic Standard Flow | 23.0 gpm (87.1 L/min.) | ↗ |
| Hydraulic System Pressure | 3500 psi (24.13 MPa) | ↗ |
| Length of Track on Ground | 58.5 in. (1486 mm) | ↗ |
| Lift Arm Path | Vertical | ↗ |
| Loader Series | M2-Series | ↗ |
| Operating Capacity (50% of tipping load) | 3670 lb. (1665 kg) | ↗ |
| Operating Weight | 9113 lb. (4133 kg) | ↗ |
| ROC with Optional Roller Suspension | 2470 lb. (1120 kg) | ↗ |
| Rated Operating Capacity (ROC) | 2570 lb. (1166 kg) | ↗ |
| Tipping Load | 7343 lb. (3331 kg) | ↗ |
| Track Width: Optional | 17.7 in. (450 mm) | ↗ |
| Track Width: Standard | 12.6 in. (320 mm) | ↗ |
| Travel Speed: High Range | 10.0 mph (16.0 km/hr.) | ↗ |
| Travel Speed: Single Speed | 6.6 mph (9.7 km/hr.) | ↗ |
| Type | Turbo Diesel | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
