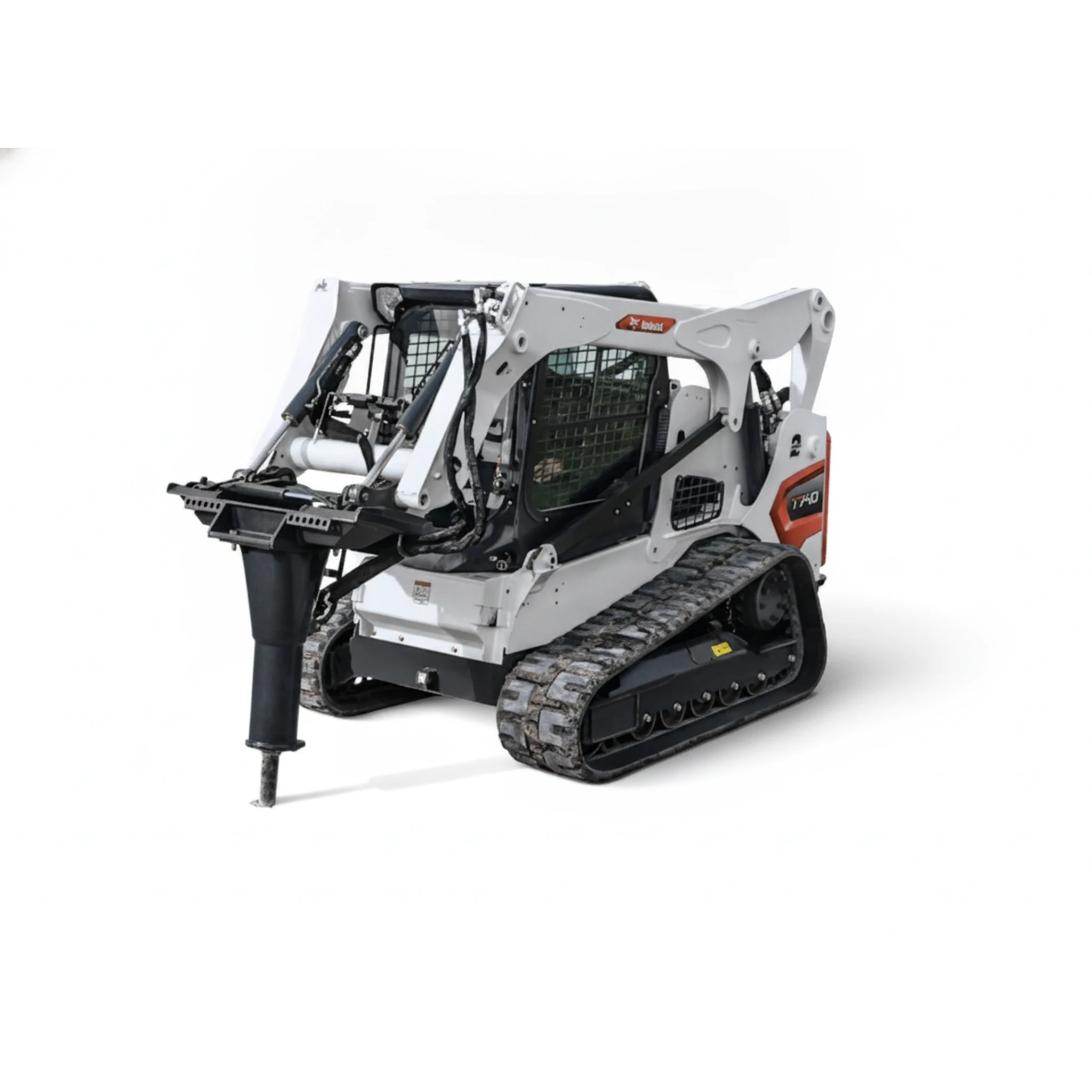

Bobcat
T740
74 hp
Engine power
44.0 gal
Fuel capacity
0 hydrostatic rubber track
drive type
0 Diesel
fuel type
3,100 lb (1,406 kg)
lift capacity
8,858 lb (4,018 kg)
tipping load
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Fuel capacity | drive type |
|---|---|---|---|---|
| Case TV370B | 93% | 74 hp | - | - |
| Takeuchi TL11R3 | 86% | 107 hp | - | - |
| Case TR310B | 85% | - | - | - |
| Caterpillar 275 | 84% | 110 hp | - | - |
| Case TR270B | 83% | 74 hp | - | - |
| Case TR340B | 83% | 90 hp | - | - |
Documents
Full specifications
| Bucket Width | 80.0 in. (2032 mm) | ↗ |
| Cab Height | 81.3 in. (2065 mm) | ↗ |
| Diesel Exhaust Fluid (DEF) | No | ↗ |
| Diesel Particulate Filter (DPF) Requirement | No | ↗ |
| Engine | Tier 4 | ↗ |
| Fuel Tank Capacity | 44.4 gal. (168.1 L) | ↗ |
| Ground Pressure (with standard tracks) | 4.1 psi (0.028 MPa) | ↗ |
| Height to Hinge Pin | 132.0 in. (3353 mm) | ↗ |
| Horsepower | 74 hp | ↗ |
| Hydraulic High Flow (optional) | 30.5 gpm (115.5 L/min.) | ↗ |
| Hydraulic Standard Flow | 23.0 gpm (87.1 L/min.) | ↗ |
| Hydraulic System Pressure | 3500 psi (24.13 MPa) | ↗ |
| Length of Track on Ground | 63.7 in. (1618 mm) | ↗ |
| Lift Arm Path | Vertical | ↗ |
| Loader Series | M2-Series | ↗ |
| Operating Capacity (50% of tipping load) | 4571 lb. (2073 kg) | ↗ |
| Operating Weight | 10,127 lb. (4594 kg) | ↗ |
| ROC with Optional Roller Suspension | 3100 lb. (1406 kg) | ↗ |
| Rated Operating Capacity (ROC) | 3200 lb. (1451 kg) | ↗ |
| Tipping Load | 9143 lb. (4147 kg) | ↗ |
| Track Width: Optional | 12.6 in. (320 mm) | ↗ |
| Track Width: Standard | 17.7 in. (450 mm) | ↗ |
| Travel Speed: High Range | 8.3 mph (13.4 km/hr.) | ↗ |
| Travel Speed: Single Speed | 6.0 mph (9.7 km/hr.) | ↗ |
| Type | Turbo Diesel | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
