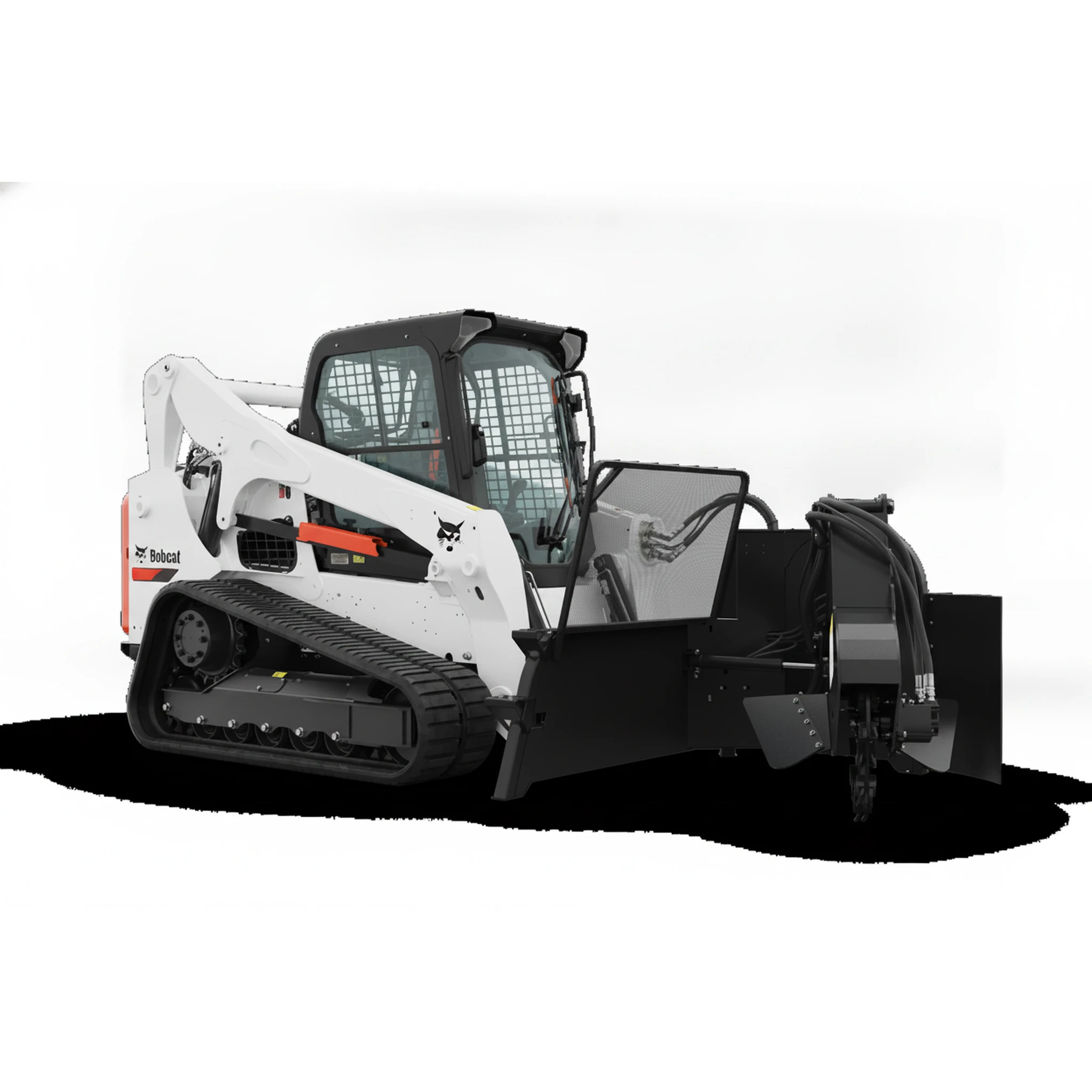

Bobcat
T770
10,516 lb (4,770 kg)
Operating weight
Documents
Full specifications
| Bucket Width | 80.0 in. (2032 mm) | ↗ |
| Cab Height | 81.3 in. (2065 mm) | ↗ |
| Diesel Exhaust Fluid (DEF) | 6.8 gal. (25.7 L) | ↗ |
| Diesel Particulate Filter (DPF) Requirement | No | ↗ |
| Engine | Tier 4 | ↗ |
| Fuel Tank Capacity | 44.4 gal. (168.1 L) | ↗ |
| Ground Pressure (with standard tracks) | 4.2 psi (0.029 MPa) | ↗ |
| Height to Hinge Pin | 132.0 in. (3353 mm) | ↗ |
| Horsepower | 92 hp | ↗ |
| Hydraulic High Flow (optional) | 36.6 gpm (138.5 L/min.) | ↗ |
| Hydraulic Standard Flow | 23.0 gpm (87.1 L/min.) | ↗ |
| Hydraulic System Pressure | 3500 psi (24.13 MPa) | ↗ |
| Length of Track on Ground | 63.7 in. (1618 mm) | ↗ |
| Lift Arm Path | Vertical | ↗ |
| Loader Series | M2-Series | ↗ |
| Operating Capacity (50% of tipping load) | 4960 lb. (2250 kg) | ↗ |
| Operating Weight | 10,515 lb. (4770 kg) | ↗ |
| ROC with Optional Roller Suspension | 3325 lb. (1508 kg) | ↗ |
| Rated Operating Capacity (ROC) | 3475 lb. (1576 kg) | ↗ |
| Tipping Load | 9929 lb. (4504 kg) | ↗ |
| Track Width – Standard | 17.7 in. (450 mm) | ↗ |
| Travel Speed – High Range | 9.3 mph (15.0 km/hr.) | ↗ |
| Travel Speed – Single Speed | 6.0 mph (9.7 km/hr.) | ↗ |
| Type | Turbo Diesel | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
