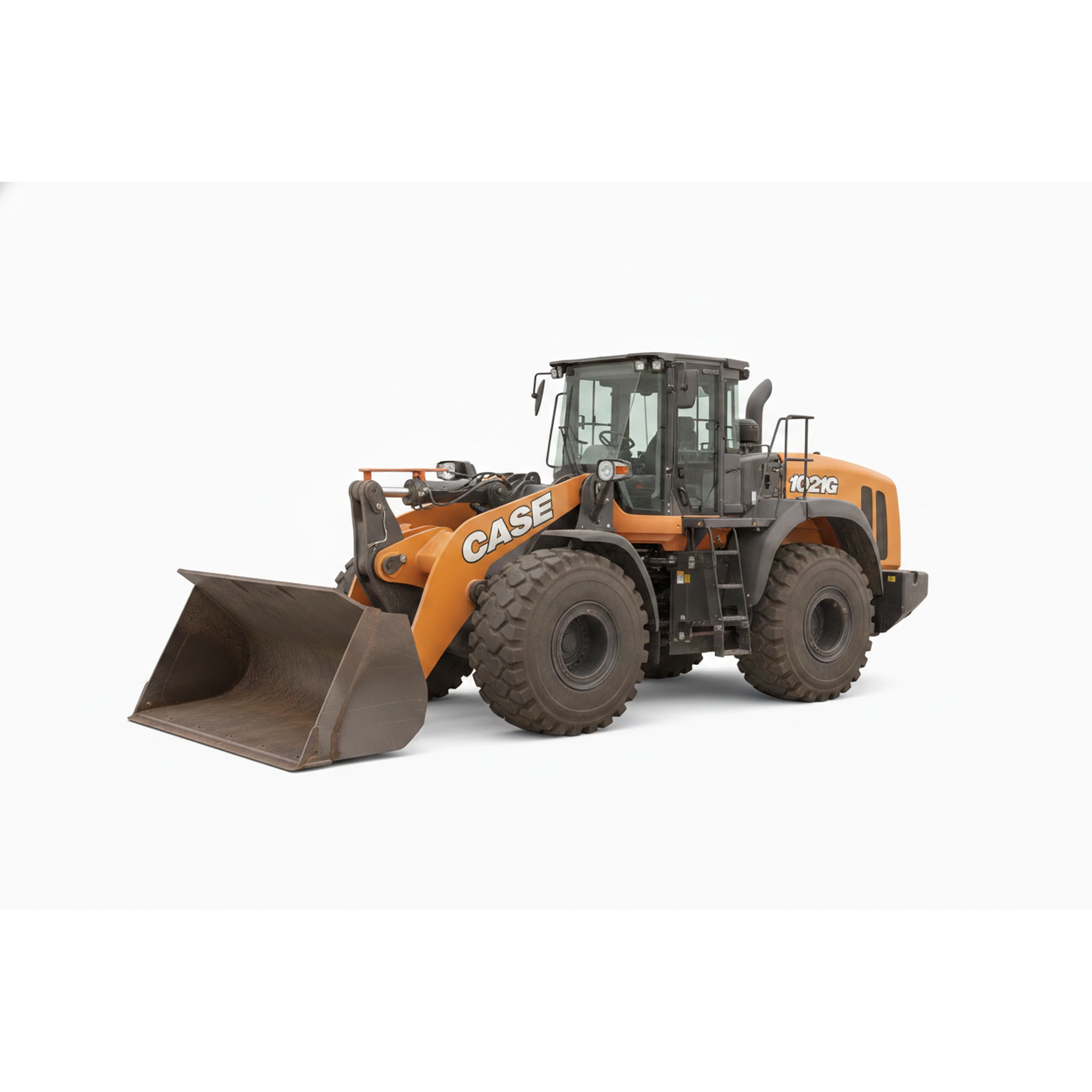

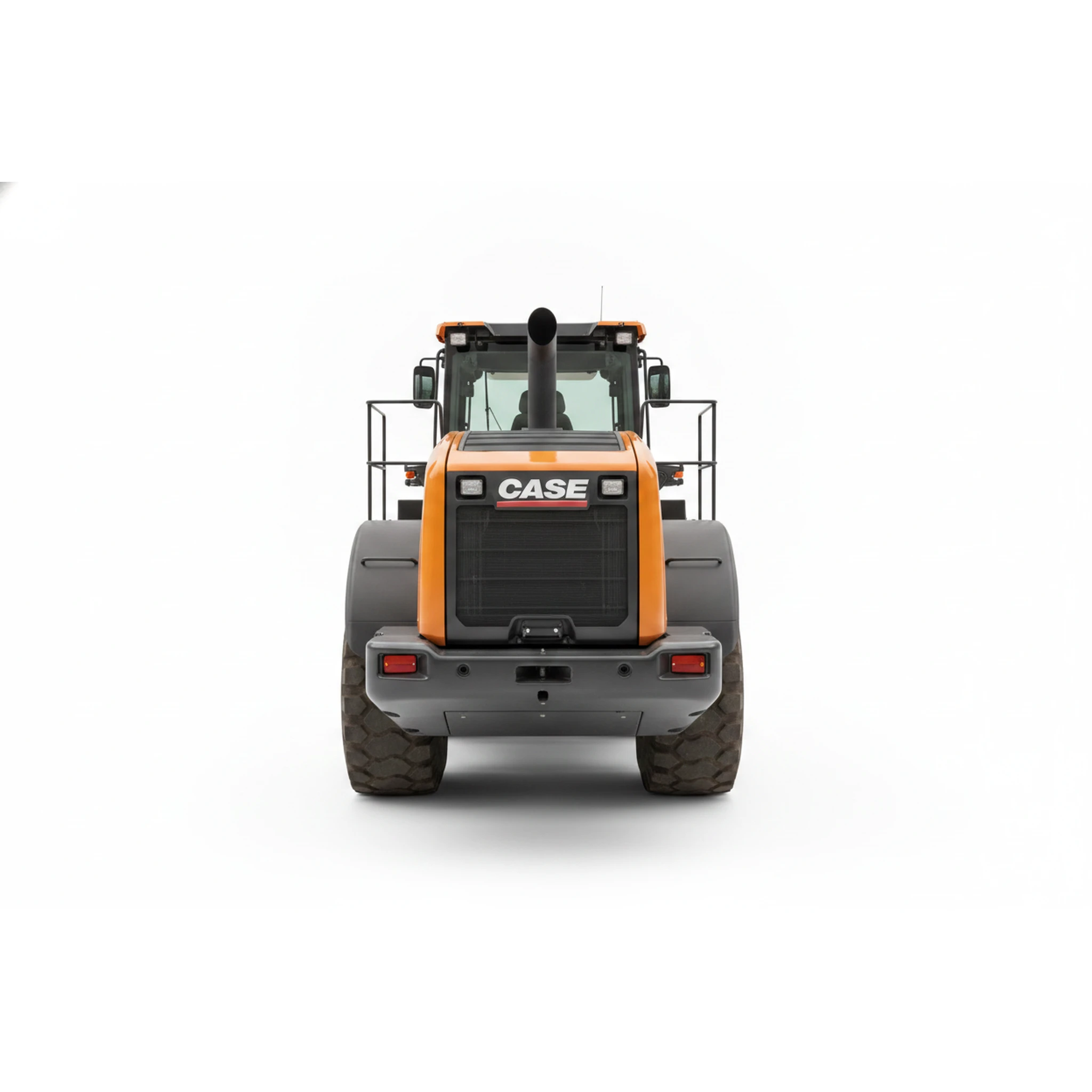

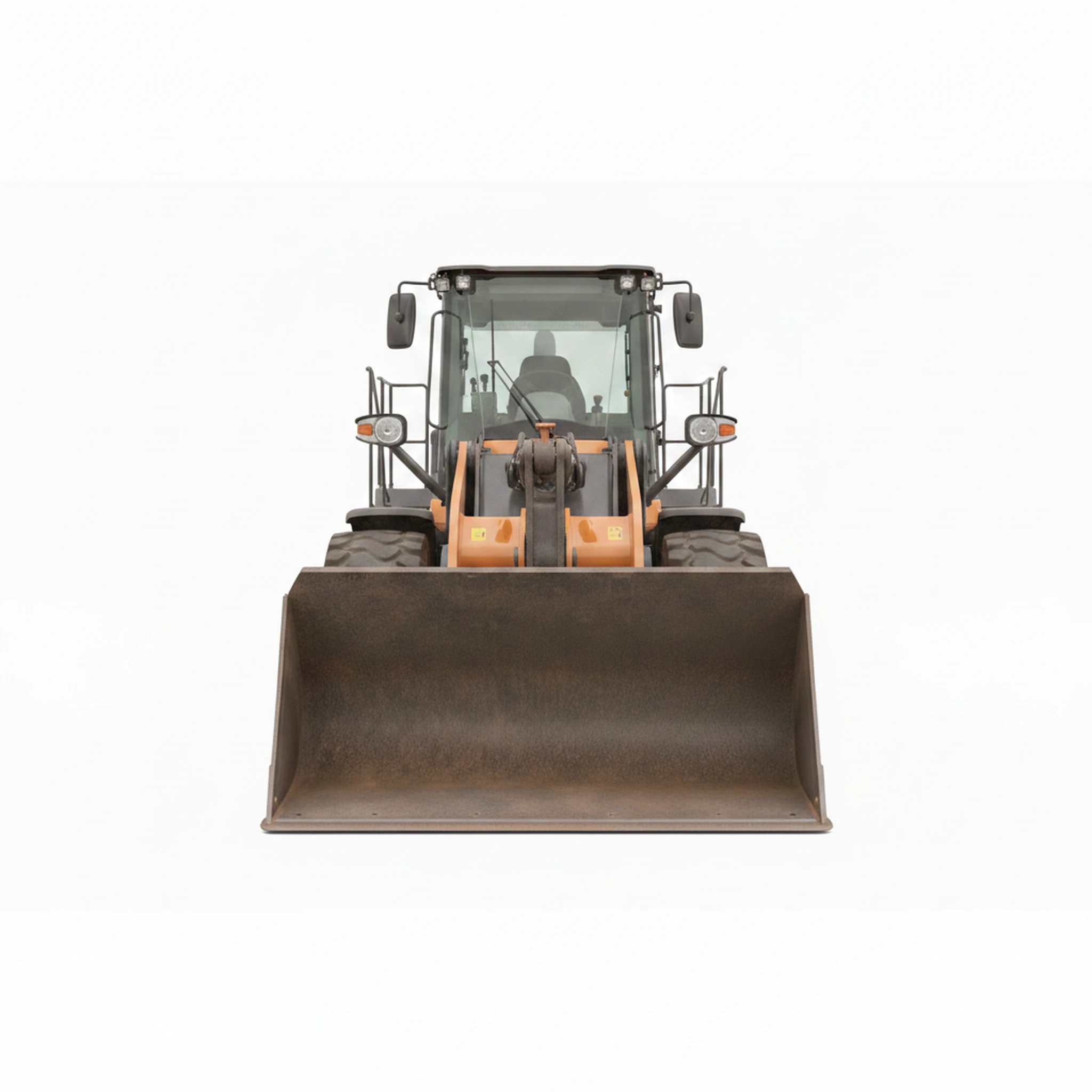

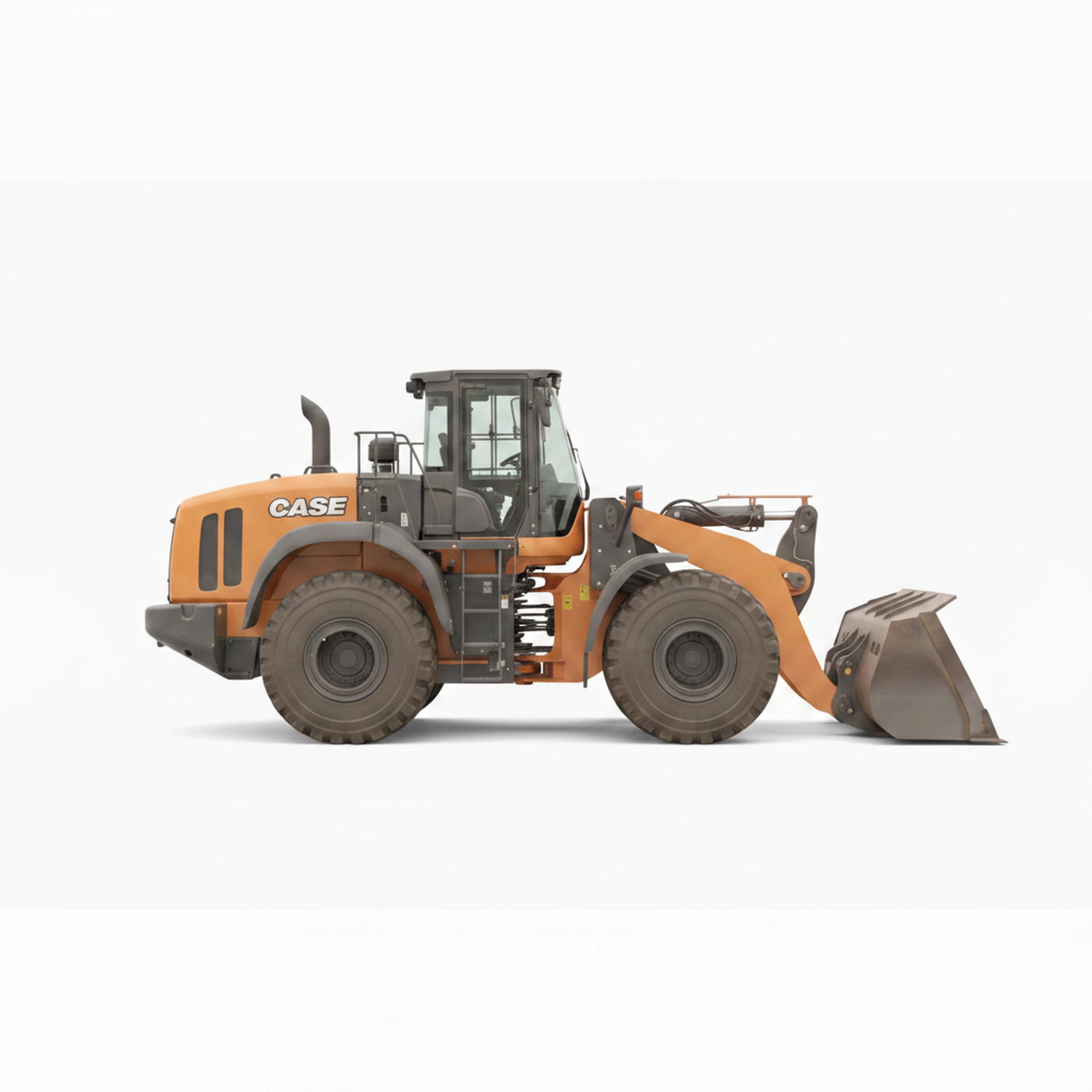

Case
1021G
270 hp
Engine power
56,366 lb (25,567 kg)
Operating weight
4.2 m3
bucket capacity
126 in (3,195 mm)
bucket width
4.8 in (123 mm)
dig depth
473 L
fuel tank capacity
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Operating weight | bucket capacity |
|---|---|---|---|---|
| Kawasaki 90Z7 | 97% | 272 hp | 53,308 lb (24,180 kg) | - |
| Kawasaki 90ZV | 95% | 275 hp | 51,324 lb (23,280 kg) | - |
| Hitachi ZW310-7 | 91% | 312 hp | 53,980 lb (24,485 kg) | - |
| XCMG XC978E | 91% | 308 hp | 52,977 lb (24,030 kg) | - |
| John Deere 744P | 91% | 316 hp | 54,911 lb (24,907 kg) | - |
| Kawasaki 90ZIV | 90% | 256 hp | 48,215 lb (21,870 kg) | - |
Documents
Full specifications
| Breakout Force | over 18,000 kg | ↗ |
| Cylinders | 6 | ↗ |
| Displacement | 531 in3 (8.7 L) | ↗ |
| Engine Power | 320 hp / 239 kW | ↗ |
| Max. Operating Weight | 63,442 lb (28,777 kg) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
