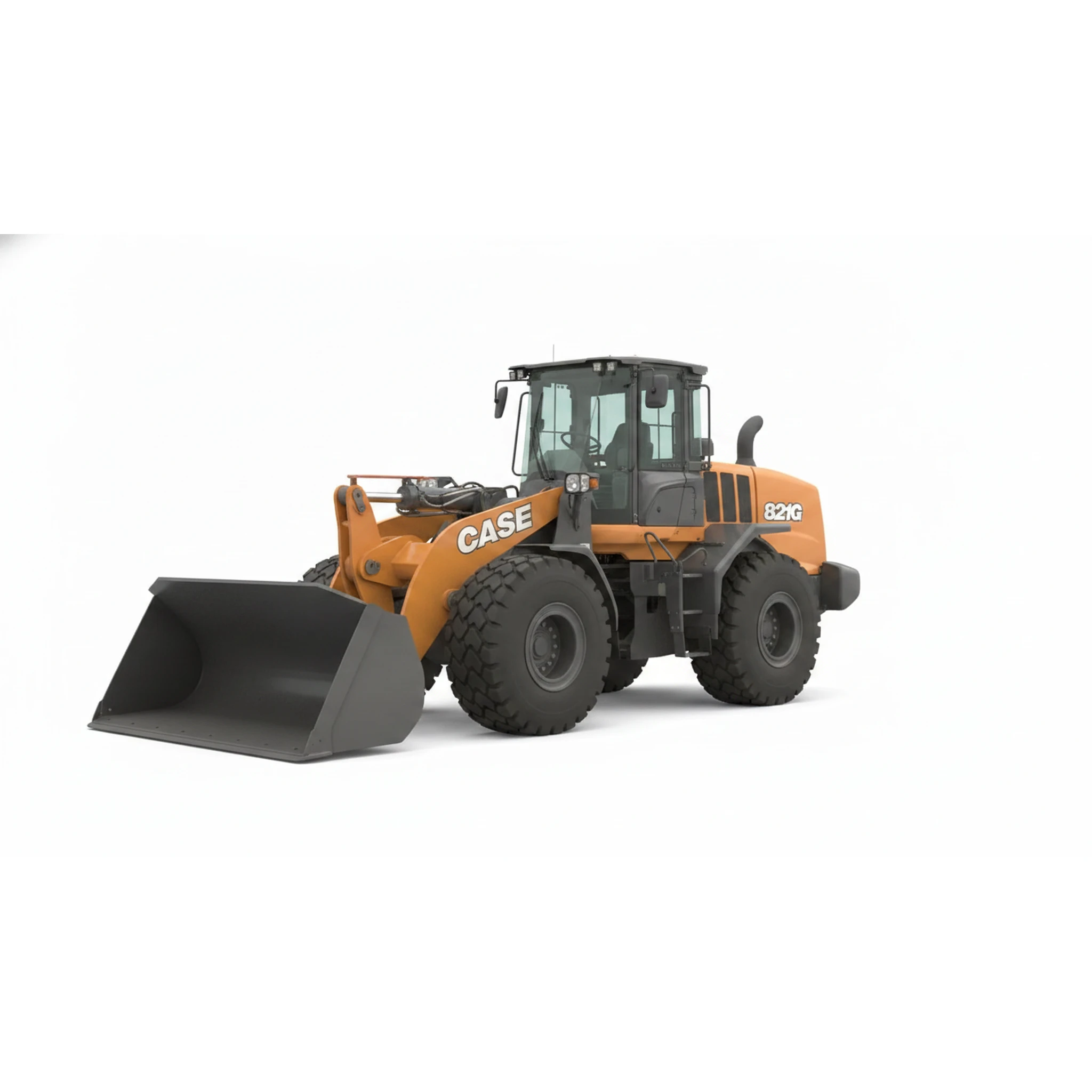

Case
821G
4.2 yd3
bucket capacity heaped
119 in (303 cm)
bucket width
76 gal
fuel tank capacity
162 in (412 cm)
hinge pin height
21,980 lb (9,970 kg)
lift capacity full height
132 in (334 cm)
wheelbase
Documents
Full specifications
| Breakout Force | 26,455 lb (12,000 kg) | ↗ |
| Cylinders | 6 | ↗ |
| Displacement | 411 in3 (6.7 L) | ↗ |
| Engine Power | 172 kW | ↗ |
| Max. Operating Weight | 43,354 lb (19,665 kg) | ↗ |
| Travel Speed | 40 km | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
