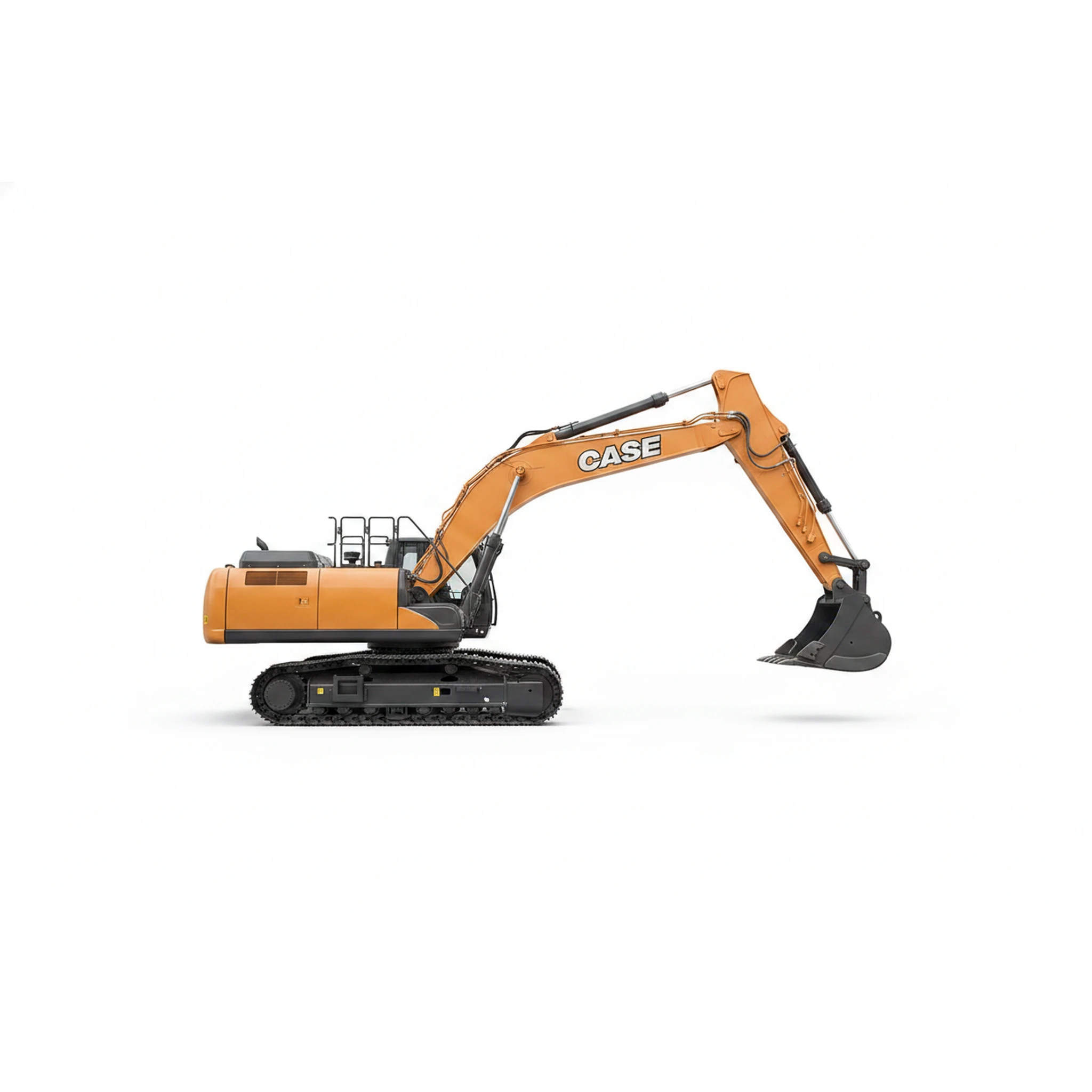

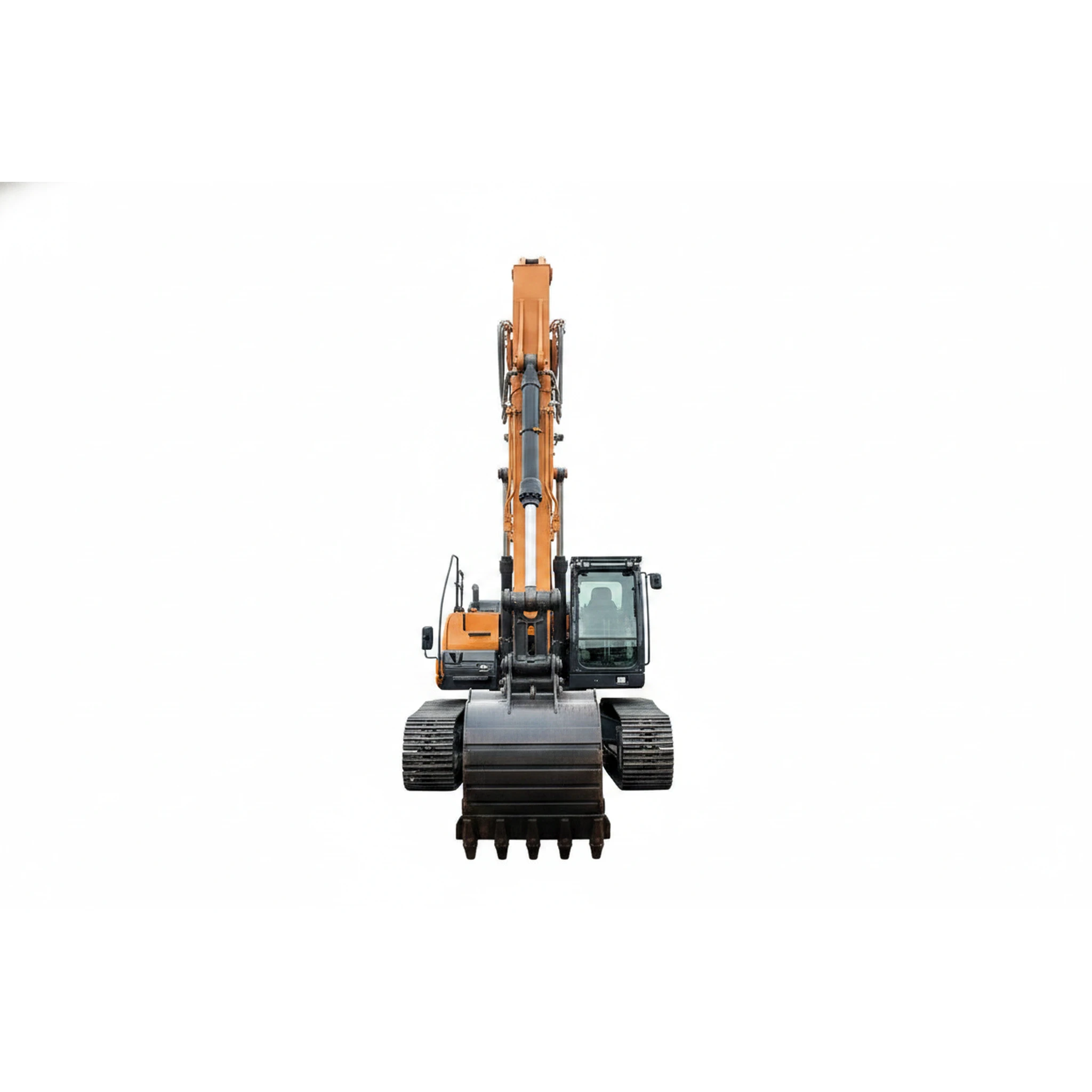

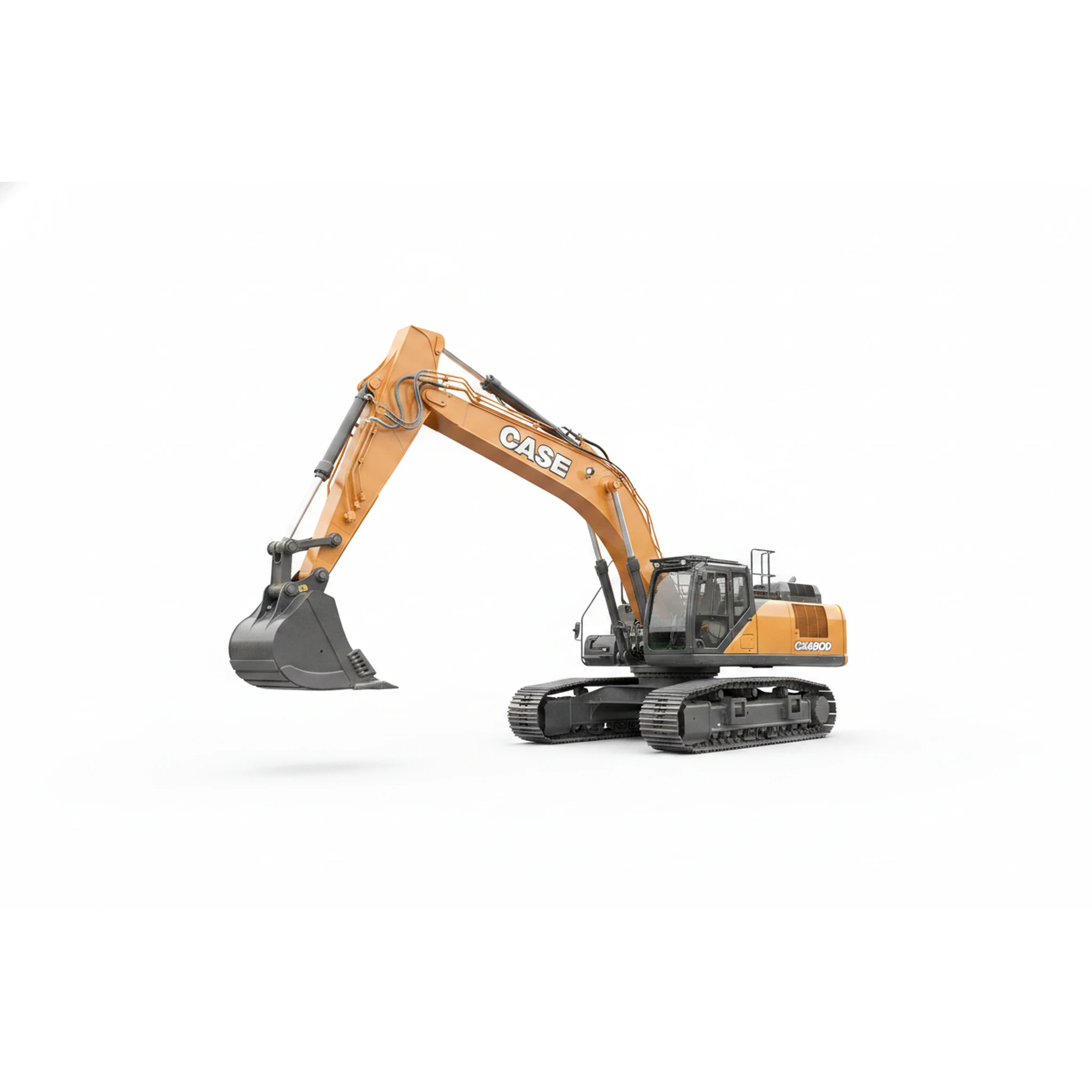

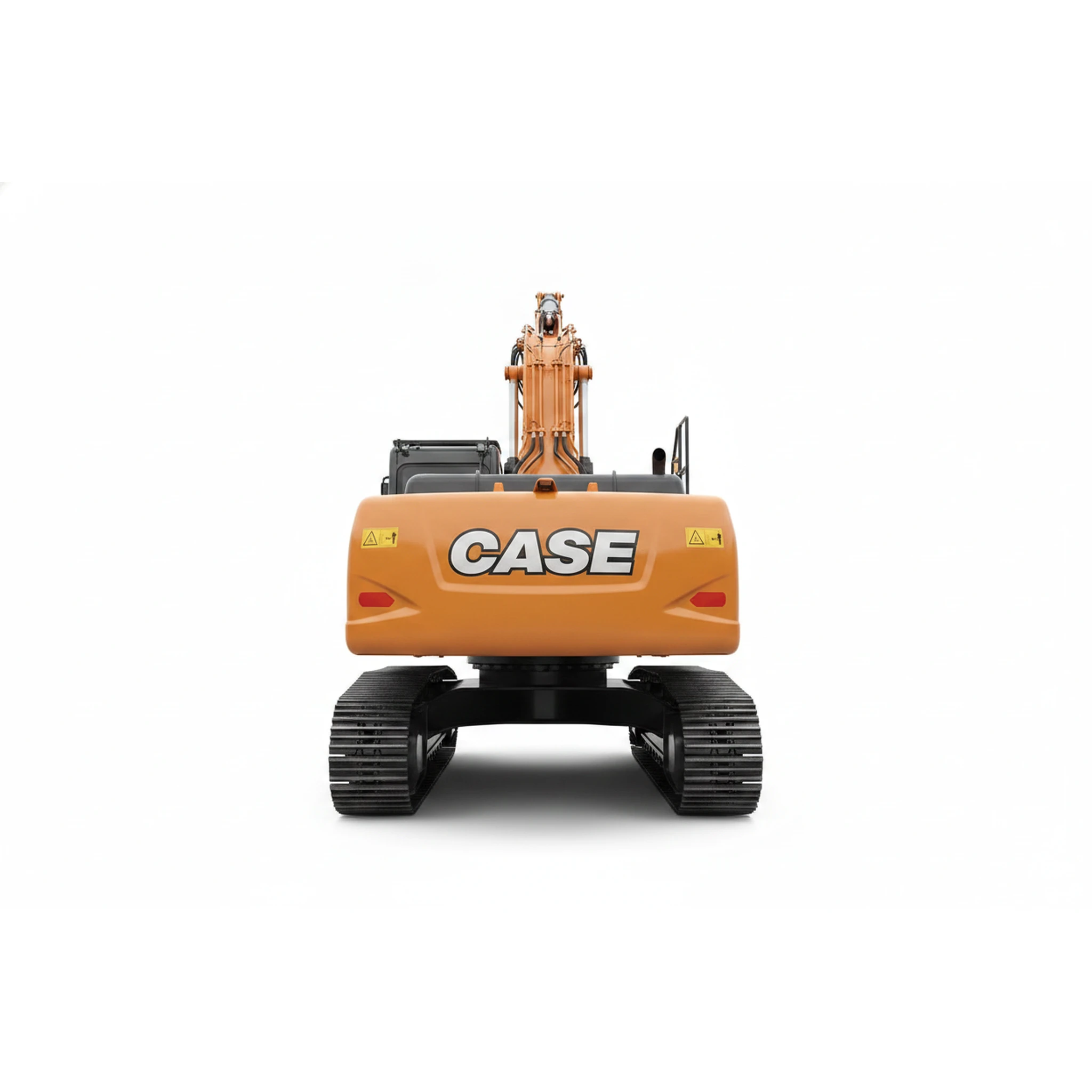

Case
CX490D
362 hp
Engine power
106,924 lb (48,500 kg)
Operating weight
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Operating weight |
|---|---|---|---|
| Hyundai Construction Equipment R480LC-9 | 99% | 355 hp | 106,042 lb (48,100 kg) |
| XCMG XE490DK | 98% | 376 hp | 106,042 lb (48,100 kg) |
| Hyundai Construction Equipment R480LC-9S | 97% | 351 hp | 109,129 lb (49,500 kg) |
| Hyundai Construction Equipment R520LC-9 | 97% | 355 hp | 112,436 lb (51,000 kg) |
| Hitachi ZX490-7G Large | 95% | 397 hp | 106,042 lb (48,100 kg) |
| Hyundai Construction Equipment R520LC-9S | 95% | 351 hp | 115,522 lb (52,400 kg) |
Documents
Full specifications
| Bucket Digging Force | 247 kN | ↗ |
| Cylinders | 6 | ↗ |
| Displacement | 600 in3 (9.8 L) | ↗ |
| Drawbar Pull | 339 kN | ↗ |
| Engine (ISO 14396) | 270 kW | ↗ |
| Engine Model | Isuzu AQ-6UZ1X (Tier 4 Final) | ↗ |
| Engine Power | 270 kW | ↗ |
| Max Torque | 1363 Nm | ↗ |
| Max Travel Speed | 5.3 km/h | ↗ |
| Operating Weight | 106,924 lb (48,500 kg) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
