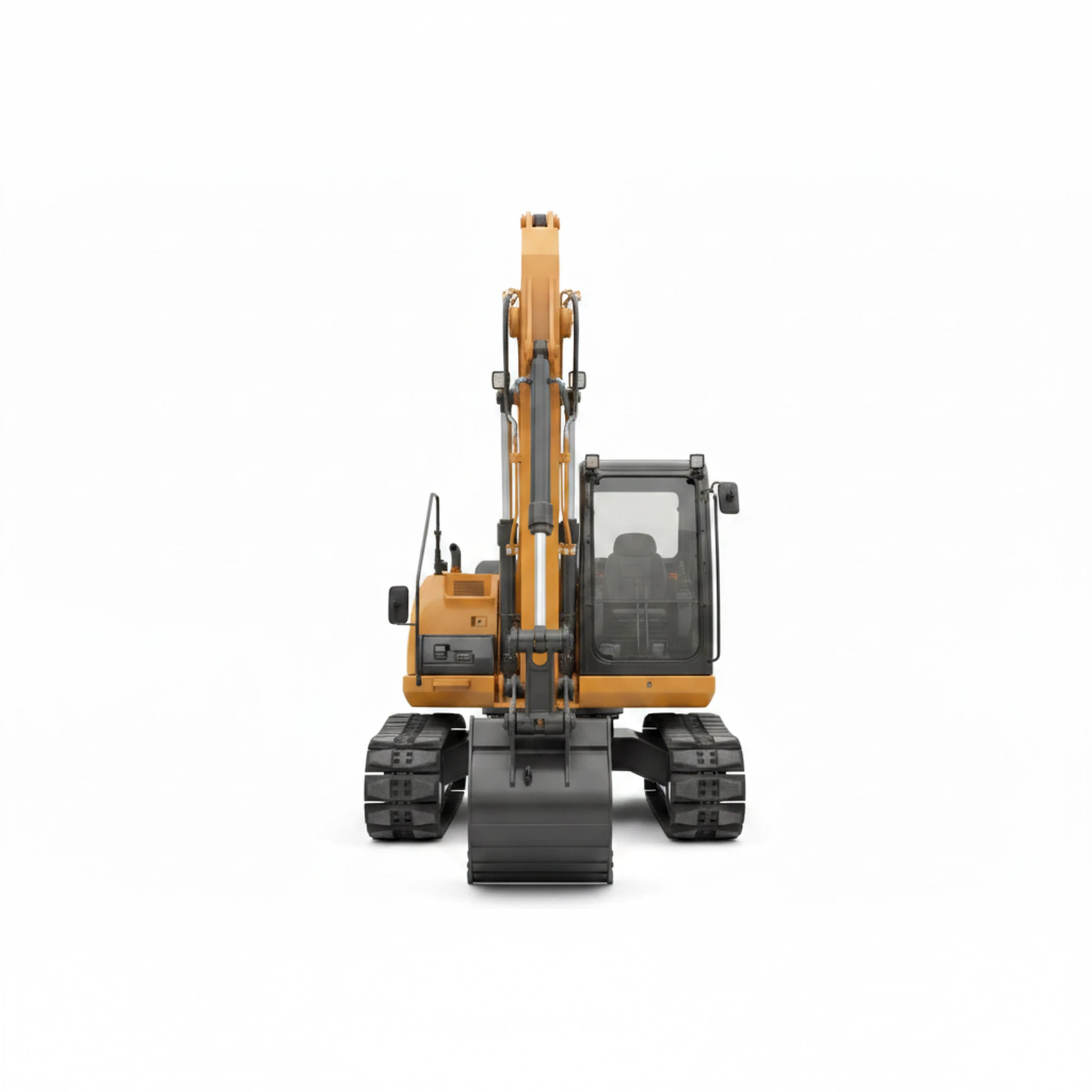

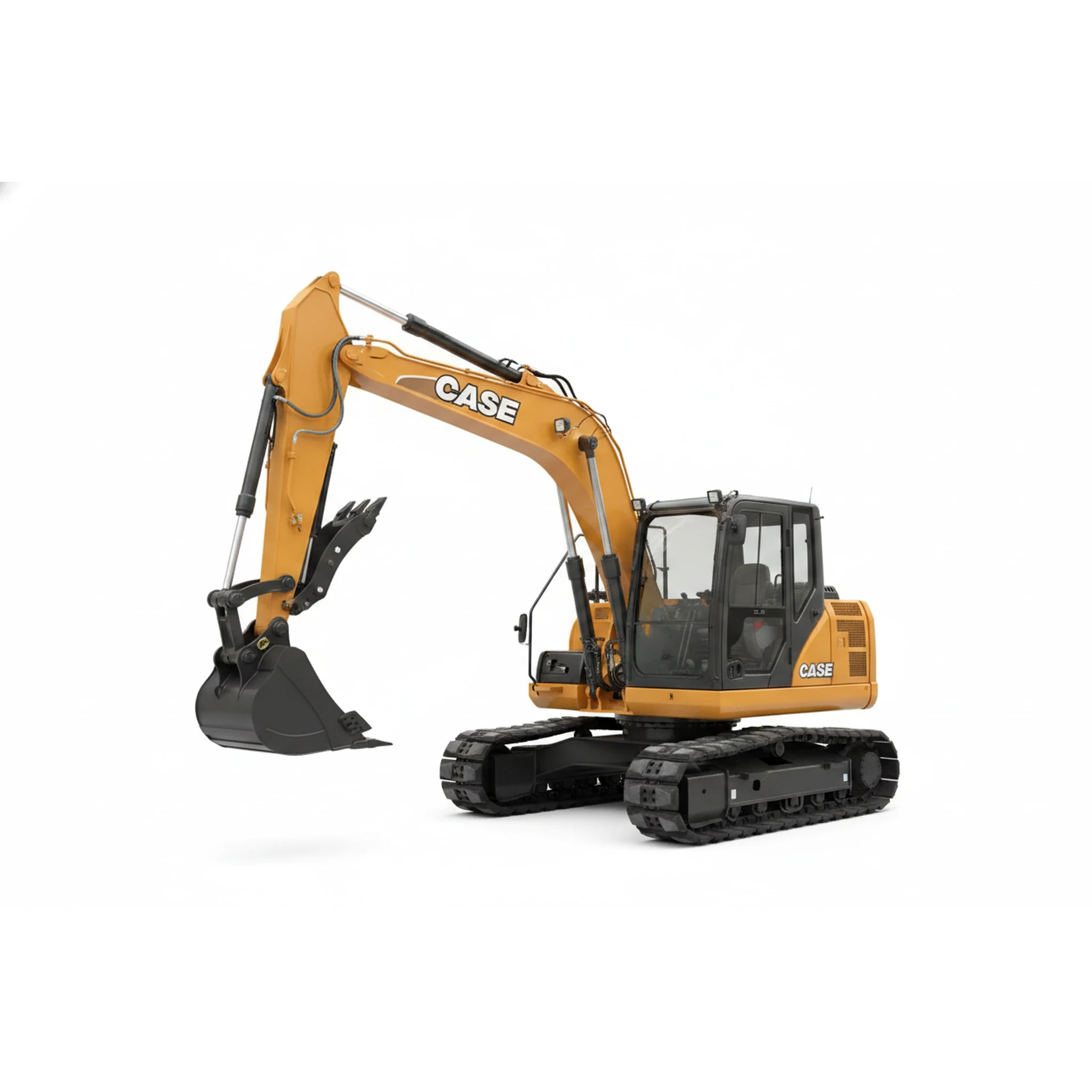

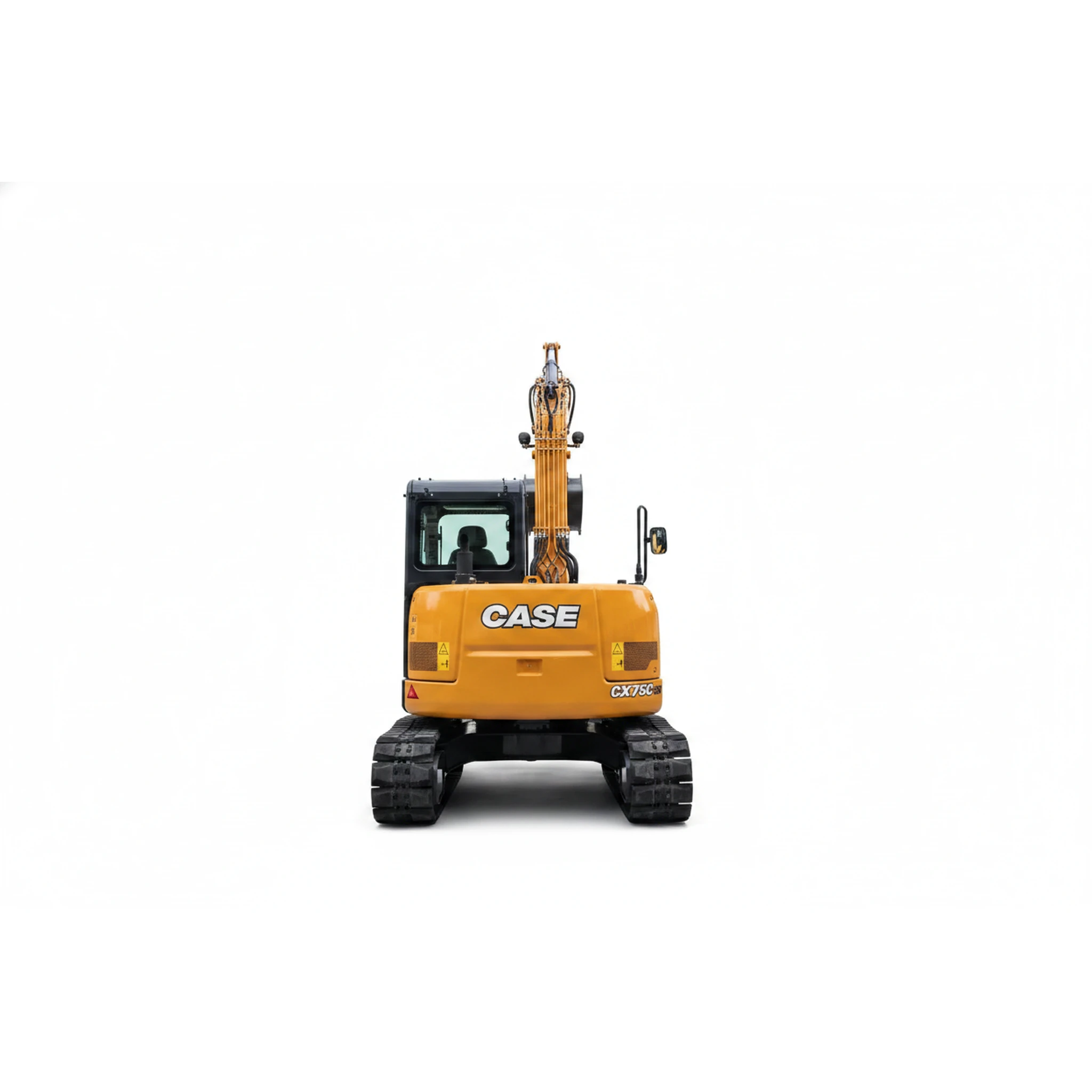

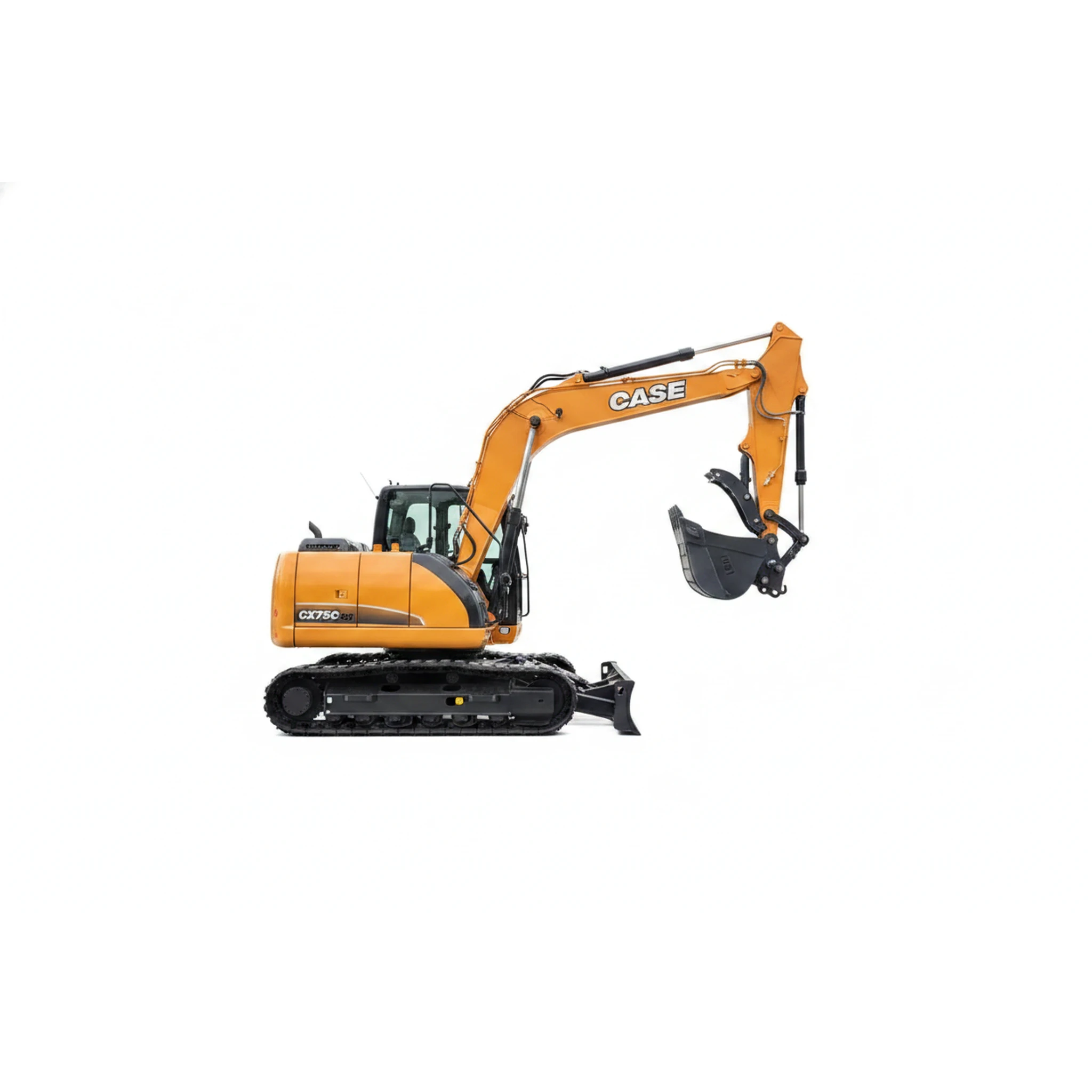

Case
CX75C SR
55 hp
Engine power
18,398 lb (8,345 kg)
Operating weight
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Operating weight |
|---|---|---|---|
| Volvo ECR88D | 96% | 55 hp | 19,952 lb (9,050 kg) |
| Takeuchi TB280FR | 89% | 69 hp | 18,805 lb (8,530 kg) |
| Takeuchi TB290 | 89% | 69 hp | 18,779 lb (8,518 kg) |
| XCMG XE75SL | 88% | 57 hp | 23,369 lb (10,600 kg) |
| Hitachi ZX95US-USB-7 | 87% | 68 hp | 20,029 lb (9,085 kg) |
| Kobelco SK75SR-7 | 87% | 72 hp | 18,700 lb (8,482 kg) |
Documents
Full specifications
| Displacement | 2179 cc | ↗ |
| Drawbar Pull | 59.5 kN | ↗ |
| Engine Model | Isuzu AP-4LE2X (Tier 4) | ↗ |
| Engine Power | 55 hp | ↗ |
| Fuel Tank | 120 L | ↗ |
| Hydraulic Flow | 2 x 74 L/min | ↗ |
| Max Torque | 193 Nm | ↗ |
| Max Travel Speed | 5.1 km/h | ↗ |
| Operating Weight | 18,012–18,783 lb (8,170–8,520 kg) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
