Excavators - Standard

Caterpillar 320

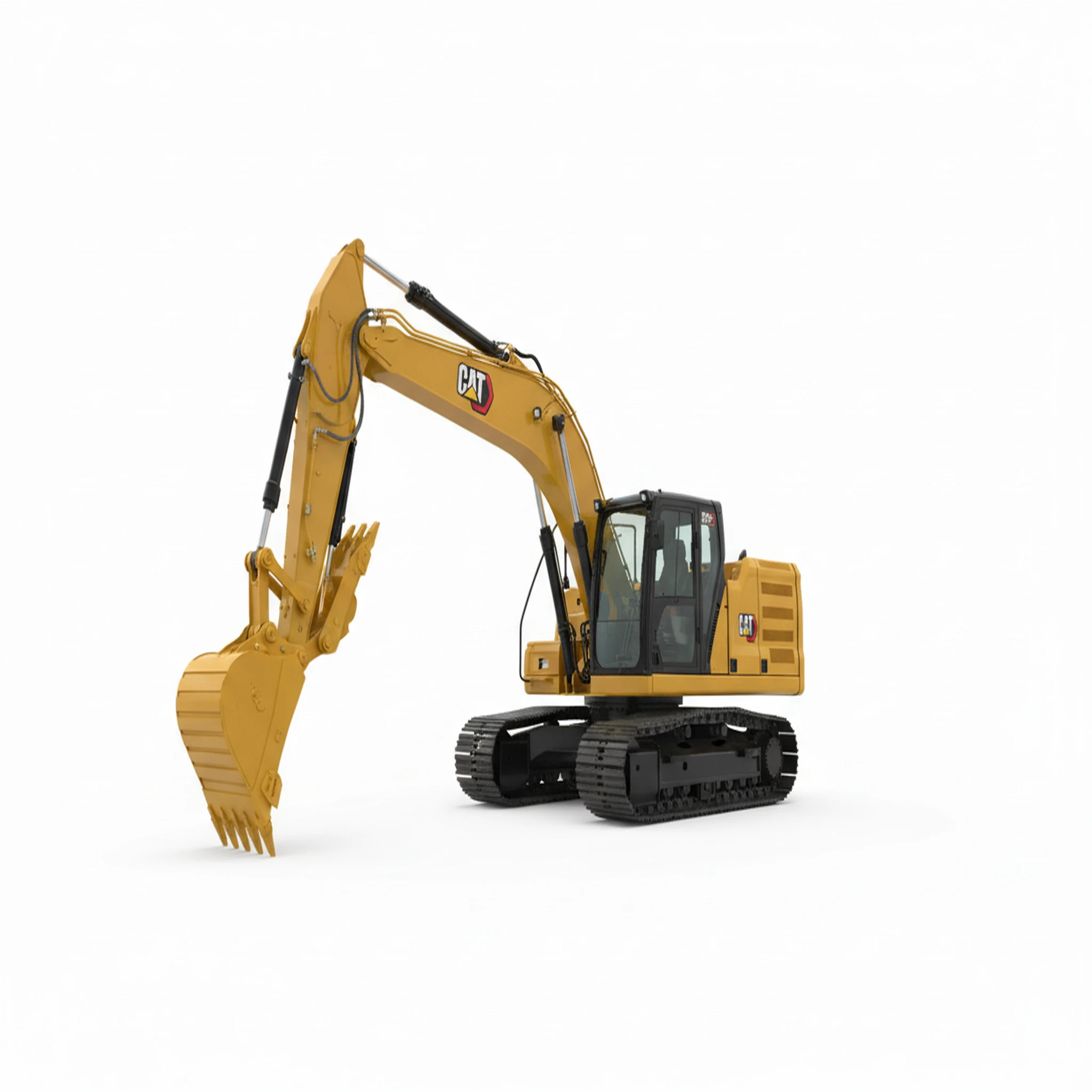

Name: Caterpillar 320
Brand: Caterpillar

22.7 Ton Standard Excavator

Mid-size hydraulic excavator with 22.7 ton operating weight and 1.56 yd³ bucket capacity. Features Cat C4.4 ACERT engine delivering 162 hp for construction, demolition, and earthmoving applications.

Key Specs

Operating Weight 50,100 lb (22,700 kg)

Engine Power 162 hp (121 kW)

Bucket Capacity 1.56 yd³ (1.19 m³)

Tail Swing Conventional

Track Type Rubber

Download JSON View datasheet

Tail Swing	Conventional
Track Type	Rubber
Dump Height	None
Engine Power	162 hp (121 kW)
Dig Depth Max	16.47 ft (5.02 m)
Bucket Capacity	1.56 yd³ (1.19 m³)
Width Retracted	None
Operating Weight	50,100 lb (22,700 kg)

Tail Swing	Conventionnel
Track Type	Caoutchouc
Dump Height	None
Engine Power	162 hp (121 kW)
Dig Depth Max	16,47 pi (5,02 m)
Bucket Capacity	1,56 yd³ (1,19 m³)
Width Retracted	None
Operating Weight	50 100 lb (22 700 kg)

Tail Swing	Convencional
Track Type	Caucho
Dump Height	None
Engine Power	162 hp (121 kW)
Dig Depth Max	16.47 pies (5.02 m)
Bucket Capacity	1.56 yd³ (1.19 m³)
Width Retracted	None
Operating Weight	50,100 lb (22,700 kg)

Cat C4.4 ACERT engine with 162 hp (121 kW) net power
1.56 yd³ (1.19 m³) HD bucket capacity
Maximum digging depth of 16.47 ft (5.02 m)
790 mm (31 in) triple grouser track shoes
429 L/min (113 gal/min) hydraulic flow rate
35,000 kPa (5,075 psi) maximum equipment pressure
ISO 12117-2:2008 ROPS certified cab
70 dB(A) interior sound level

Moteur Cat C4.4 ACERT avec 162 hp (121 kW) de puissance nette
Capacité de godet HD de 1,56 yd³ (1,19 m³)
Profondeur de creusage maximale de 16,47 pi (5,02 m)
Chenilles à crampons triples de 790 mm (31 po)
Débit hydraulique de 429 L/min (113 gal/min)
Pression maximale d'équipement de 35 000 kPa (5 075 psi)
Cabine certifiée ROPS ISO 12117-2:2008
Niveau sonore intérieur de 70 dB(A)

Motor Cat C4.4 ACERT con 162 hp (121 kW) de potencia neta
Capacidad de cuchara HD de 1.56 yd³ (1.19 m³)
Profundidad máxima de excavación de 16.47 pies (5.02 m)
Zapatas de oruga triple garra de 790 mm (31 pulg)
Caudal hidráulico de 429 L/min (113 gal/min)
Presión máxima de equipo de 35,000 kPa (5,075 psi)
Cabina certificada ROPS ISO 12117-2:2008
Nivel de sonido interior de 70 dB(A)

General construction and excavation
Site preparation and grading
Utility installation and trenching
Demolition and material handling
Road construction and maintenance
