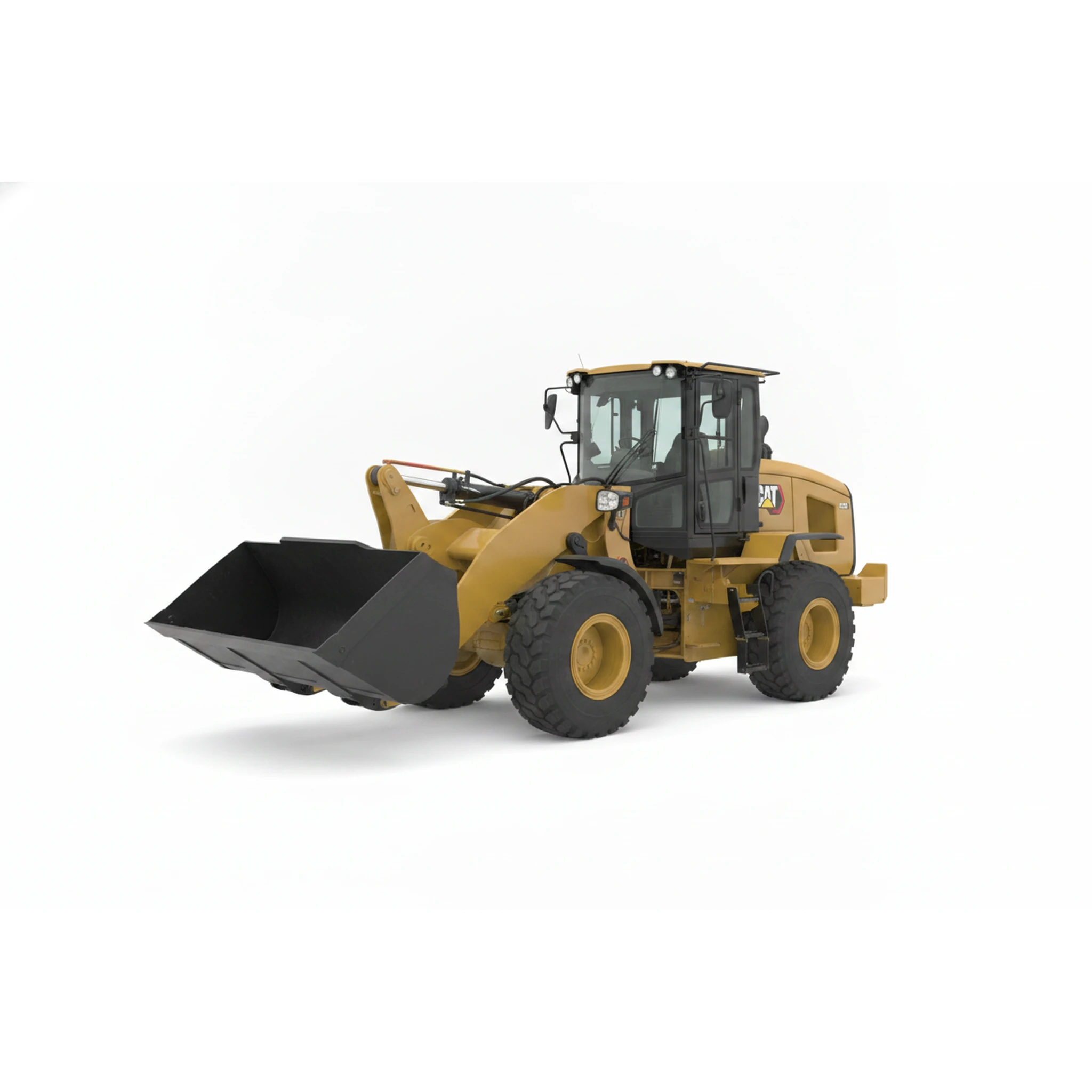

Caterpillar
926M
116 hp
Engine power
28,195 lb (12,789 kg)
Operating weight
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Operating weight |
|---|---|---|---|
| Hitachi ZW160-7 | 96% | 123 hp | 28,704 lb (13,020 kg) |
| John Deere 444P | 93% | 124 hp | 25,814 lb (11,709 kg) |
| JCB 422ZX | 92% | 128 hp | 26,455 lb (12,000 kg) |
| XCMG XC938U | 91% | 133 hp | 29,762 lb (13,500 kg) |
| XCMG XC938E | 91% | 133 hp | 29,762 lb (13,500 kg) |
| Komatsu WA270-8 | 89% | 149 hp | 28,208 lb (12,795 kg) |
Documents
Full specifications
| Bucket Capacity Range | 1.9–2.5 m3 / 2.5–3.3 yd3 | ↗ |
| Displacement | 7.01 L / 427 in3 | ↗ |
| Engine Model | Cat C7.1 | ↗ |
| Engine Power Maximum | 125 kW / 168 hp | ↗ |
| Fuel Tank | 195 L / 51.5 gal | ↗ |
| Maximum Travel Speed | 40 km/h / 25 mph | ↗ |
| Net Power (Standard Mode) | 116 kW / 156 hp | ↗ |
| Operating Weight | 12 789 kg / 28,193 lb | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
