Dragon Products

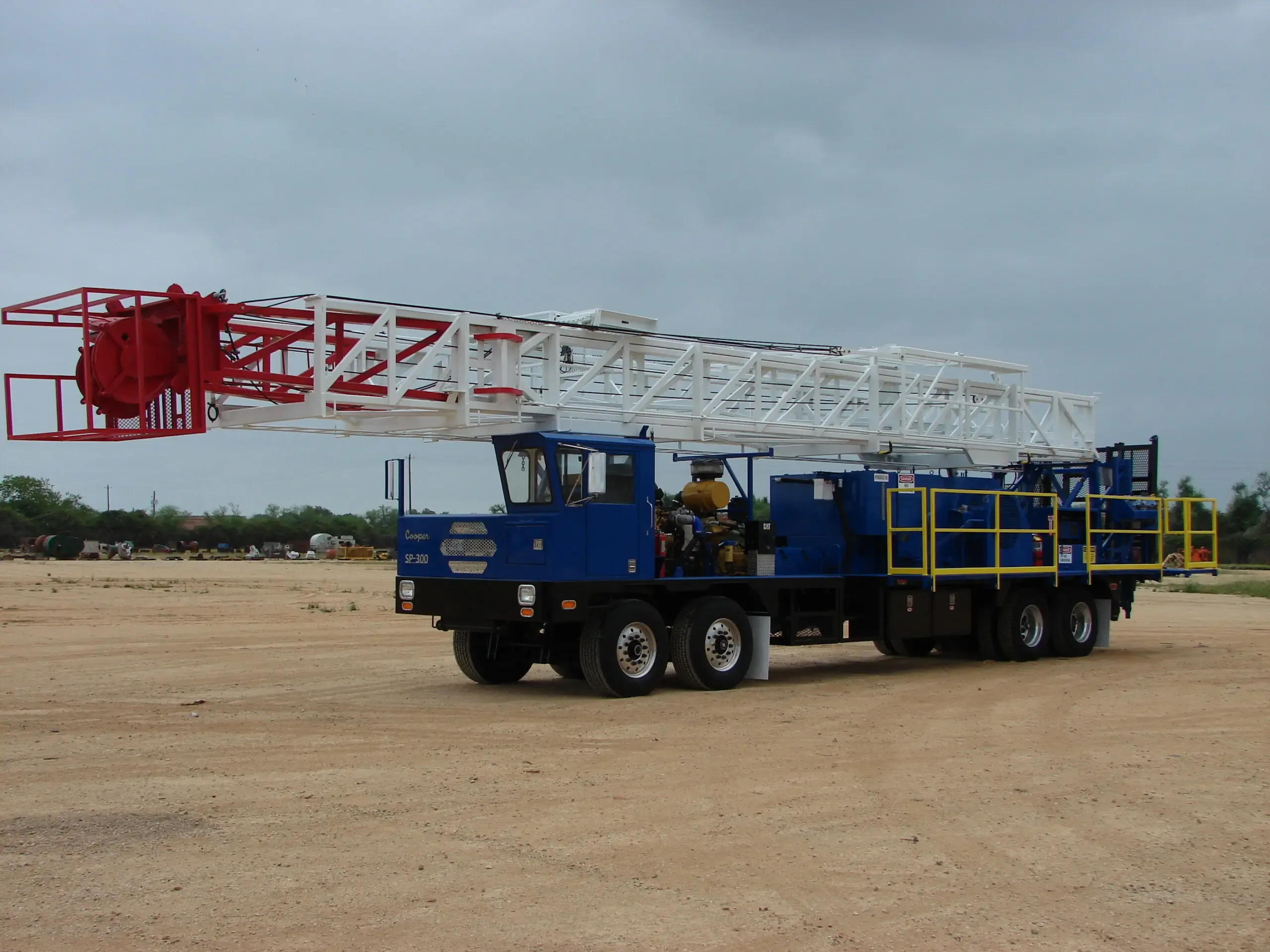

Cooper SP300
Full specifications
| Assist Brake | Air cooled disc brake [optional] | ↗ |
| Carrier | 4 axle, 2 steer axles and 2 drive axles. | ↗ |
| Certification | API 4F, | ↗ |
| Certifications | API 4F | ↗ |
| Clear height | 71' | ↗ |
| Drawworks brake system | Conventional band brakes. | ↗ |
| Drawworks brake system cooling | Open circuit splash. | ↗ |
| Engine HP rating | 350-400 | ↗ |
| Main Drum | 38" dia x 10" wide x 1" grooving with PO224 clutch | ↗ |
| Mast capacity | 150,000 lbs [4-lines] | ↗ |
| Mast height | 71' | ↗ |
| Maximum travel speed | 55 mph | ↗ |
| Maximum wind rate | 57 knots (66 mph) | ↗ |
| RAD gear box to sand drum | 140-1 chain | ↗ |
| Sand Drum | 38" dia x 8" wide with PO 124 clutch | ↗ |
| Sand Drum Capacity | 14,000' of 9/16" cable | ↗ |
| Sand drum to main drum | 140-1 chain | ↗ |
| Service Winch | 12,000 lb capacity | ↗ |
| Specification | Power Flow | ↗ |
| Trans to RAD gear box | 1710 Spicer drive shaft | ↗ |
| Trans to rear drive axles | 1710 Spice drive shaft. | ↗ |
| Tubing/rods | Single tubing/double rods | ↗ |
| Workfloor | Hydraulic fold and unfold. | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
