Hyundai Construction Equipment

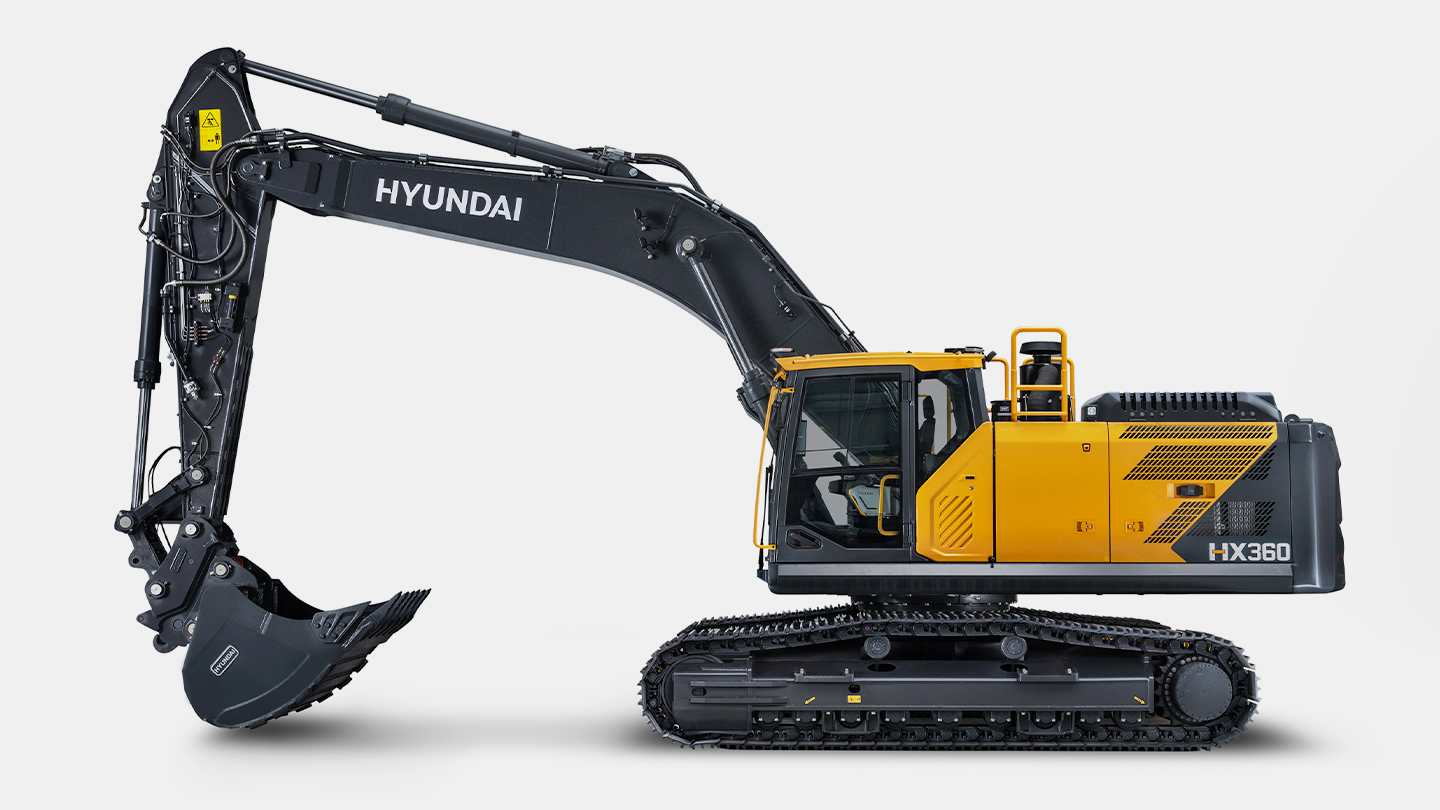

HX360L
303 hp
Engine power
24.6 ft (7.5 m)
Max dig depth
36.5 ft (11.1 m)
Max reach
80,226 lb (36,390 kg)
Operating weight
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Max dig depth | Max reach |
|---|---|---|---|---|
| Kobelco SK350LC-11 | 97% | - | 24.1 ft (7.3 m) | 36.9 ft (11.2 m) |
| Hitachi ZX350LC-7 / ZX350LCN-7 | 96% | 282 hp | - | 36.8 ft (11.2 m) |
| Sany SY365C | 96% | - | 23 ft (7.0 m) | - |
| Volvo EC350E | 96% | 303 hp | 24 ft (7.3 m) | 36 ft (11.0 m) |
| Volvo EC370 | 96% | - | 24 ft (7.3 m) | 36 ft (11.0 m) |
| XCMG XE370D | 96% | 284 hp | - | - |
Documents
Full specifications
| Arm Length | 126 in (3,200 mm) | ↗ |
| Boom Length | 256 in (6,500 mm) | ↗ |
| Bucket Capacity | 1.81 m³ | ↗ |
| DEF/AdBlue Tank | 72 L | ↗ |
| Emission Standard | STAGE V | ↗ |
| Engine Model | HYUNDAI DX08 | ↗ |
| Fuel Tank | 600 L | ↗ |
| Hydraulic Tank | 247 L | ↗ |
| Max Digging Depth | 296 in (7,510 mm) | ↗ |
| Max Digging Reach | 438 in (11,115 mm) | ↗ |
| Max Torque | 125.43 kgf·m | ↗ |
| Operating Weight | 36.39 ton | ↗ |
| Rated Power | 226 kW | ↗ |
| Swing Speed | 9.7 rpm | ↗ |
| Travel Speed | 5.6 km/h | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
