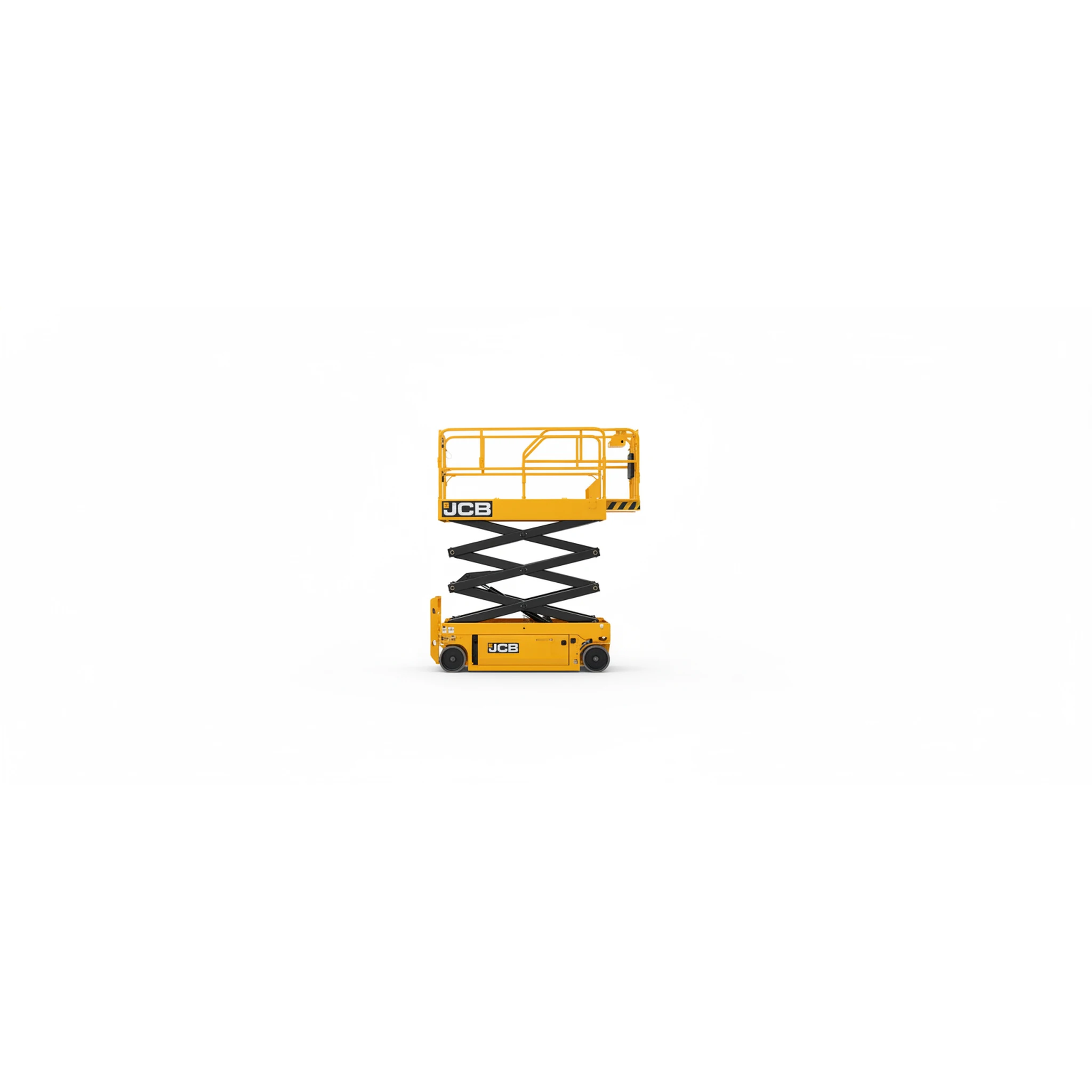

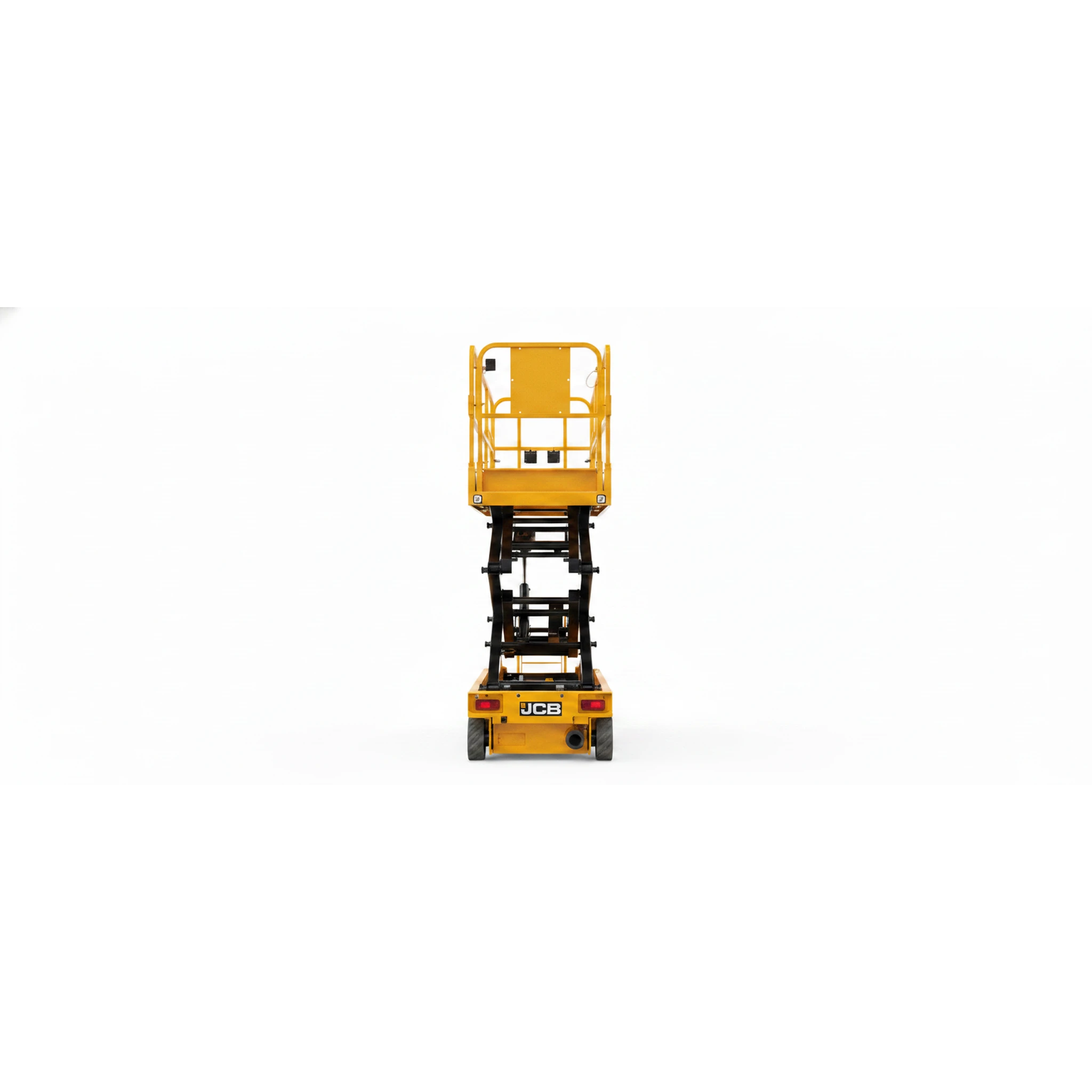

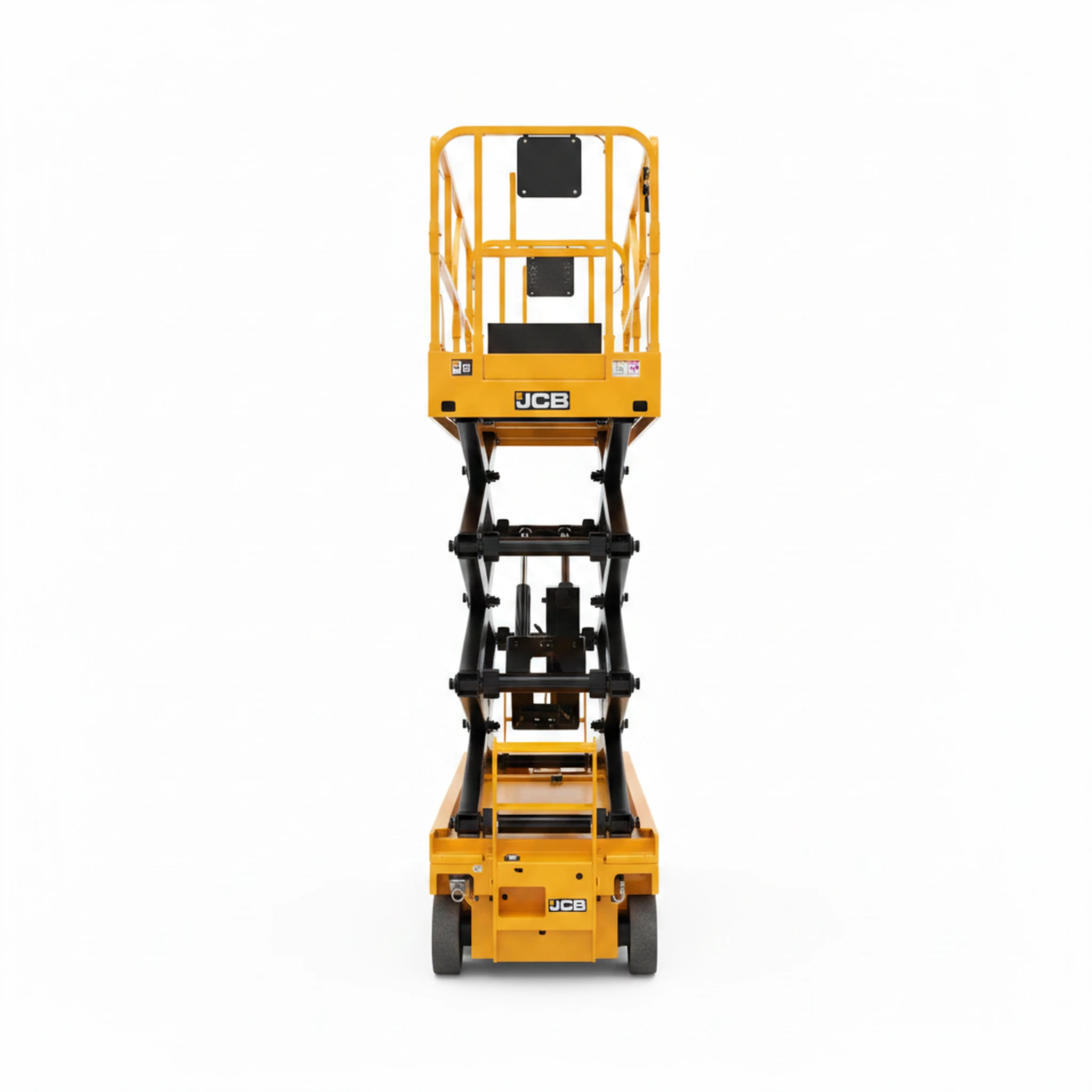

JCB
S2632E
1,213 lb (550 kg)
Platform capacity
32.6 ft (9.9 m)
Working height
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Platform capacity | Working height |
|---|---|---|---|
| Genie GS-2632 | 95% | 1,102 lb (500 kg) | 32 ft (9.8 m) |
| Snorkel S4726E | 91% | 1,001 lb (454 kg) | 32.2 ft (9.8 m) |
| XCMG XG1012AC | 91% | 992 lb (450 kg) | 32.8 ft (10.0 m) |
| XCMG XG1012HA | 91% | 992 lb (450 kg) | 32.8 ft (10.0 m) |
| XCMG XG1012AC-AS | 91% | 992 lb (450 kg) | 32.8 ft (10.0 m) |
| Haulotte Compact 10 | 90% | 992 lb (450 kg) | 33.3 ft (10.1 m) |
Documents
Full specifications
| Gradeability | 25 % | ↗ |
| Load Capacity | 1,213 lbs (550 kg) | ↗ |
| Maximum Operating Slope Front-to-Back | 3 degrees | ↗ |
| Maximum Operating Slope Side-to-Side | 1.5 degrees | ↗ |
| Maximum Platform Height | 26.6 ft (8.1 m) | ↗ |
| Maximum Working Height | 32.6 ft (9.9 m) | ↗ |
| Overall Width (Stowed) | 2.7 ft (0.8 m) | ↗ |
| Platform Capacity Indoor | Two-person persons | ↗ |
| Weight | 4,546 lbs (2,062 kg) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
