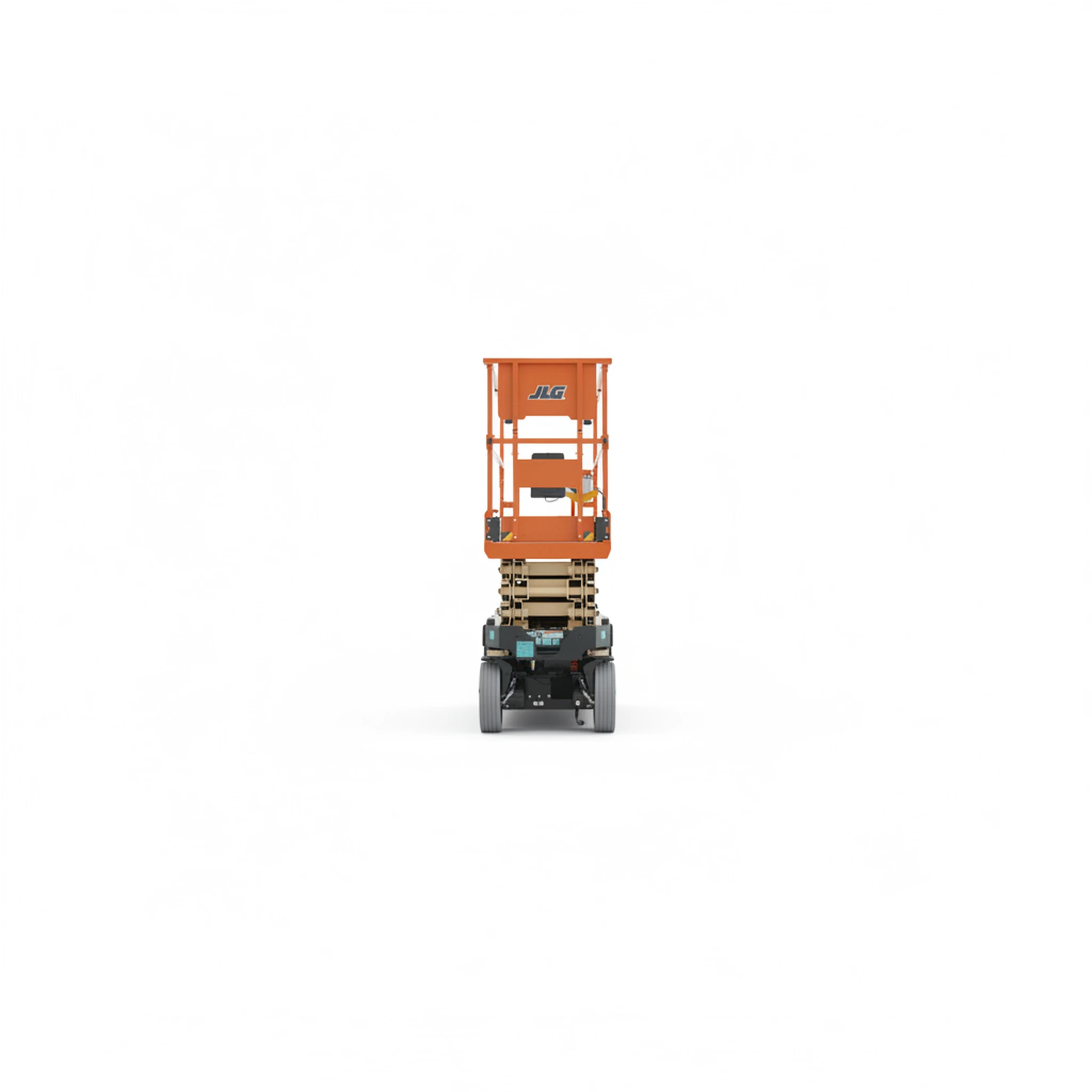

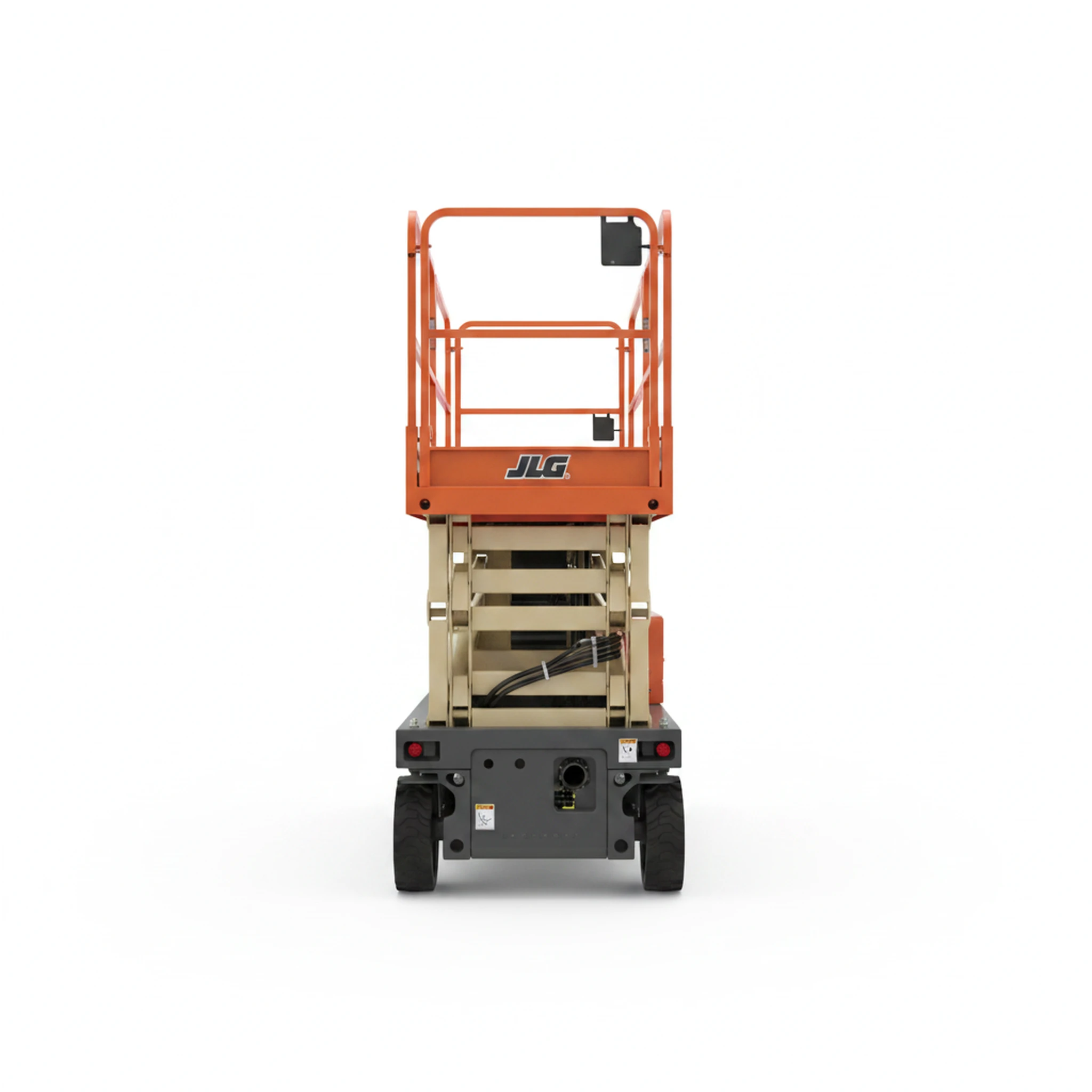

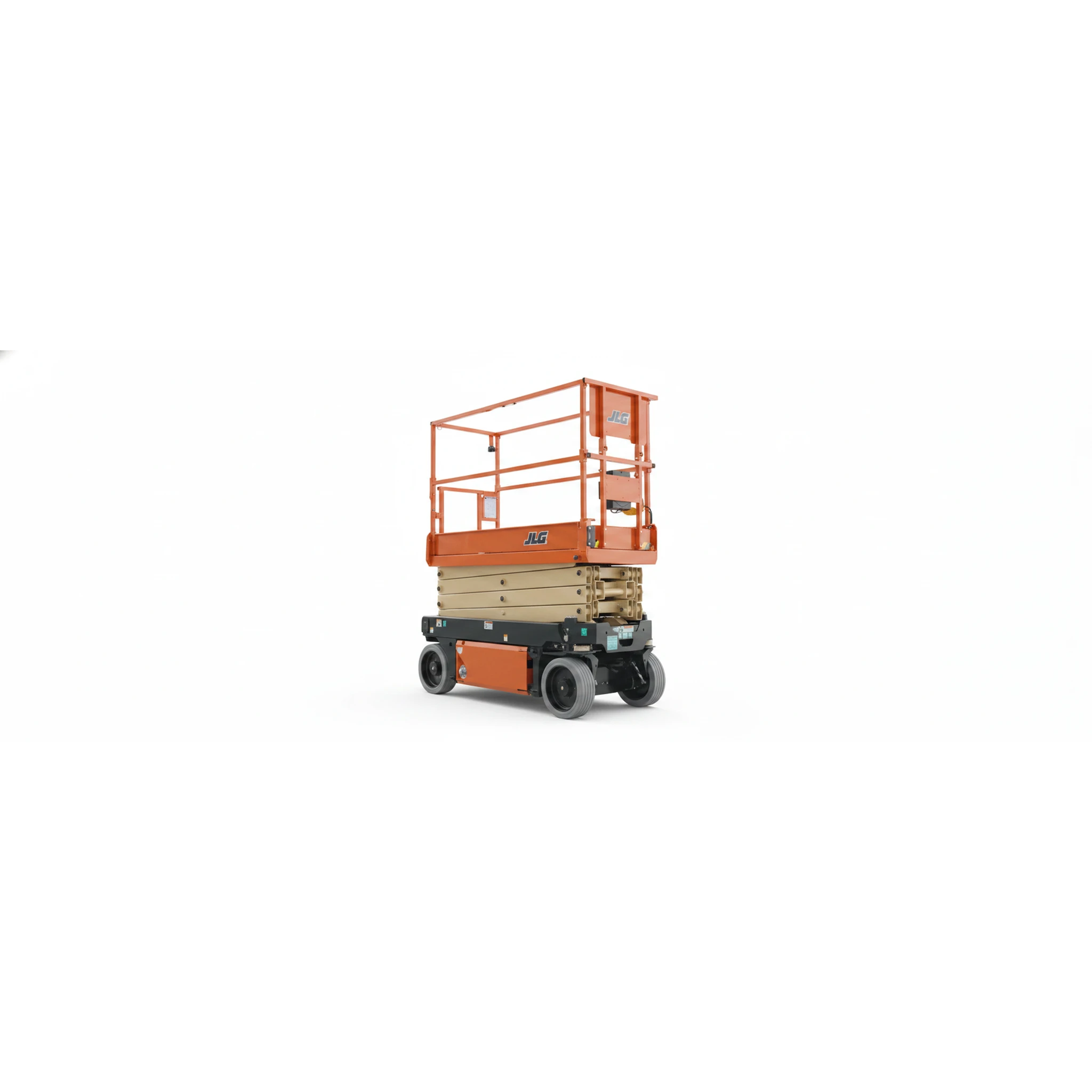

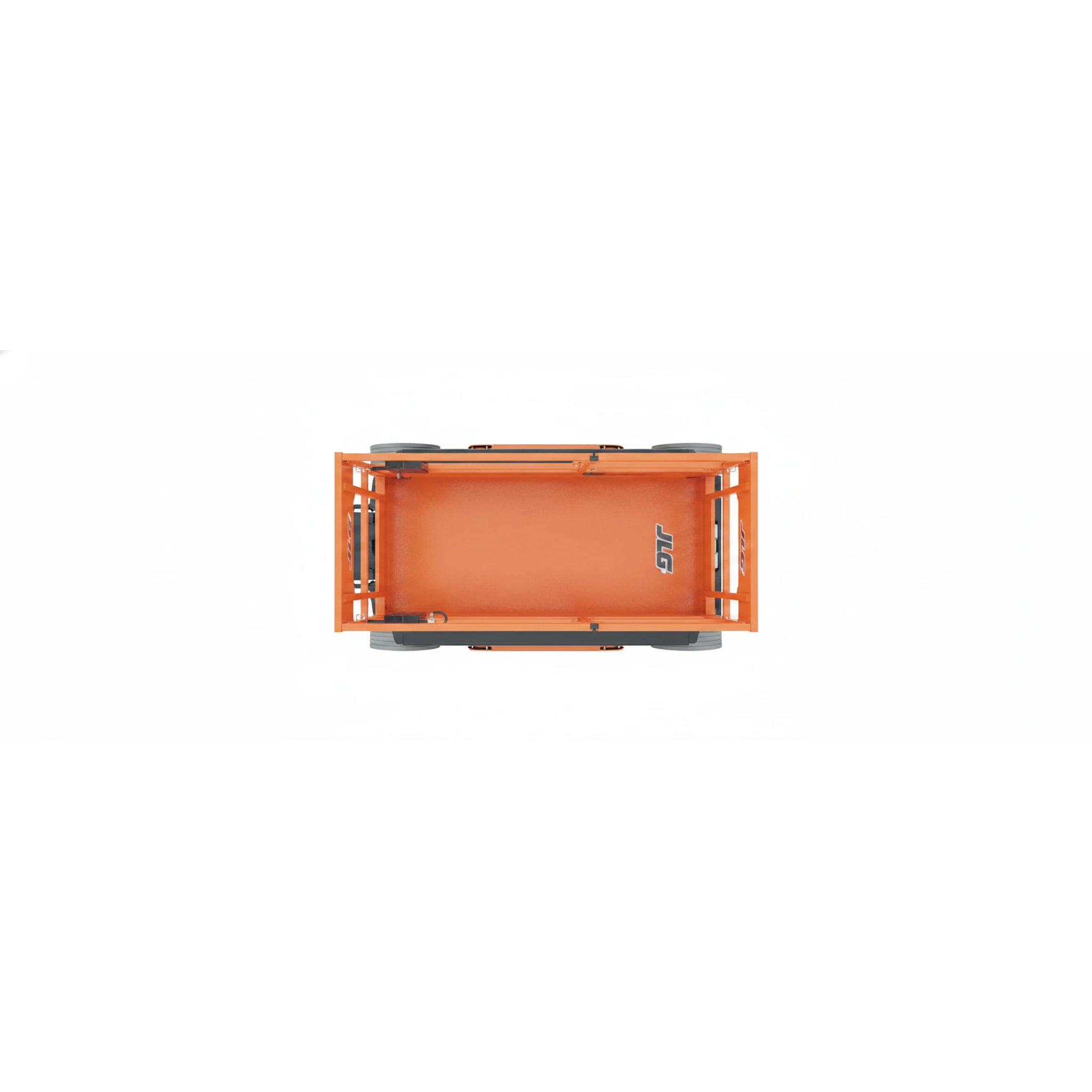

JLG
ERT4069
10,560 lb (4,790 kg)
Operating weight
800 lb (363 kg)
Platform capacity
40.2 ft (12.3 m)
Working height
5.6 km/h
drive speed lowered
2 WD AC Electric
drive type
35%
gradeability
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Operating weight | Platform capacity | Working height |
|---|---|---|---|---|
| MEC 4069RT | 98% | 11,133 lb (5,050 kg) | 800 lb (363 kg) | 40 ft (12.2 m) |
| MEC 4069ERT | 97% | 11,354 lb (5,150 kg) | 800 lb (363 kg) | 40 ft (12.2 m) |
| Genie GS-4069-RT | 95% | 10,393 lb (4,714 kg) | - | 46.9 ft (14.3 m) |
| Snorkel S2255RT | 93% | - | 926 lb (420 kg) | - |
| Genie GS-4069R | 92% | 10,393 lb (4,714 kg) | - | 46.9 ft (14.3 m) |
| Skyjack SJ6832 RT | 91% | 8,876 lb (4,026 kg) | - | 38.5 ft (11.7 m) |
Documents
Full specifications
| Gradeability | 35% | ↗ |
| Machine Height | 8 ft 7 in | ↗ |
| Machine Width | 69.3 in (176 cm) | ↗ |
| Max Platform Capacity | 800 lb (363 kg) | ↗ |
| Max Platform Height | 40 ft 3 in | ↗ |
| Max Tilt Rating | 2.5 Degree | ↗ |
| Number of Occupants | 3 | ↗ |
| Platform Extension Capacity | 300 lb (136 kg) | ↗ |
| Platform Height | 40 ft (12.2 m) | ↗ |
| Turning Radius | 6 ft 11 in | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
