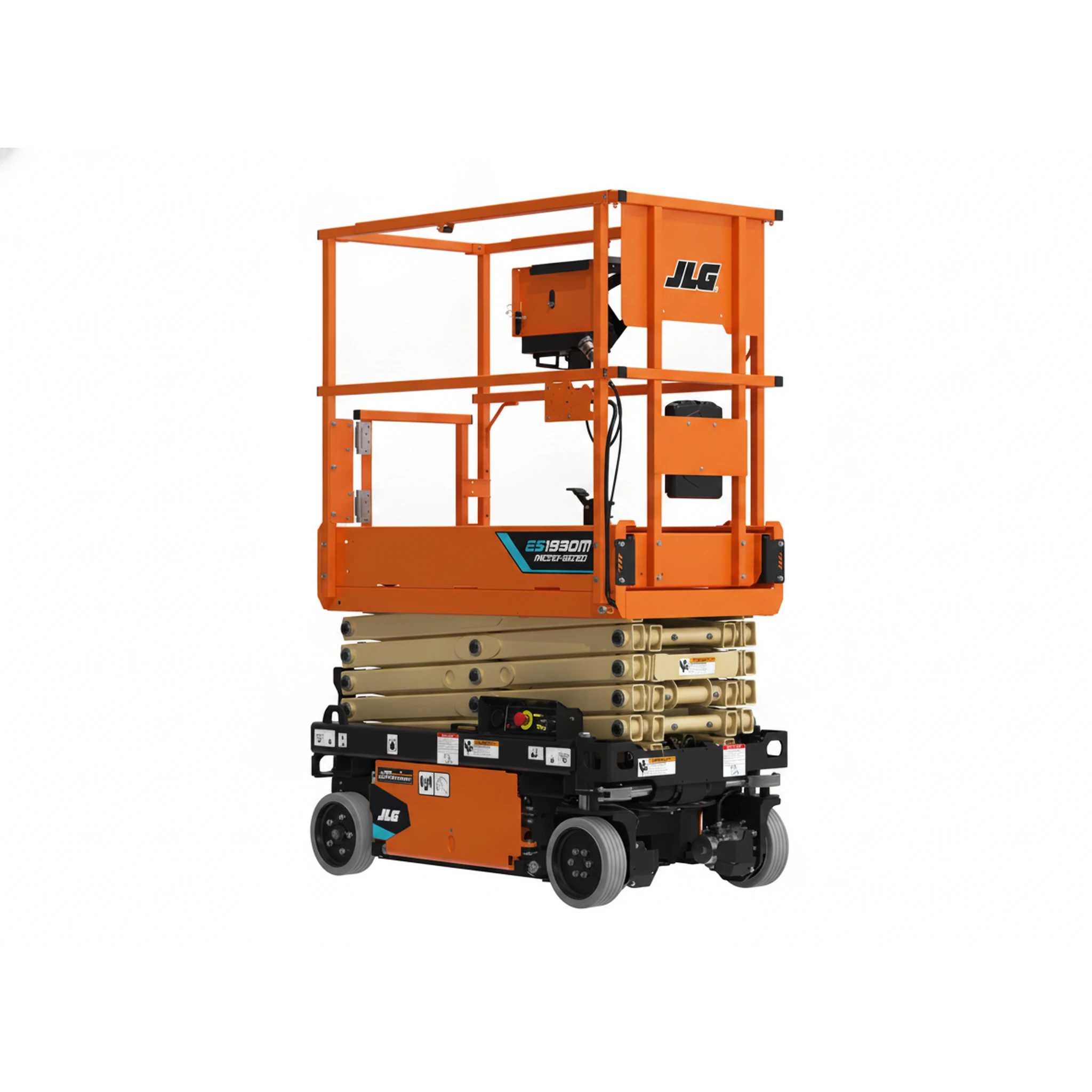

JLG
ES1930M
500 lb (227 kg)
Platform capacity
18.5 ft (5.6 m)
Working height
18 ft (5.5 m)
platform height
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Platform capacity | Working height | platform height |
|---|---|---|---|---|
| JCB S1932E | 99% | 507 lb (230 kg) | 18.7 ft (5.7 m) | - |
| MEC Micro 19-XD | 99% | 500 lb (227 kg) | 19 ft (5.8 m) | - |
| Dingli JCPT0807PA | 98% | 507 lb (230 kg) | 19 ft (5.8 m) | - |
| MEC Micro 19 | 98% | 500 lb (227 kg) | 19 ft (5.8 m) | 18.4 ft (5.6 m) |
| MEC Micro 19-AE | 97% | 500 lb (227 kg) | 19 ft (5.8 m) | 19 ft (5.8 m) |
| Noblelift SC1328E | 96% | 529 lb (240 kg) | 18 ft (5.5 m) | - |
Documents
Full specifications
| Battery Voltage | 12 | ↗ |
| Drive Speed (Lowered) | 3.0 mph | ↗ |
| Drive Speed (Raised) | 0.5 mph | ↗ |
| Gradeability | 24% | ↗ |
| Machine Height | 6 ft 6 in | ↗ |
| Machine Weight | 2,978 lb (1,351 kg) | ↗ |
| Max Ground Bearing Pressure | 170 psi | ↗ |
| Max Platform Capacity | 500 lb (227 kg) | ↗ |
| Max Platform Height | 18 ft 6 in | ↗ |
| Max Tilt Rating | 1.5 Degree | ↗ |
| Number of Occupants | 2 | ↗ |
| Platform Extension Capacity | 254 lb (115 kg) | ↗ |
| Platform Height | 18 ft (5.5 m) | ↗ |
| Stowed Height | 18 ft (5.5 m) | ↗ |
| Turning Radius | 0 in (0 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
