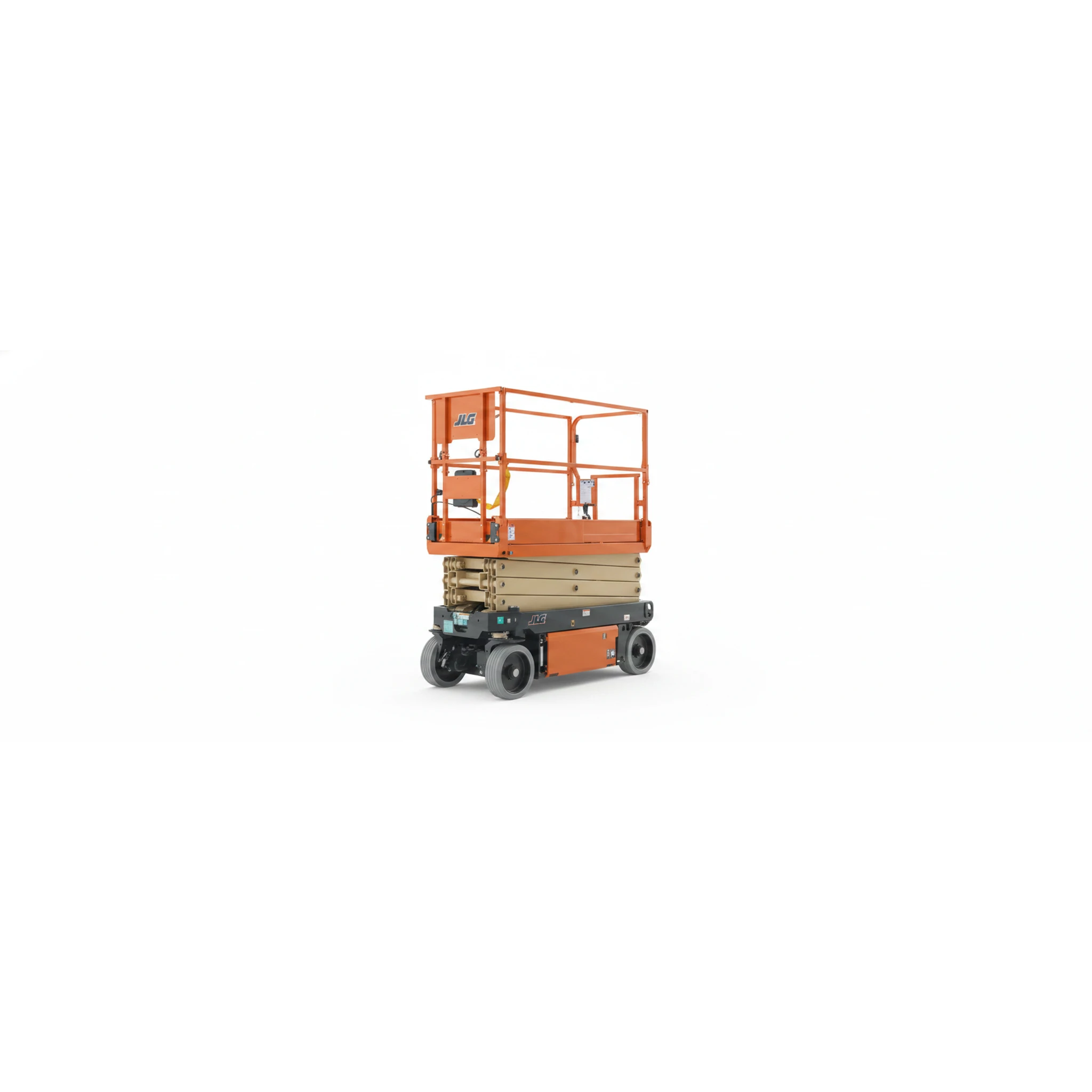

JLG
ES2632
4,400 lb (1,996 kg)
Operating weight
507 lb (230 kg)
Platform capacity
25 ft (7.6 m)
Working height
24 V DC
drive type
25%
gradeability
507 lb (230 kg)
lift capacity
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Operating weight | Platform capacity | Working height |
|---|---|---|---|---|
| Noblelift SC1930EC | 99% | - | 500 lb (227 kg) | 25 ft (7.6 m) |
| XCMG XG0807HA | 99% | - | 507 lb (230 kg) | 25.6 ft (7.8 m) |
| XCMG XG0807ACW | 99% | - | 507 lb (230 kg) | 25.6 ft (7.8 m) |
| XCMG XG0807AC | 99% | - | 507 lb (230 kg) | 25.6 ft (7.8 m) |
| XCMG XG0807ACW-AS | 99% | - | 507 lb (230 kg) | 25.6 ft (7.8 m) |
| XCMG XG0708DC | 97% | - | 529 lb (240 kg) | 25.3 ft (7.7 m) |
Documents
Full specifications
| Battery Voltage | 6 | ↗ |
| Drive Speed (Lowered) | 2.75 mph | ↗ |
| Drive Speed (Raised) | 0.5 mph | ↗ |
| Gradeability | 25 | ↗ |
| Machine Height | 7–ft 4–in ft-in | ↗ |
| Machine Weight | 4,400 lb (1,996 kg) | ↗ |
| Max Ground Bearing Pressure | 107 psi | ↗ |
| Max Platform Capacity | 507 lb (230 kg) | ↗ |
| Max Platform Height | 25–ft 6–in ft-in | ↗ |
| Max Tilt Rating | 1.5 Degree | ↗ |
| Number of Occupants | 2 | ↗ |
| Platform Capacity | 507 lb (230 kg) | ↗ |
| Platform Extension Capacity | 265 lb (120 kg) | ↗ |
| Platform Height | 25- ft | ↗ |
| Turning Radius | 0 in (0 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
