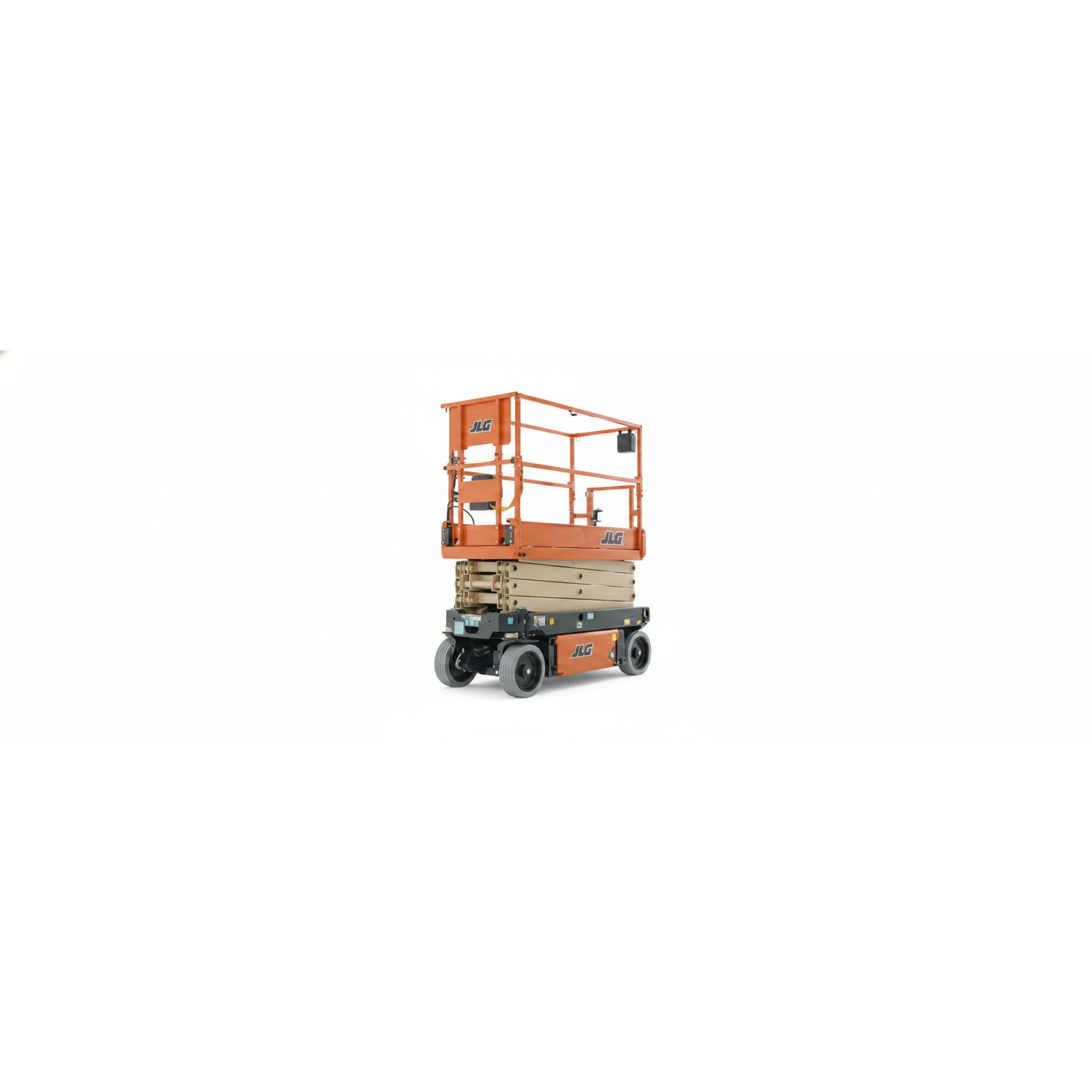

JLG
ES2646
1,199 lb (544 kg)
Platform capacity
26 ft (7.9 m)
Working height
1,001 lb (454 kg)
lift capacity
26 ft (7.9 m)
platform height
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Platform capacity | Working height | lift capacity |
|---|---|---|---|---|
| Skyjack SJ-3220-26 | 95% | - | 26.1 ft (8.0 m) | 899 lb (408 kg) |
| Skyjack 3220 | 95% | - | 26 ft (7.9 m) | 899 lb (408 kg) |
| Skyjack SJIII3220 | 94% | - | 26.6 ft (8.1 m) | 899 lb (408 kg) |
| Skyjack SJ-III3220-26 | 94% | - | 26.6 ft (8.1 m) | 899 lb (408 kg) |
| Genie GS-2646 E-Drive | 92% | 1,001 lb (454 kg) | - | 1,001 lb (454 kg) |
| Snorkel S4726E | 92% | 1,001 lb (454 kg) | - | 1,001 lb (454 kg) |
Documents
Full specifications
| Battery Voltage | 6 | ↗ |
| Drive Speed (Lowered) | 4.8 km/h | ↗ |
| Drive Speed (Raised) | 0.5 mph | ↗ |
| Gradeability | 25% | ↗ |
| Machine Height | 7–ft 5–in | ↗ |
| Machine Weight | 5,295 lb (2,402 kg) | ↗ |
| Max Ground Bearing Pressure | 137 psi | ↗ |
| Max Platform Capacity | 1,200 lb (544 kg) | ↗ |
| Max Platform Height | 26–ft 0–in | ↗ |
| Max Tilt Rating | 2.5 Degree | ↗ |
| Number of Occupants | 2 | ↗ |
| Platform Capacity | 1,200 lb (544 kg) | ↗ |
| Platform Extension Capacity | 265 lb (120 kg) | ↗ |
| Platform Height | 26 ft (7.9 m) | ↗ |
| Turning Radius | 0 in (0 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
