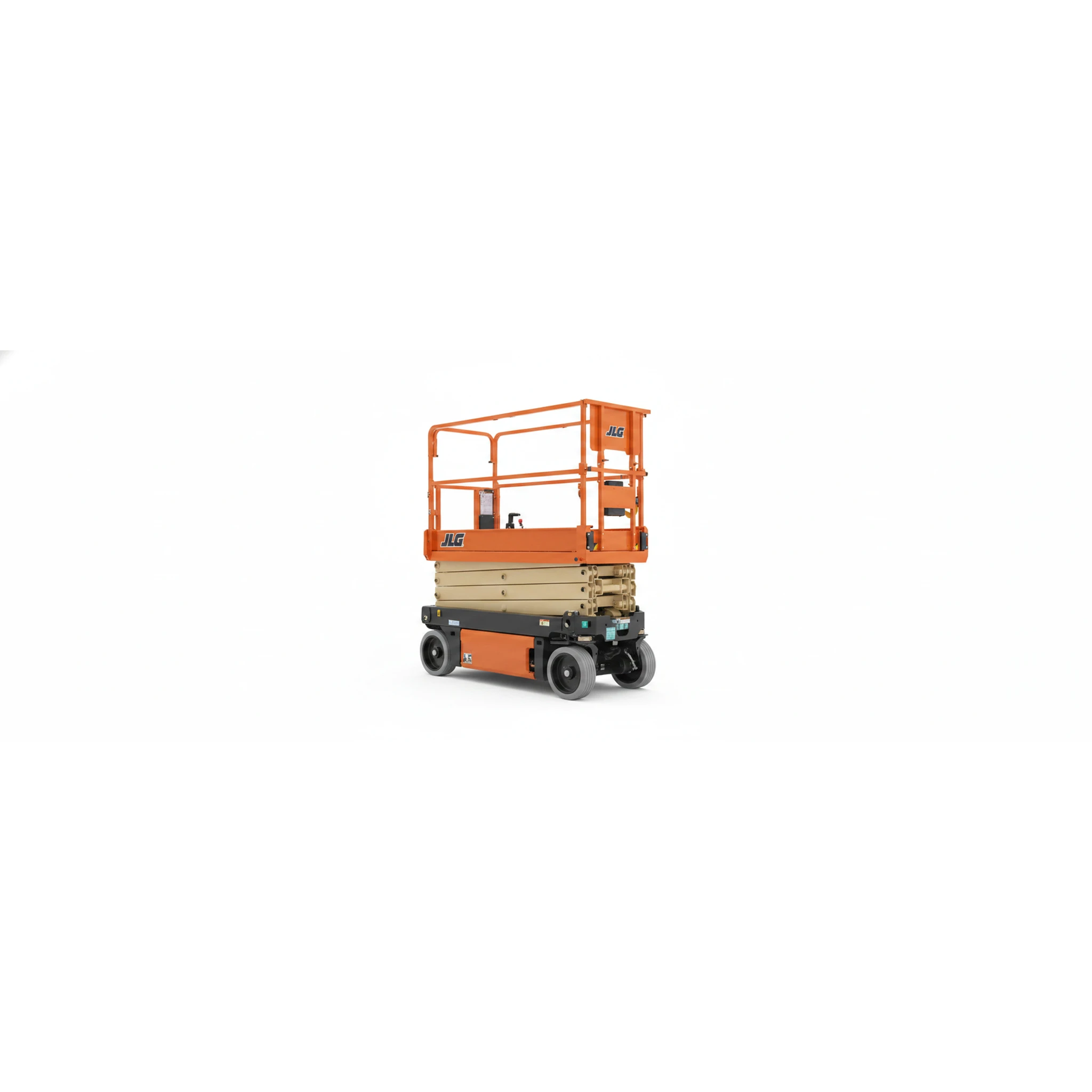

JLG
ES3246
5,620 lb (2,549 kg)
Operating weight
705 lb (320 kg)
Platform capacity
32 ft (9.8 m)
Working height
4.8 km/h
drive speed lowered
24 V DC
drive type
25%
gradeability
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Operating weight | Platform capacity | Working height |
|---|---|---|---|---|
| Dingli JCPT1212PA | 99% | - | 705 lb (320 kg) | 32.8 ft (10.0 m) |
| Snorkel S4732E | 97% | 5,699 lb (2,585 kg) | 769 lb (349 kg) | - |
| Genie GS-3246 E-Drive Scissor Lift | 96% | 5,218 lb (2,367 kg) | 701 lb (318 kg) | 38.1 ft (11.6 m) |
| Skyjack SJ4632 | 96% | 5,075 lb (2,302 kg) | - | 38.1 ft (11.6 m) |
| Skyjack SJ-4726-32 | 96% | 5,478 lb (2,485 kg) | - | 38.2 ft (11.6 m) |
| Skyjack 4632 | 95% | 5,075 lb (2,302 kg) | - | 38 ft (11.6 m) |
Documents
Full specifications
| Battery Voltage | 6 | ↗ |
| Drive Speed (Lowered) | 4.8 km/h | ↗ |
| Drive Speed (Raised) | 0.5 mph | ↗ |
| Gradeability | 25% | ↗ |
| Machine Height | 8 ft 0 in | ↗ |
| Machine Weight | 5,620 lb (2,549 kg) | ↗ |
| Max Ground Bearing Pressure | 140 psi | ↗ |
| Max Platform Capacity | 705 lb (320 kg) | ↗ |
| Max Platform Height | 32 ft 0 in | ↗ |
| Max Tilt Rating | 2.5 Degree | ↗ |
| Number of Occupants | 2 | ↗ |
| Platform Extension Capacity | 265 lb (120 kg) | ↗ |
| Platform Height | 32 ft (9.8 m) | ↗ |
| Turning Radius | 0 in (0 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
