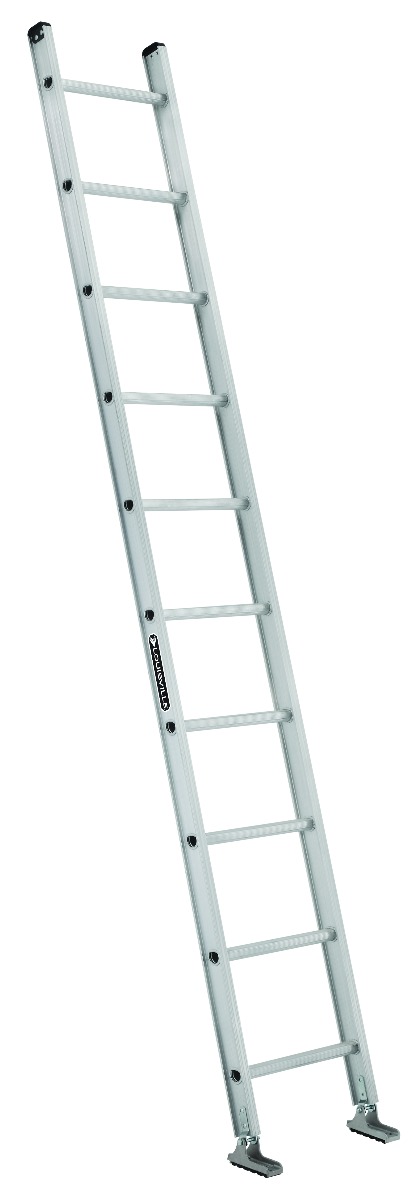

Louisville Ladder
AE2110
661 lb (300 kg)
Load capacity
6.6 ft (2.0 m)
Max height
Documents
Full specifications
| ANSI | Certified | ↗ |
| Certified | OSHA | ↗ |
| Closed Depth | 4.25 | ↗ |
| Closed Height | 125.25 | ↗ |
| Closed Volume (cu. ft.) | 5.988 | ↗ |
| Closed Width (in) | 19.438 | ↗ |
| Duty Rating | Type IA | ↗ |
| Inside Width Base (in) | 15.563 | ↗ |
| Load Capacity (lbs) | 300 | ↗ |
| Material | Aluminum | ↗ |
| Max. Extended Length (ft) | 10 | ↗ |
| Maximum Standing Height (in) | 6.583 | ↗ |
| Number of Steps | 10 | ↗ |
| Outside Width Base (in) | 17.813 | ↗ |
| Rail Depth (in) | 3 | ↗ |
| Rung Type | D-rung | ↗ |
| SKU | AE2110 | ↗ |
| Section Length (ft) | 10 | ↗ |
| Size | 10 | ↗ |
| Step Depth | 1.5 | ↗ |
| Style | Standard | ↗ |
| Total Length (ft) | 10 | ↗ |
| Weight | 19 | ↗ |
