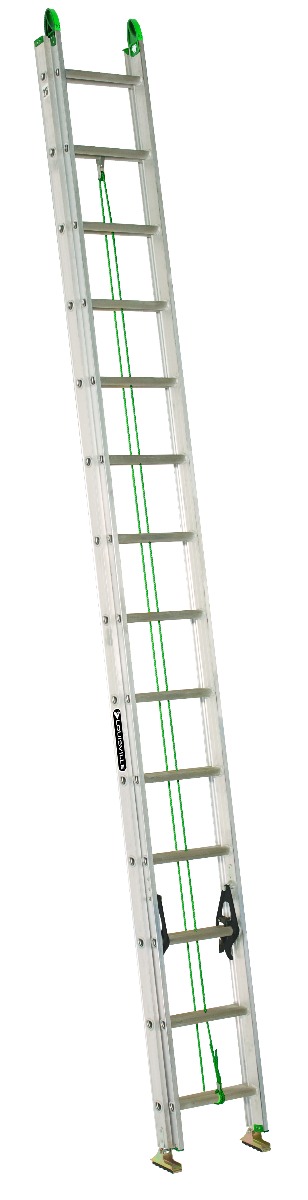

Louisville Ladder
AE4228PG
496 lb (225 kg)
Load capacity
25 ft (7.6 m)
Max height
Documents
Full specifications
| ANSI | Certified | ↗ |
| Certified | OSHA | ↗ |
| Closed Depth | 6 | ↗ |
| Closed Height | 16.5 | ↗ |
| Closed Width (in) | 17.125 | ↗ |
| Duty Rating | Type II | ↗ |
| Inside Width Base (in) | 15.25 | ↗ |
| Inside Width Fly (in) | 14.32 | ↗ |
| Load Capacity (lbs) | 225 | ↗ |
| Material | Aluminum | ↗ |
| Max. Extended Length (ft) | 25 | ↗ |
| Maximum Standing Height (in) | 25’ | ↗ |
| Number of Steps | 28 | ↗ |
| Open Depth (in) | 5.25 | ↗ |
| Open Height (in) | 25 | ↗ |
| Open Width (in) | 17.13 | ↗ |
| Outside Width Base (in) | 17.13 | ↗ |
| Outside Width Fly (in) | 16.19 | ↗ |
| Rail Depth (in) | 3 | ↗ |
| Rung Type | D-rung | ↗ |
| SKU | AE4228PG | ↗ |
| Section Length (ft) | 14 | ↗ |
| Size | 28 | ↗ |
| Step Depth | 1.5 | ↗ |
| Style | Standard | ↗ |
| Total Length (ft) | 28 | ↗ |
| Weight | 48 | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
