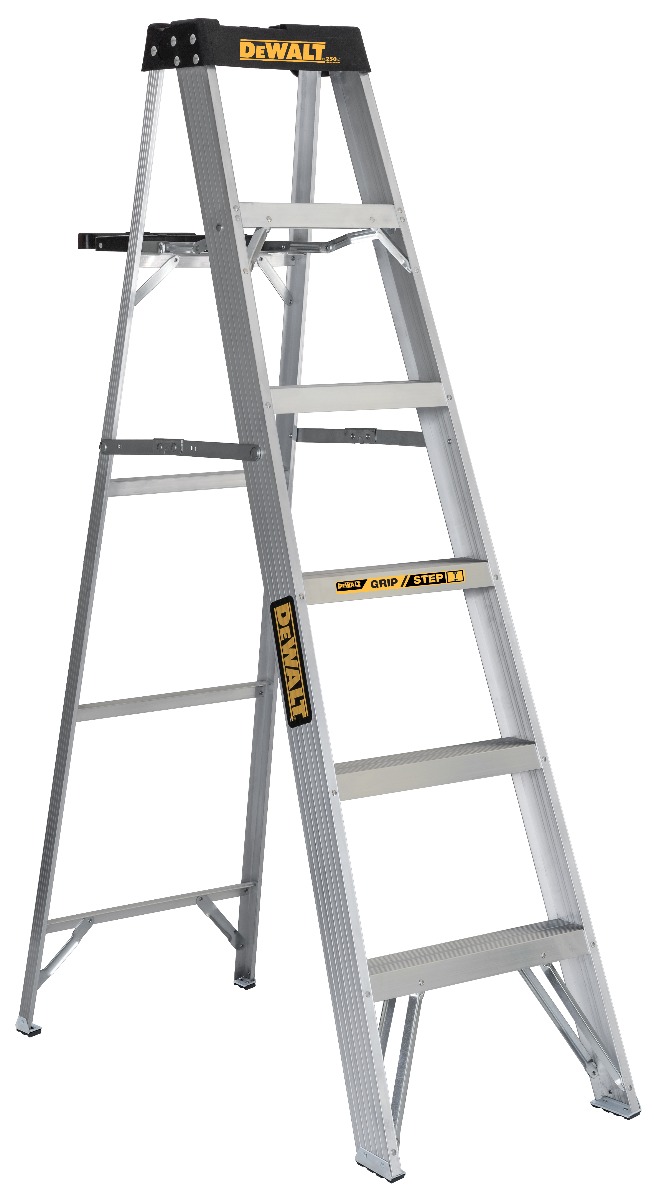

Louisville Ladder
DXL2110-10
551 lb (250 kg)
Load capacity
10 ft (3.0 m)
Max height
Documents
Full specifications
| ANSI | Certified | ↗ |
| Certified | OSHA | ↗ |
| Closed Depth | 7 | ↗ |
| Closed Height | 122 | ↗ |
| Closed Volume (cu. ft.) | 12.4864 | ↗ |
| Closed Width (in) | 26 | ↗ |
| Duty Rating | Type I | ↗ |
| Load Capacity (lbs) | 250 | ↗ |
| Material | Aluminum | ↗ |
| Maximum Reach (in) | 170 | ↗ |
| Maximum Standing Height (in) | 91 | ↗ |
| Number of Steps | 9 | ↗ |
| Open Depth (in) | 64.75 | ↗ |
| Open Height (in) | 113.875 | ↗ |
| Open Volume (cu. ft.) | 9.46 | ↗ |
| Open Volume (cu. m.) | 3.11 | ↗ |
| Open Width (in) | 25.75 | ↗ |
| Rung Type | Mega Step | ↗ |
| SKU | DXL2110-10 | ↗ |
| Size | 10 | ↗ |
| Step Depth | 3 | ↗ |
| Style | Standard | ↗ |
| Top Width Closed (in) | 13.25 | ↗ |
| Weight | 28 | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
