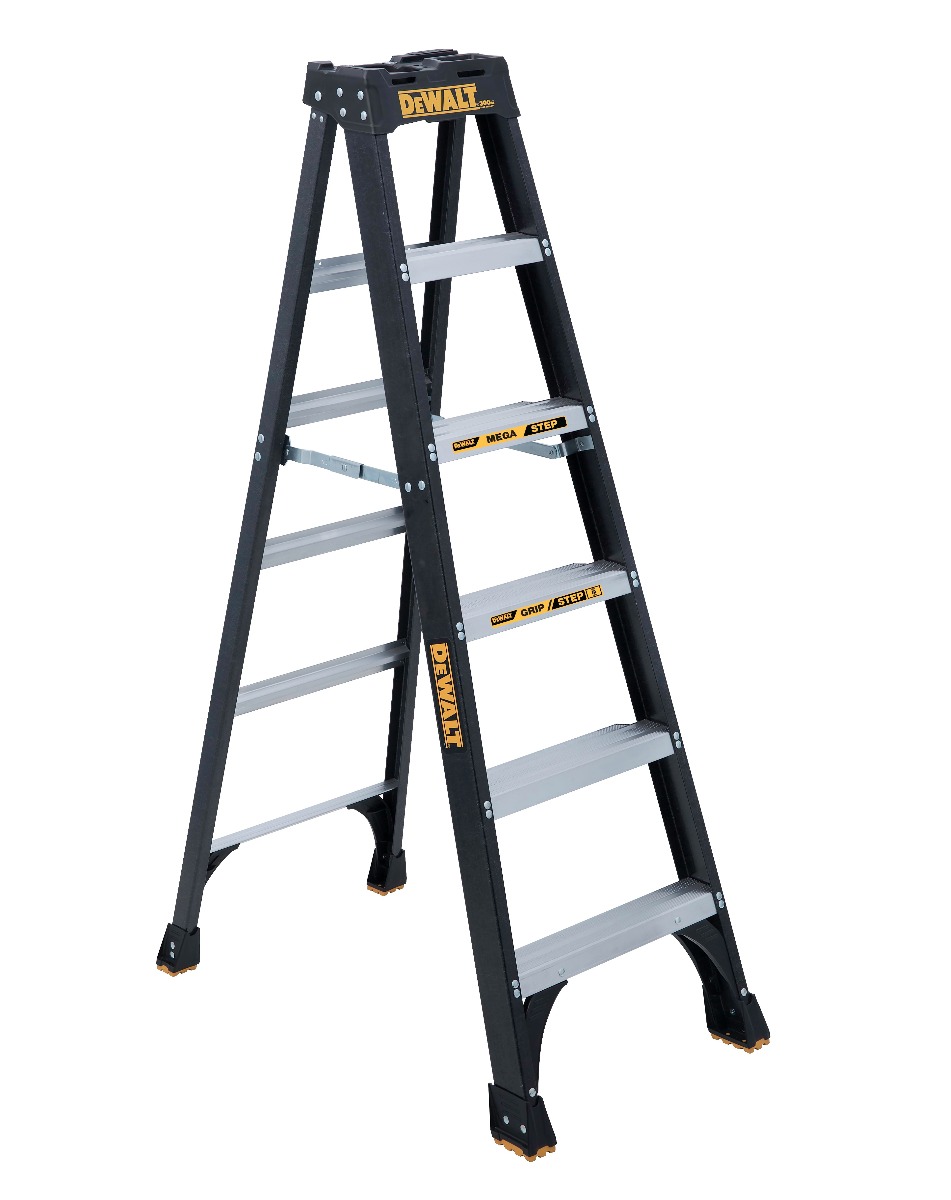

Louisville Ladder
DXL3010-08
661 lb (300 kg)
Load capacity
8 ft (2.4 m)
Max height
Documents
Full specifications
| ANSI | Certified | ↗ |
| Certified | OSHA | ↗ |
| Closed Depth | 7 | ↗ |
| Closed Height | 96 | ↗ |
| Closed Volume (cu. ft.) | 11.00911458 | ↗ |
| Closed Width (in) | 28 | ↗ |
| Duty Rating | Type IA | ↗ |
| Load Capacity (lbs) | 300 | ↗ |
| Material | Fiberglass | ↗ |
| Maximum Reach (in) | 147 | ↗ |
| Maximum Standing Height (in) | 68 | ↗ |
| Number of Steps | 7 | ↗ |
| Open Depth (in) | 53.625 | ↗ |
| Open Height (in) | 91.3 | ↗ |
| Open Volume (cu. ft.) | 8.2 | ↗ |
| Open Volume (cu. m.) | 2.23 | ↗ |
| Open Width (in) | 27.8125 | ↗ |
| Rung Type | Mega Step | ↗ |
| SKU | DXL3010-08 | ↗ |
| Size | 8 | ↗ |
| Step Depth | 3 | ↗ |
| Style | Standard | ↗ |
| Top Width Closed (in) | 13.625 | ↗ |
| Weight | 29 | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
