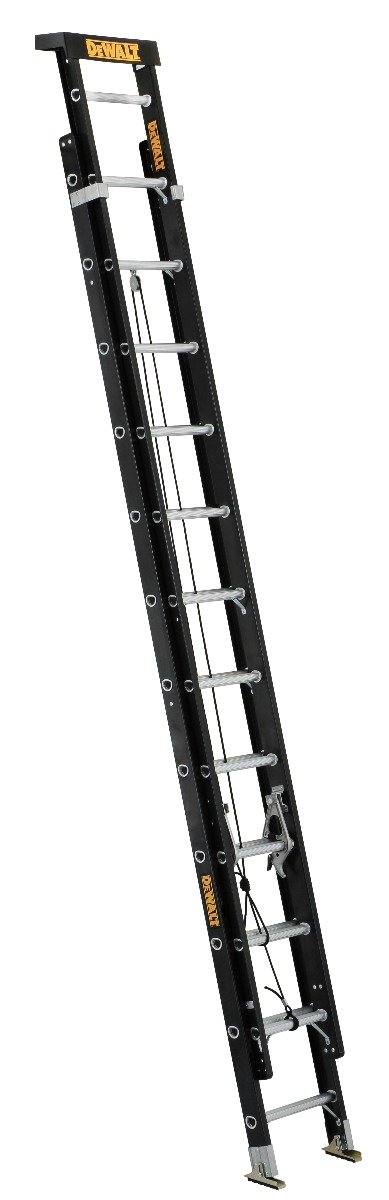

Louisville Ladder
DXL3020-16PT
661 lb (300 kg)
Load capacity
13 ft (4.0 m)
Max height
Documents
Full specifications
| ANSI | Certified | ↗ |
| Certified | OSHA | ↗ |
| Closed Depth | 7 | ↗ |
| Closed Height | 103.5 | ↗ |
| Closed Volume (cu. ft.) | 7.757 | ↗ |
| Closed Width (in) | 18.5 | ↗ |
| Duty Rating | Type IA | ↗ |
| Inside Width Base (in) | 14.625 | ↗ |
| Inside Width Fly (in) | 13.625 | ↗ |
| Load Capacity (lbs) | 300 | ↗ |
| Material | Fiberglass | ↗ |
| Max. Extended Length (ft) | 13 | ↗ |
| Maximum Standing Height (in) | 9.166 | ↗ |
| Number of Steps | 16 | ↗ |
| Open Depth (in) | 7 | ↗ |
| Open Height (in) | 162.88 | ↗ |
| Open Volume (cu. ft.) | 12.21 | ↗ |
| Open Volume (cu. m.) | 0.35 | ↗ |
| Open Width (in) | 18.5 | ↗ |
| Outside Width Base (in) | 17 | ↗ |
| Outside Width Fly (in) | 16 | ↗ |
| Rail Depth (in) | 3 | ↗ |
| Rung Type | D-rung | ↗ |
| SKU | DXL3020-16PT | ↗ |
| Section Length (ft) | 8 | ↗ |
| Size | 16 | ↗ |
| Step Depth | 1.5 | ↗ |
| Style | Standard | ↗ |
| Total Length (ft) | 16 | ↗ |
| Weight | 34 | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
