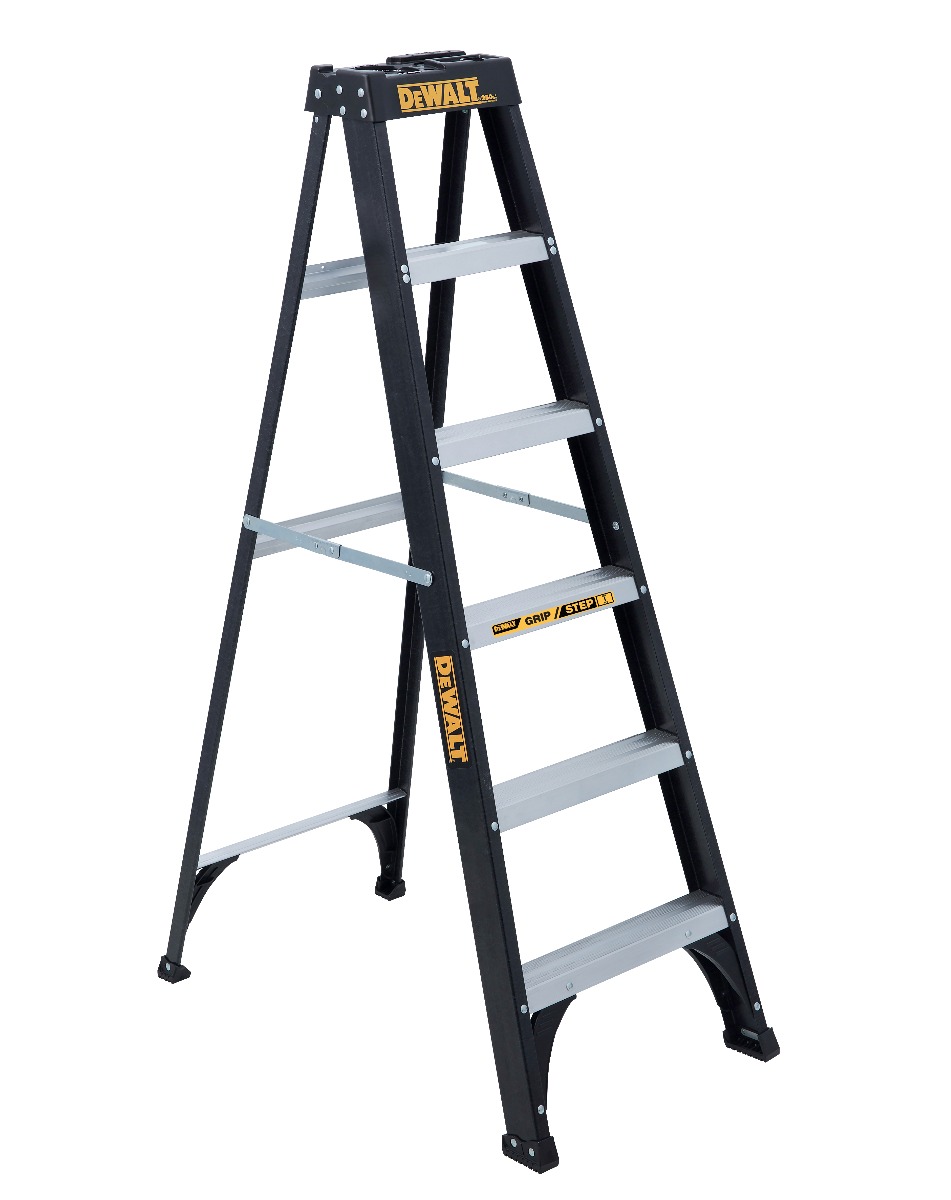

Louisville Ladder
DXL3110-06
551 lb (250 kg)
Load capacity
6 ft (1.8 m)
Max height
Documents
Full specifications
| ANSI | Certified | ↗ |
| Certified | OSHA | ↗ |
| Closed Depth | 6 | ↗ |
| Closed Height | 74 | ↗ |
| Closed Volume (cu. ft.) | 18.7449 | ↗ |
| Closed Width (in) | 24 | ↗ |
| Duty Rating | Type I | ↗ |
| Load Capacity (lbs) | 250 | ↗ |
| Material | Fiberglass | ↗ |
| Maximum Reach (in) | 124 | ↗ |
| Maximum Standing Height (in) | 45 | ↗ |
| Number of Steps | 6 | ↗ |
| Open Depth (in) | 61.5 | ↗ |
| Open Height (in) | 103.375 | ↗ |
| Open Volume (cu. ft.) | 15.47 | ↗ |
| Open Volume (cu. m.) | 2.96 | ↗ |
| Open Width (in) | 28 7/16 | ↗ |
| Rung Type | Standard Step | ↗ |
| SKU | DXL3110-06 | ↗ |
| Size | 6 | ↗ |
| Step Depth | 3 | ↗ |
| Style | Standard | ↗ |
| Top Width Closed (in) | 18 1/2 | ↗ |
| Weight | 18 | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
