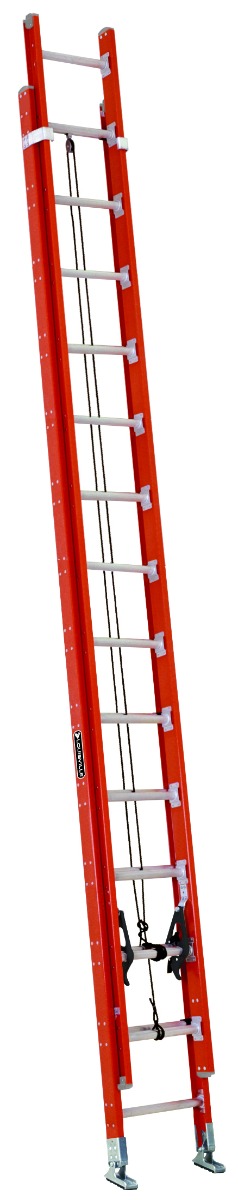

Louisville Ladder
FE7228
661 lb (300 kg)
Load capacity
25 ft (7.6 m)
Max height
Documents
Full specifications
| ANSI | Certified | ↗ |
| Certified | OSHA | ↗ |
| Closed Depth | 6.5 | ↗ |
| Closed Height | 172.75 | ↗ |
| Closed Volume (cu. ft.) | 12.022 | ↗ |
| Closed Width (in) | 18.5 | ↗ |
| Duty Rating | Type IA | ↗ |
| Inside Width Base (in) | 15 | ↗ |
| Inside Width Fly (in) | 13.688 | ↗ |
| Load Capacity (lbs) | 300 | ↗ |
| Material | Fiberglass | ↗ |
| Max. Extended Length (ft) | 25 | ↗ |
| Maximum Standing Height (in) | 25’ | ↗ |
| Number of Steps | 28 | ↗ |
| Outside Width Base (in) | 17.375 | ↗ |
| Outside Width Fly (in) | 16.063 | ↗ |
| Rail Depth (in) | 3.25 | ↗ |
| Rung Type | D-rung | ↗ |
| SKU | FE7228 | ↗ |
| Section Length (ft) | 14 | ↗ |
| Size | 28 | ↗ |
| Step Depth | 1.5 | ↗ |
| Style | Standard | ↗ |
| Total Length (ft) | 28 | ↗ |
| Weight | 63 | ↗ |
