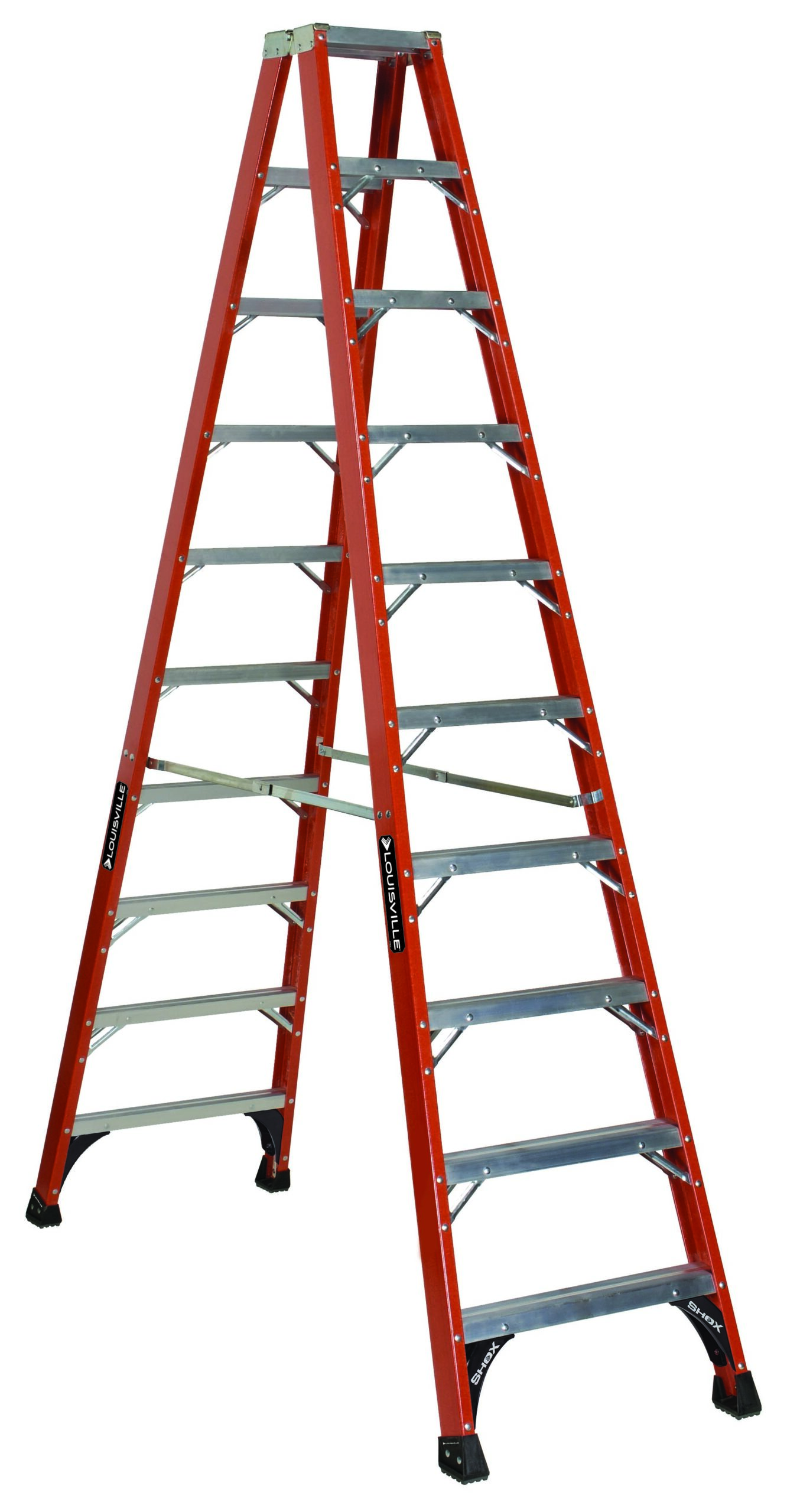

Louisville Ladder
FM1410HD
827 lb (375 kg)
Load capacity
10 ft (3.0 m)
Max height
Documents
Full specifications
| ANSI | Certified | ↗ |
| Certified | OSHA | ↗ |
| Closed Depth | 8 | ↗ |
| Closed Height | 109.7 | ↗ |
| Closed Volume (cu. ft.) | 14.352 | ↗ |
| Closed Width (in) | 26.9 | ↗ |
| Duty Rating | Type IAA | ↗ |
| Load Capacity (lbs) | 375 | ↗ |
| Material | Fiberglass | ↗ |
| Maximum Reach (in) | 170 | ↗ |
| Maximum Standing Height (in) | 91 | ↗ |
| Number of Steps | 9 | ↗ |
| Open Depth (in) | 74.096 | ↗ |
| Open Height (in) | 102.888 | ↗ |
| Open Volume (cu. ft.) | 10.6 | ↗ |
| Open Volume (cu. m.) | 3.36 | ↗ |
| Open Width (in) | 26.875 | ↗ |
| Rung Type | Standard Step | ↗ |
| SKU | FM1410HD | ↗ |
| Size | 10 | ↗ |
| Step Depth | 3 | ↗ |
| Style | Twin Front | ↗ |
| Top Width Closed (in) | 12.8125 | ↗ |
| Weight | 55 | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
