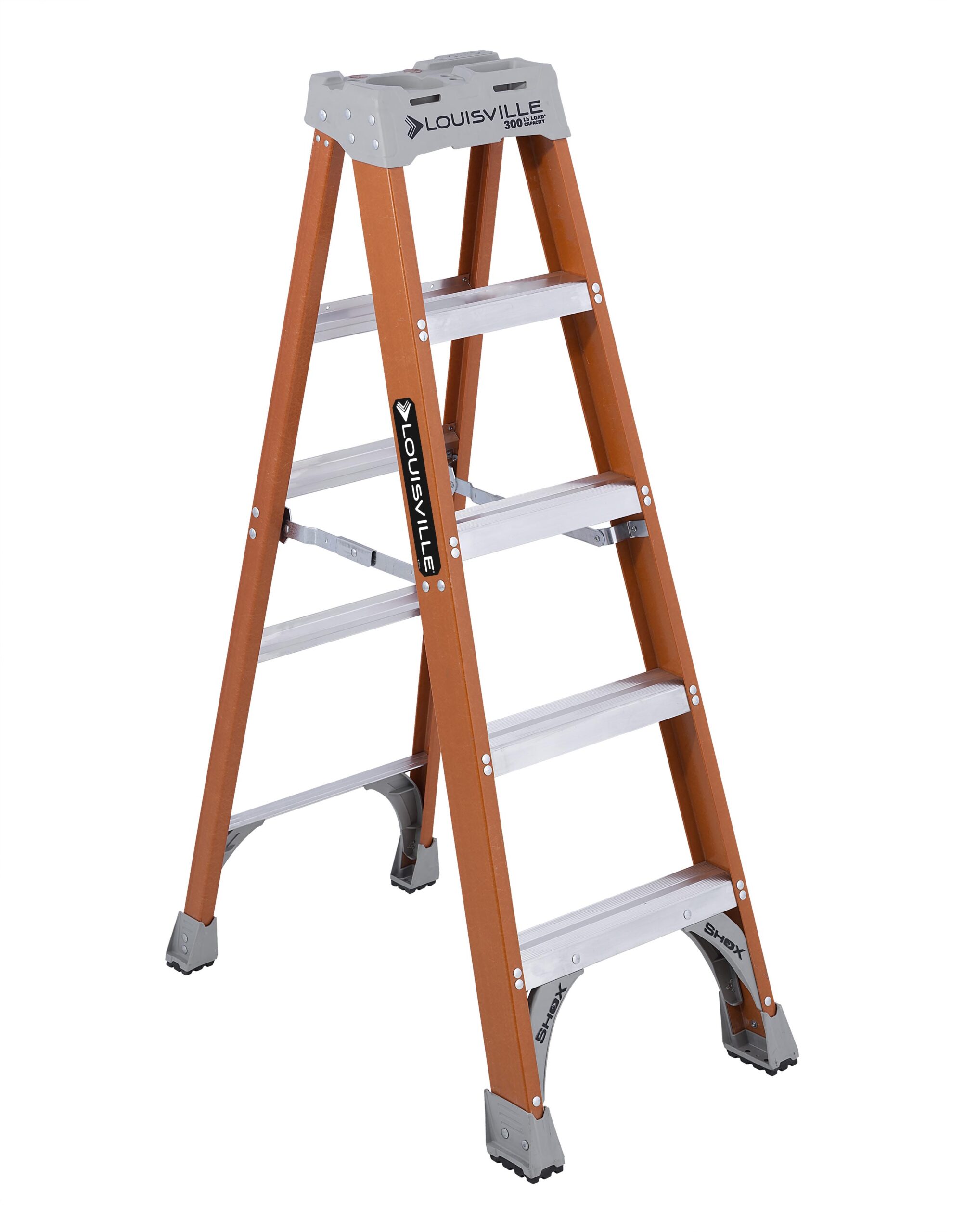

Louisville Ladder
FS1505
661 lb (300 kg)
Load capacity
5 ft (1.5 m)
Max height
Documents
Full specifications
| ANSI | Certified | ↗ |
| Certified | OSHA | ↗ |
| Closed Depth | 6 | ↗ |
| Closed Height | 49.7 | ↗ |
| Closed Volume (cu. ft.) | 3.247 | ↗ |
| Closed Width (in) | 19.4 | ↗ |
| Duty Rating | Type IA | ↗ |
| Load Capacity (lbs) | 300 | ↗ |
| Material | Fiberglass | ↗ |
| Maximum Reach (in) | 102 | ↗ |
| Maximum Standing Height (in) | 23 | ↗ |
| Number of Steps | 3 | ↗ |
| Open Depth (in) | 28.643 | ↗ |
| Open Height (in) | 45.823 | ↗ |
| Open Volume (cu. ft.) | 2.73 | ↗ |
| Open Volume (cu. m.) | 0.42 | ↗ |
| Open Width (in) | 19.375 | ↗ |
| Rung Type | Standard Step | ↗ |
| SKU | FS1505 | ↗ |
| Size | 4 | ↗ |
| Step Depth | 3 | ↗ |
| Style | Standard | ↗ |
| Top Width Closed (in) | 13.229 | ↗ |
| Weight | 15 | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
