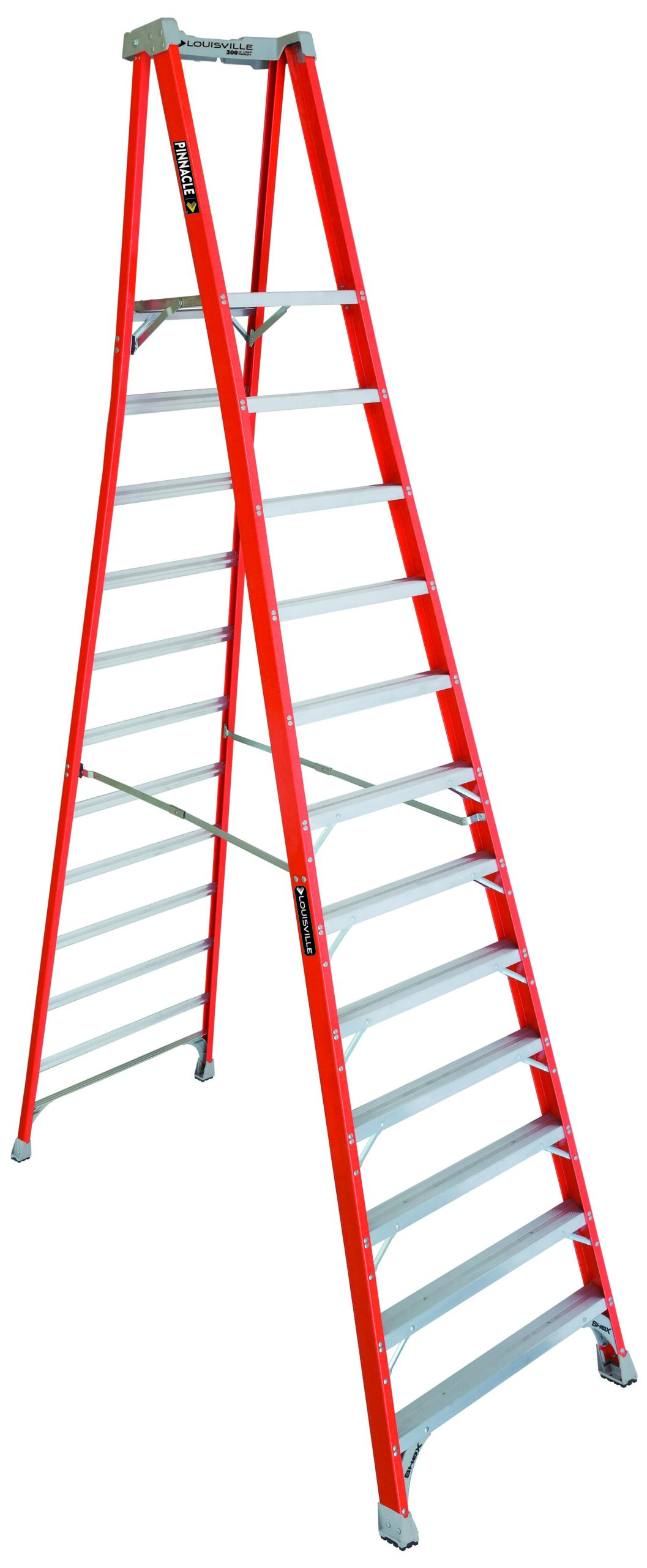

Louisville Ladder
FXP1712
661 lb (300 kg)
Load capacity
11 ft (3.4 m)
Max height
Documents
Full specifications
| Certified | ANSI | ↗ |
| Closed Depth | 10 | ↗ |
| Closed Height | 176 | ↗ |
| Closed Volume (cu. ft.) | 38.36631944 | ↗ |
| Closed Width (in) | 36.8 | ↗ |
| Duty Rating | Type IA | ↗ |
| Load Capacity (lbs) | 300 | ↗ |
| Material | Fiberglass | ↗ |
| Maximum Reach (in) | 193 | ↗ |
| Maximum Standing Height (in) | 11' 5" | ↗ |
| Number of Steps | 12 | ↗ |
| OSHA | Certified | ↗ |
| Open Depth (in) | 92 | ↗ |
| Open Height (in) | 167.5 | ↗ |
| Open Volume (cu. ft.) | 28.81 | ↗ |
| Open Volume (cu. m.) | 9.28 | ↗ |
| Open Width (in) | 36.75 | ↗ |
| Platform Depth (in) | 17.625 | ↗ |
| Platform Front Width (in) | 14.5 | ↗ |
| Platform Height (in) | 1.218 | ↗ |
| Platform Rear Width (in) | 14.5 | ↗ |
| Rung Type | Standard Step | ↗ |
| SKU | FXP1712 | ↗ |
| Size | 12 | ↗ |
| Step Depth | 3 | ↗ |
| Style | Pinnacle Pro Platform | ↗ |
| Top Width Closed (in) | 18.4375 | ↗ |
| Weight | 69 | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
