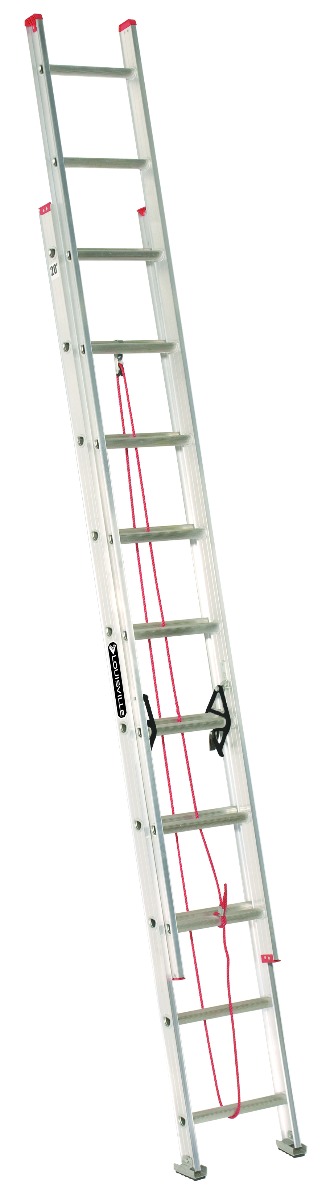

Louisville Ladder
L-2324-20
441 lb (200 kg)
Load capacity
13.4 ft (4.1 m)
Max height
Documents
Full specifications
| ANSI | Certified | ↗ |
| Certified | OSHA | ↗ |
| Closed Depth | 5.75 | ↗ |
| Closed Height | 121 | ↗ |
| Closed Volume (cu. ft.) | 6.895 | ↗ |
| Closed Width (in) | 17.125 | ↗ |
| Duty Rating | Type III | ↗ |
| Inside Width Base (in) | 14 | ↗ |
| Inside Width Fly (in) | 13.313 | ↗ |
| Load Capacity (lbs) | 200 | ↗ |
| Material | Aluminum | ↗ |
| Max. Extended Length (ft) | 17 | ↗ |
| Maximum Standing Height (in) | 13.417 | ↗ |
| Number of Steps | 20 | ↗ |
| Outside Width Base (in) | 15.875 | ↗ |
| Outside Width Fly (in) | 15.188 | ↗ |
| Rail Depth (in) | 2.75 | ↗ |
| Rung Type | D-rung | ↗ |
| SKU | L-2324-20 | ↗ |
| Section Length (ft) | 10 | ↗ |
| Size | 20 | ↗ |
| Step Depth | 1.5 | ↗ |
| Style | Standard | ↗ |
| Total Length (ft) | 20 | ↗ |
| Weight | 26 | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
