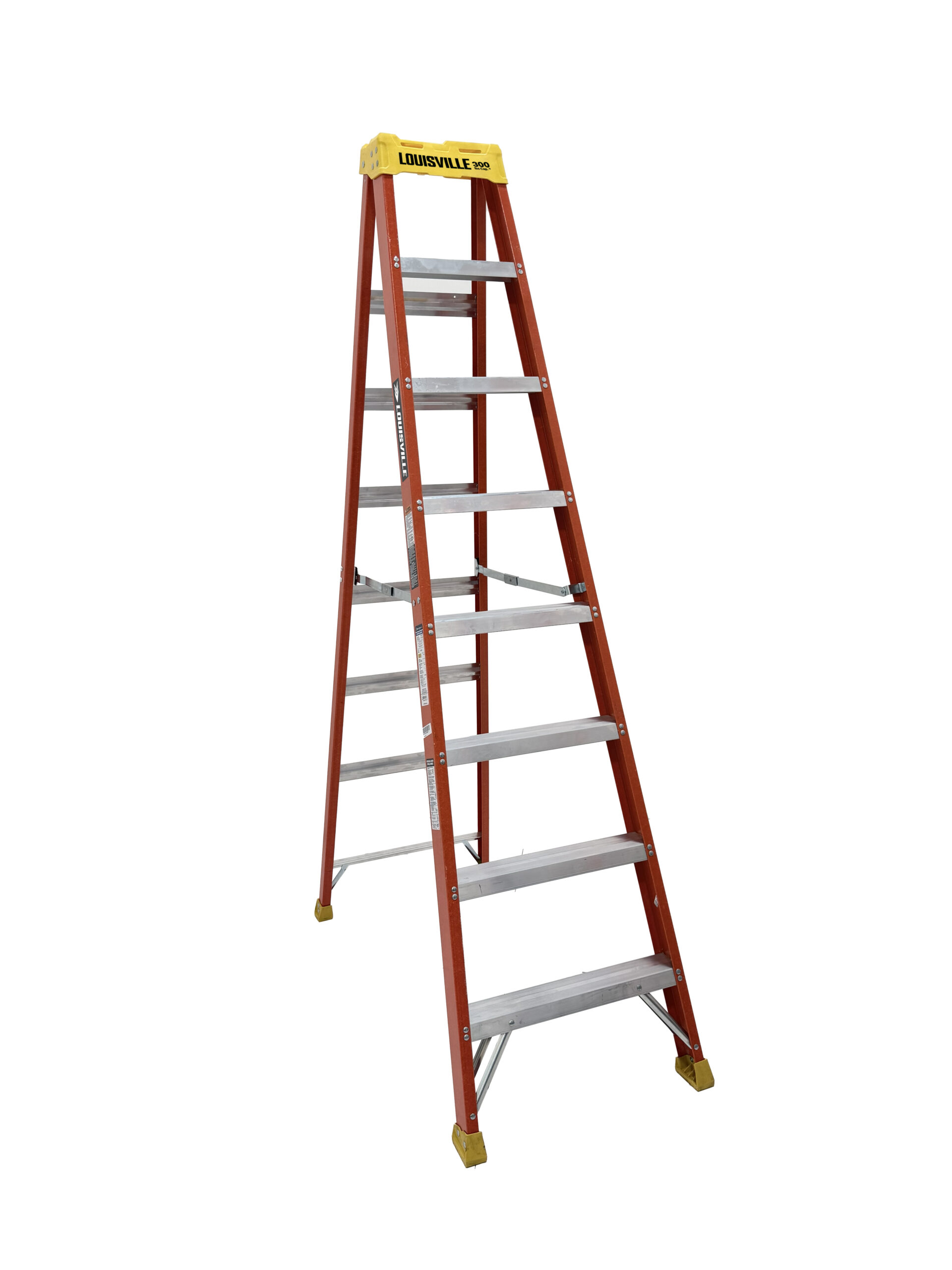

Louisville Ladder
L-3016-08-1
661 lb (300 kg)
Load capacity
8 ft (2.4 m)
Max height
Documents
Full specifications
| Certified | ANSI | ↗ |
| Closed Depth | 6 | ↗ |
| Closed Height | 97.4 | ↗ |
| Closed Volume (cu. ft.) | 8.374 | ↗ |
| Closed Width (in) | 25.5 | ↗ |
| Duty Rating | Type IA | ↗ |
| Load Capacity (lbs) | 300 | ↗ |
| Material | Fiberglass | ↗ |
| Maximum Reach (in) | 147 | ↗ |
| Maximum Standing Height (in) | 68 | ↗ |
| Number of Steps | 7 | ↗ |
| OSHA | Certified | ↗ |
| Open Depth (in) | 52.42 | ↗ |
| Open Height (in) | 91.14 | ↗ |
| Open Volume (cu. ft.) | 6.36 | ↗ |
| Open Volume (cu. m.) | 2 | ↗ |
| Open Width (in) | 25.5 | ↗ |
| Rung Type | Standard Step | ↗ |
| SKU | L-3016-08 | ↗ |
| Size | 8 | ↗ |
| Step Depth | 3 | ↗ |
| Style | Standard | ↗ |
| Top Width Closed (in) | 13.23 | ↗ |
| Weight | 26 | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
