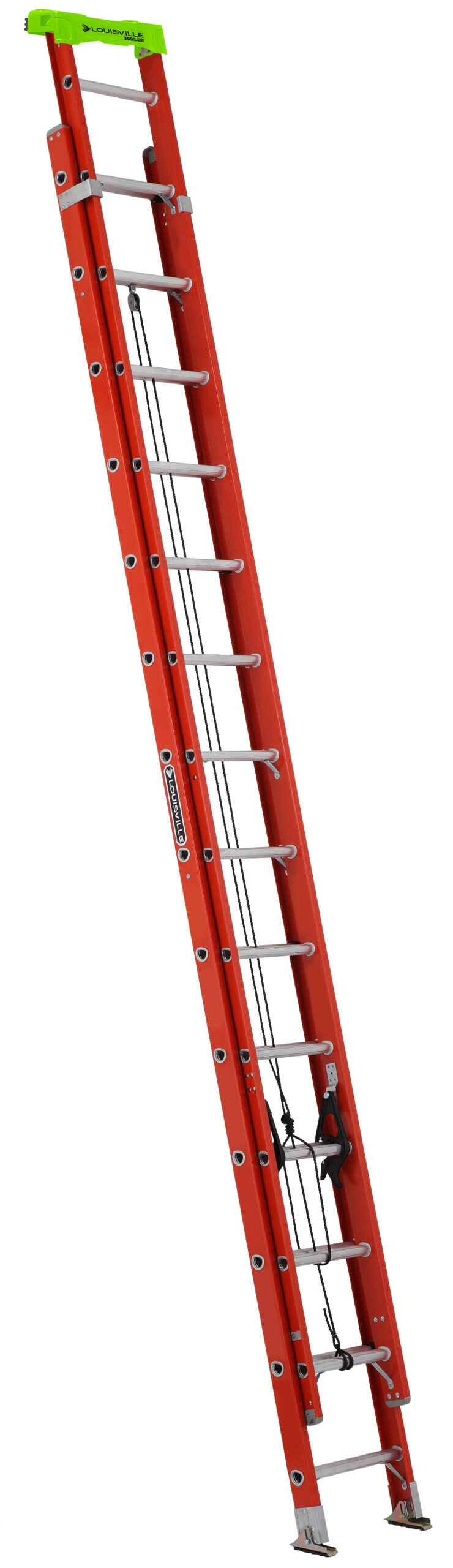

Louisville Ladder
L-3022-32PT
661 lb (300 kg)
Load capacity
29 ft (8.8 m)
Max height
Documents
Full specifications
| ANSI | Certified | ↗ |
| Certified | OSHA | ↗ |
| Closed Depth | 6.375 | ↗ |
| Closed Height | 198 | ↗ |
| Closed Volume (cu. ft.) | 13.468 | ↗ |
| Closed Width (in) | 18.437 | ↗ |
| Duty Rating | Type IA | ↗ |
| Inside Width Base (in) | 15.27 | ↗ |
| Inside Width Fly (in) | 14.313 | ↗ |
| Load Capacity (lbs) | 300 | ↗ |
| Material | Fiberglass | ↗ |
| Max. Extended Length (ft) | 29 | ↗ |
| Maximum Standing Height (in) | 29’ | ↗ |
| Number of Steps | 32 | ↗ |
| Outside Width Base (in) | 17.67 | ↗ |
| Outside Width Fly (in) | 16.713 | ↗ |
| Rail Depth (in) | 3.125 | ↗ |
| Rung Type | D-rung | ↗ |
| SKU | L-3022-32PT | ↗ |
| Section Length (ft) | 16 | ↗ |
| Size | 32 | ↗ |
| Step Depth | 1.5 | ↗ |
| Style | Standard | ↗ |
| Total Length (ft) | 32 | ↗ |
| Weight | 67 | ↗ |
