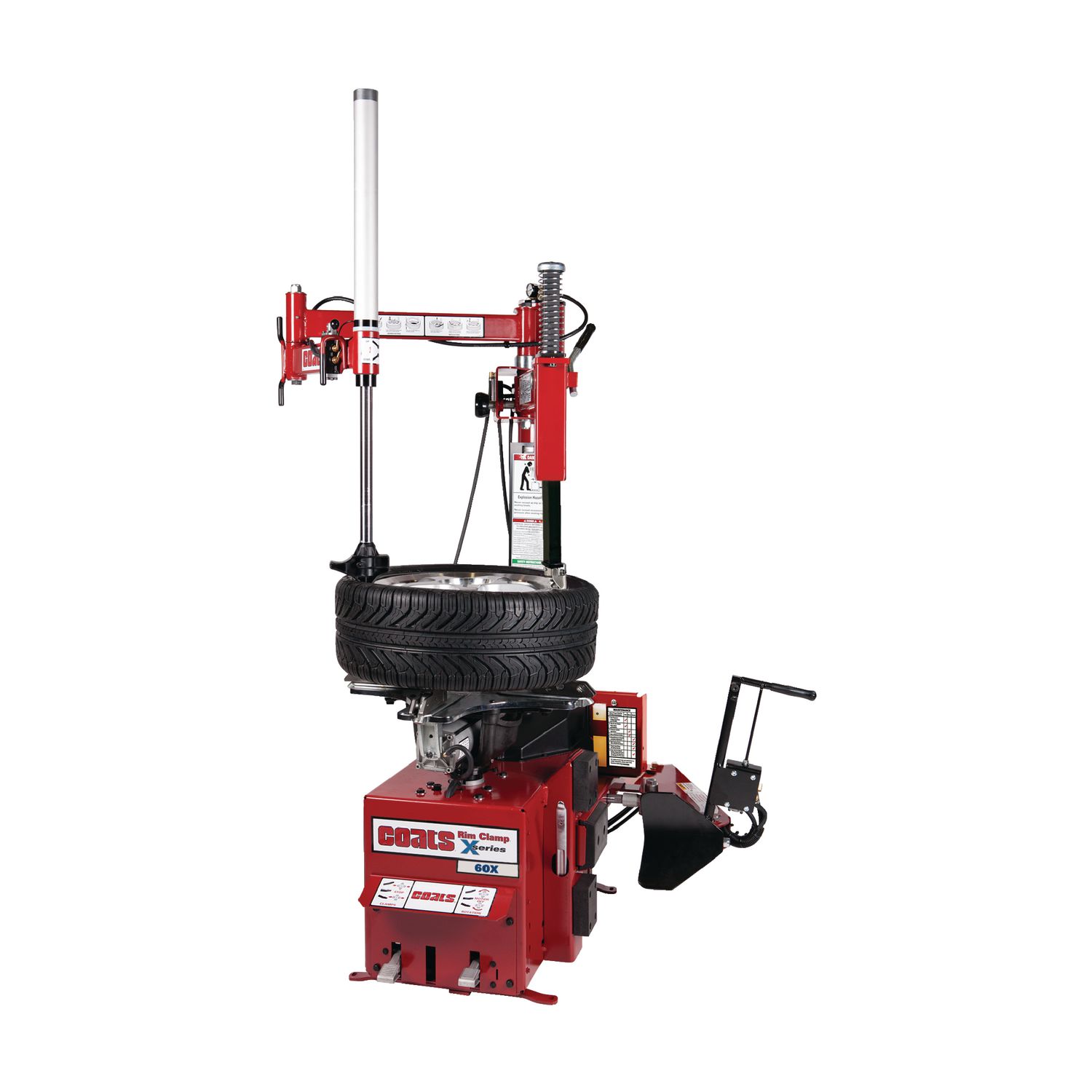

Matco Tools
TE80060XEH1
Full specifications
| Air Supply Gauge | 0psi-300psi | ↗ |
| Assist Arms/Tools | 1 Powered | ↗ |
| Available For Sale | Canada | ↗ |
| Bead Lifting System | Tire Bar | ↗ |
| Bead Loosening System | Hand | ↗ |
| Bead Seating Reservoir | Yes | ↗ |
| Chassis Footprint | 85" x 49" | ↗ |
| Clamping Pressure Limited | Yes | ↗ |
| Clamps | Metal | ↗ |
| Diameter (Min/Max) | 6"-24" | ↗ |
| Drive System | N/A | ↗ |
| Electric Drive System | 1 HP electric motor, 110V 60Hz, 15 A (110psi-175psi, 5 scfm required for cylinders) | ↗ |
| Height Of Table To Floor | 29" | ↗ |
| Inflation Gauge | 60psi | ↗ |
| Inflation Guard | N/A | ↗ |
| Mount/Demount | Swing Arm | ↗ |
| Operation | 1st loosen bead, 2nd mount/demount | ↗ |
| Pressure Limiter | Standard | ↗ |
| Protectors | Standard | ↗ |
| Recommended Work Area | 7' x 10' | ↗ |
| Rim Diameter | 6"-24" external | ↗ |
| Rim Width | 14" | ↗ |
| Robo-Arm | Yes | ↗ |
| Self Calibrating | N/A | ↗ |
| Shipping Weight | 550 lbs. | ↗ |
| Storage Tray | Optional | ↗ |
| Table Shape | X Shape | ↗ |
| Tire Diameter | 50" | ↗ |
| Tool Head Offset | Manual | ↗ |
| Type of Balancer | N/A | ↗ |
| Water Filter/Lubrication Or Oil Injector | Oil Injector | ↗ |
| Wheel Clamping Method | Rim Clamp | ↗ |
| Wheel Handled | Alloy and Steel,Car and Light Truck | ↗ |
| Wheel Lift | Optional | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
