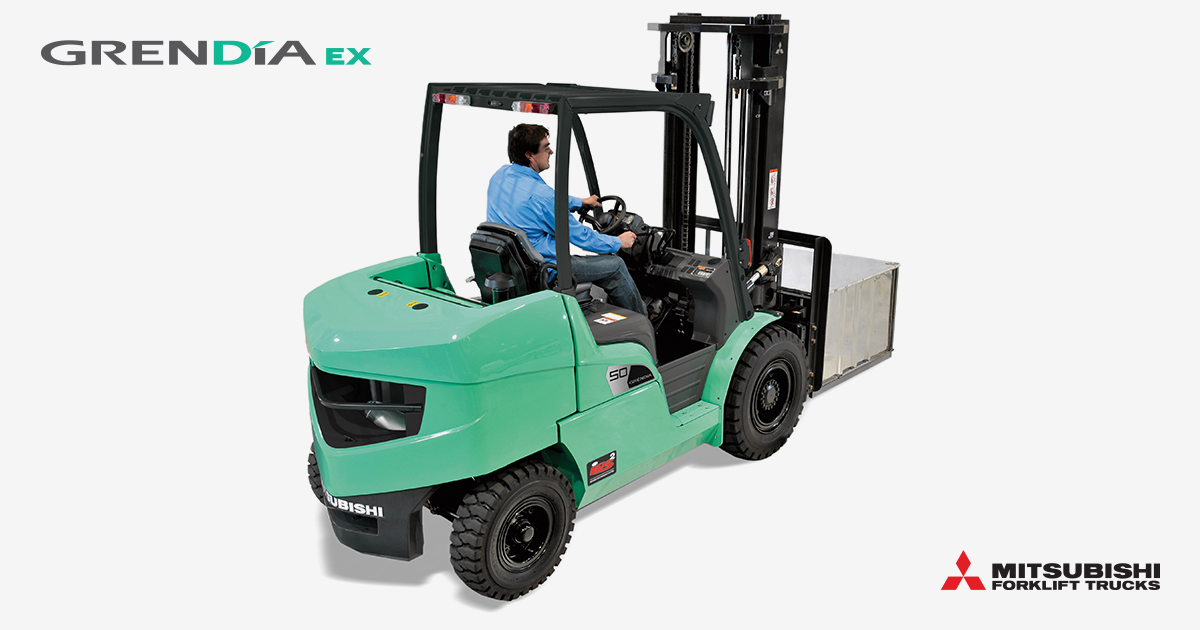

Mitsubishi
FD50N3
10.8 ft (3.3 m)
Lift height
11,023 lb (5,000 kg)
Load capacity
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Lift height | Load capacity |
|---|---|---|---|
| EP Equipment CPCD50T9 | 96% | 9.8 ft (3.0 m) | 11,023 lb (5,000 kg) |
| XCMG FD50T | 95% | 9.8 ft (3.0 m) | 11,023 lb (5,000 kg) |
| XCMG XCF506K | 95% | 9.8 ft (3.0 m) | 11,023 lb (5,000 kg) |
| XCMG XCF706K | 81% | 9.8 ft (3.0 m) | 15,432 lb (7,000 kg) |
| XCMG FD30T | 75% | 9.8 ft (3.0 m) | 6,614 lb (3,000 kg) |
| XCMG XCF305K | 75% | 9.8 ft (3.0 m) | 6,614 lb (3,000 kg) |
Documents
Full specifications
| Axle loading with maximum load, front/rear (simplex mast, lowest lift height) | 11020 / 1280 kg | ↗ |
| Axle loading without load, front/rear (simplex mast, lowest lift height) | 3220 / 4080 kg | ↗ |
| Fork carriage to DIN 15 173 A/B/no | 4A | ↗ |
| Fork carriage width | 46.9 in (1,190 mm) | ↗ |
| Fork dimensions (thickness, width, length) | 60 / 150 / 1220 mm | ↗ |
| Free lift (see tables) | 6.3 in (160 mm) | ↗ |
| Gradeability, with/without load | 21 / 26.4 % | ↗ |
| Ground clearance at centre of wheelbase, with load (forks lowered) | 8.9 in (227 mm) | ↗ |
| Ground clearance under mast, with load | 5.9 in (150 mm) | ↗ |
| Height to top of overhead guard | 90.4 in (2,295 mm) | ↗ |
| Height with mast extended | 180 in (4,580 mm) | ↗ |
| Height with mast lowered (see tables) | 94.5 in (2,400 mm) | ↗ |
| Length to fork face (includes fork thickness) | 130 in (3,310 mm) | ↗ |
| Lift height (see tables) | 130 in (3,300 mm) | ↗ |
| Lifting speed, with/without load | 0.53 / 0.57 m/s | ↗ |
| Load capacity | 11,023 lb (5,000 kg) | ↗ |
| Load centre distance | 23.6 in (600 mm) | ↗ |
| Load distance, axle to fork face (forks lowered) | 23.7 in (602 mm) | ↗ |
| Lowering speed, with/without load | 0.50 / 0.50 m/s | ↗ |
| Manufacturer / Type | D04EG-T | ↗ |
| Manufacturer's model designation | FD50N3 | ↗ |
| Mast tilt, forwards/backwards | 6 / 12 ° | ↗ |
| Maximum operating pressure for attachments | 191 bar | ↗ |
| Maximum torque at engine speed | 1800 rpm | ↗ |
| Minimum distance between centres of rotation | 38.2 in (971 mm) | ↗ |
| Noise level, value at operator's ear (EN 12053) | 78.5 dB(A) | ↗ |
| Number of cylinders / cubic capacity | 4 / 3330 / cm³ | ↗ |
| Oil flow for attachments | 80 L/min | ↗ |
| Operator type: pedestrian, (operator)-standing, -seated | Seated | ↗ |
| Overall length | 178 in (4,530 mm) | ↗ |
| Overall width | 1415 / 1965 mm | ↗ |
| Power source: (battery, diesel, LP gas, petrol) | Diesel | ↗ |
| Rated drawbar pull, with/without load | 24800 / 21900 N | ↗ |
| Rated output to ISO 1585 | 54.0 kW | ↗ |
| Rated speed to DIN 70 020 | 2250 rpm | ↗ |
| Seat height | 42.6 in (1,082 mm) | ↗ |
| Service brakes (mechanical /hydraulic /electric /pneumatic) | Hydraulic | ↗ |
| Tow coupling height | 15.6 in (395 mm) | ↗ |
| Towing coupling design / DIN type, ref. | Pin | ↗ |
| Track width (center of tyres), drive side | 46.3 in (1,175 mm) | ↗ |
| Track width (center of tyres), load side | 46.5 in (1,180 mm) | ↗ |
| Travel speed, with/without load | 21 / 22 km/h | ↗ |
| Truck weight without load, with maximum battery weight | 16,094 lb (7,300 kg) | ↗ |
| Turning circle radius | 114 in (2,890 mm) | ↗ |
| Type of drive control | Powershift 2 / 1 | ↗ |
| Tyre dimensions, front | 300 - 15 - 18PR | ↗ |
| Tyre dimensions, rear | 7.00 - 12 - 14PR | ↗ |
| Tyres: V=solid, L=pneumatic, SE=solid pneumatic - front/rear | L/L | ↗ |
| Wheelbase | 84.6 in (2,150 mm) | ↗ |
| Working aisle width (Ast3) with 800 × 1200 mm pallets, load lengthwise, platform up/down | 177 in (4,492 mm) | ↗ |
| Working aisle width with 1000 × 1200 mm pallets, crosswise | 185 in (4,692 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
