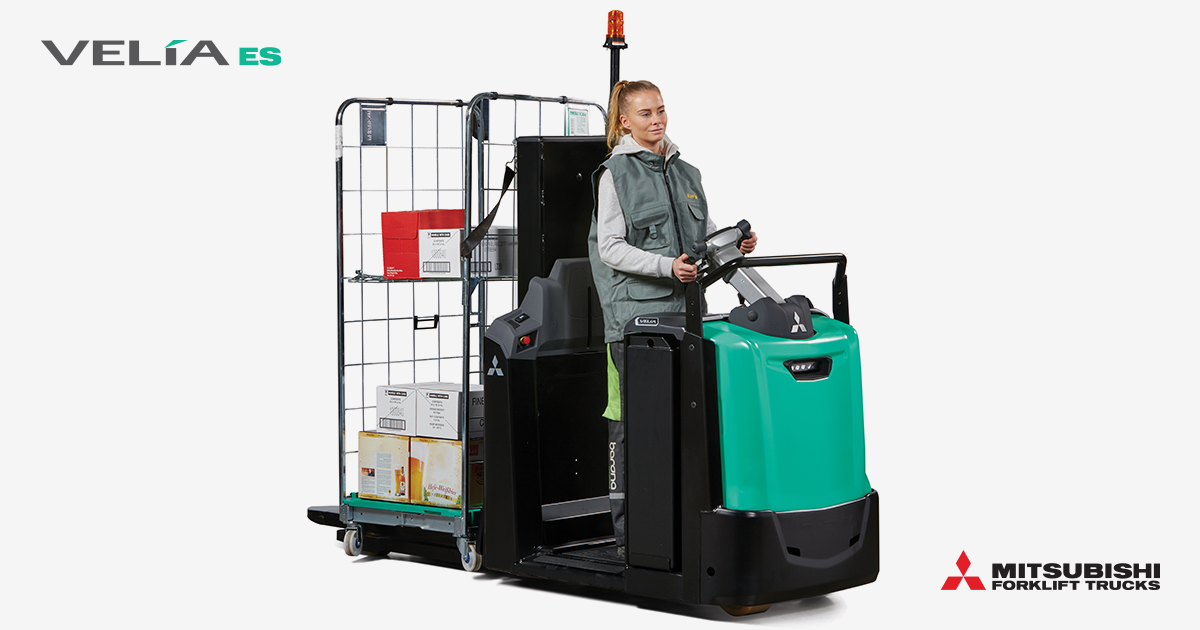

Mitsubishi
OPB12N2F
2,646 lb (1,200 kg)
Load capacity
Documents
Full specifications
| Axle loading with maximum load, front/rear (simplex mast, lowest lift height) | 972/1448 kg | ↗ |
| Axle loading without load, front/rear (simplex mast, lowest lift height) | 853/367 kg | ↗ |
| Battery voltage/capacity at 5-hour discharge | 24 / 465 - 620 V/Ah | ↗ |
| Battery weight | 783–1,087 lb (355–493 kg) | ↗ |
| Drive motor capacity (60 min. short duty) | 2.6 kW | ↗ |
| Energy consumption according to VDI 60 cycle | 0.37 kWh/h | ↗ |
| Fork dimensions (thickness, width, length) | 56 / 186 / 950 - 1450 mm | ↗ |
| Fork height, fully lowered | 3.3 in (85 mm) | ↗ |
| Gradeability, with/without load | 7 / 15 % | ↗ |
| Ground clearance at centre of wheelbase, with load (forks lowered) | 1.0 in (25 mm) | ↗ |
| Height with mast extended | 1275 / 1625 mm | ↗ |
| Height with mast lowered (see tables) | 46.2 in (1,173 mm) | ↗ |
| Length to fork face (includes fork thickness) | 1321 5)</sup mm | ↗ |
| Level of noise at the ear level of the driver according to EN 12 053:2001 and EN ISO 487, drive/lift/idle LpAZ | < 2.5 dB(A) | ↗ |
| Level of noise at the ear level of the driver according to EN 12 053:2001 and EN ISO 4871 in work LpAZ | 0.6 dB(A) | ↗ |
| Lift height (see tables) | 765 / 1115 mm | ↗ |
| Lift motor output at 15% duty factor | 2.2 kW | ↗ |
| Lifting speed, with/without load | 0.20 / 0.41 m/s | ↗ |
| Load capacity | 2,646 lb (1,200 kg) | ↗ |
| Load centre distance | 23.6 in (600 mm) | ↗ |
| Load distance, axle to fork face (forks lowered) | 30.9 in (785 mm) | ↗ |
| Lowering speed, with/without load | 0.30 / 0.36 m/s | ↗ |
| Manufacturer's model designation | OPB12N2F | ↗ |
| Noise level, value at operator's ear (EN 12053) | 73 / 62 / - 3) dB(A) | ↗ |
| Number of wheels, front/rear (x=driven) | ø180 × 65 | ↗ |
| Operator type: pedestrian, (operator)-standing, -seated | Stand-on | ↗ |
| Outside width over forks (minimum/maximum) | 540 / 570 mm | ↗ |
| Overall length | 2471 5) mm | ↗ |
| Overall width | 31.5 in (800 mm) | ↗ |
| Power source: (battery, diesel, LP gas, petrol) | Battery | ↗ |
| Seat height | 4.8 in (123 mm) | ↗ |
| Service brakes (mechanical /hydraulic /electric /pneumatic) | Electric | ↗ |
| Sound pressure level at the driver's seat | 62 3) dB (A) | ↗ |
| Track width (center of tyres), drive side | 19.4 in (494 mm) | ↗ |
| Track width (center of tyres), load side | 14.0 in (355 mm) | ↗ |
| Travel speed, with/without load | 9.0 / 9.0 (opt 9 / 13) 7) km/h | ↗ |
| Truck weight without load, with maximum battery weight | 1220 2) kg | ↗ |
| Turning circle radius | 2106 5) mm | ↗ |
| Type of drive control | Stepless | ↗ |
| Tyre dimensions, front | ø250 | ↗ |
| Tyre dimensions, rear | ø85 | ↗ |
| Tyres: V=solid, L=pneumatic, SE=solid pneumatic - front/rear | Vul / Vul | ↗ |
| Wheelbase | 1929 5) mm | ↗ |
| Working aisle width (Ast) with 800 × 1200 mm pallets, load lengthwise, platform up/down | 2881 5) mm | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
